65PERIODIC SERVICE
BChecking Engine Oil Level
To avoid personal injury or death:
A Be sure to stop the engine before checking the
oil level.
1. Park the machine on a flat surface.
2. Check engine oil before starting the engine or 5
minutes or more after the engine has stopped.
3. To check the oil level, draw out the dipstick, wipe it
clean, replace it, and draw it out again. Check to see
that the oil level lies within the crosshatched area.
If the level is too low, add new oil to the prescribed
level at the oil inlet.
(See "LUBRICANTS" in "MAINTENANCE" section.)
A When using an oil of different maker or viscosity from
the previous one, remove all of the old oil.
Never mix two different types of oil.
A If oil level is low, do not run engine.
BChecking Transmission Fluid Level
1. Park the machine on a flat surface, lower the
implement and shut off engine.
2. To check the oil level, draw out the dipstick, wipe it
clean, replace it, and draw it out again. Check to see
that the oil level lies within the crosshatched area.
If the level is too low, add new oil to the prescribed
level at the oil inlet.
(See "LUBRICANTS" in "MAINTENANCE" section.)
A If oil level is low, do not run engine.

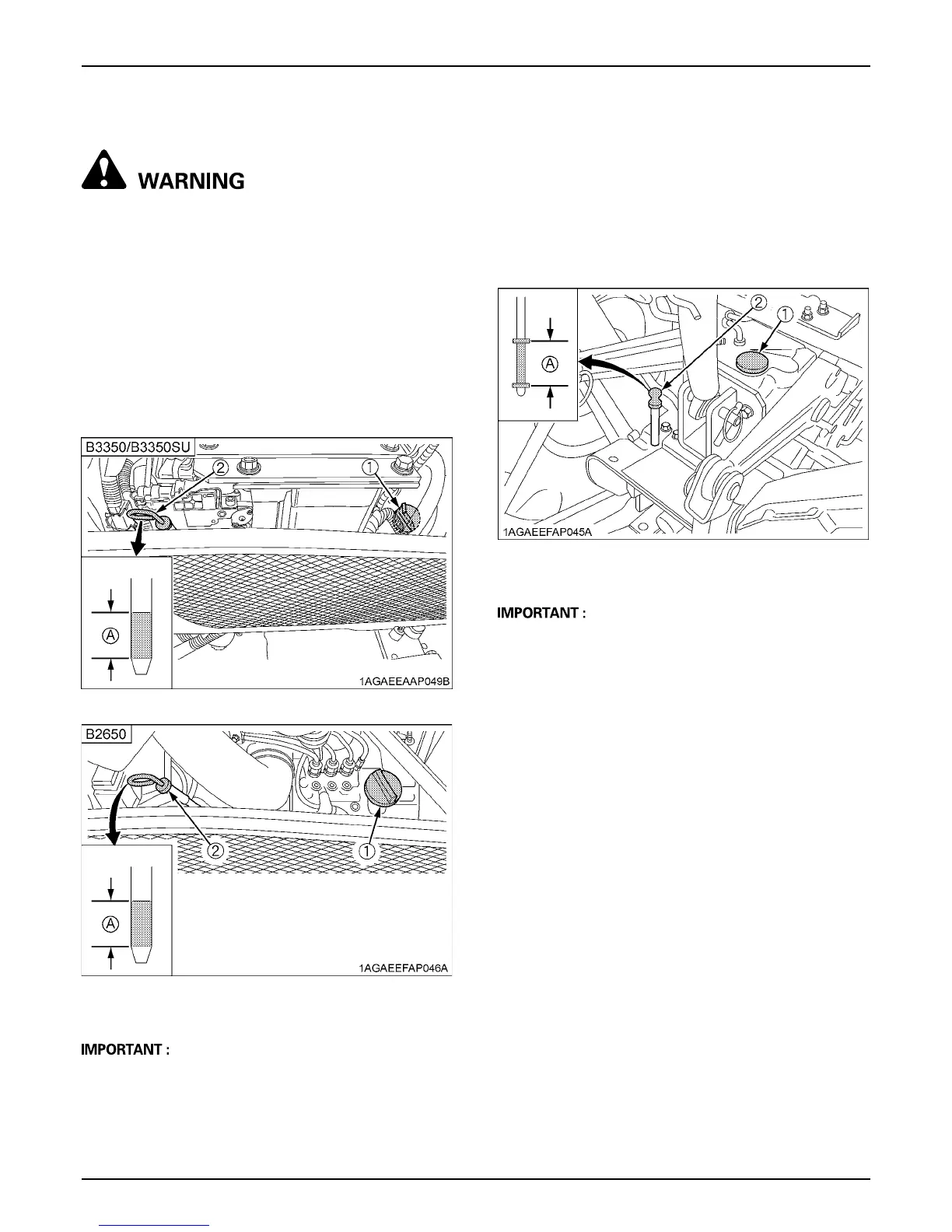

(1) Oil inlet
(2) Dipstick
(A) Oil level is acceptable within this range.
(1) Oil inlet
(2) Dipstick
(A) Oil level is acceptable within this range.
