8 INSTRUMENT PANEL AND CONTROLS
ENGLISH
B Foot and Hand Controls

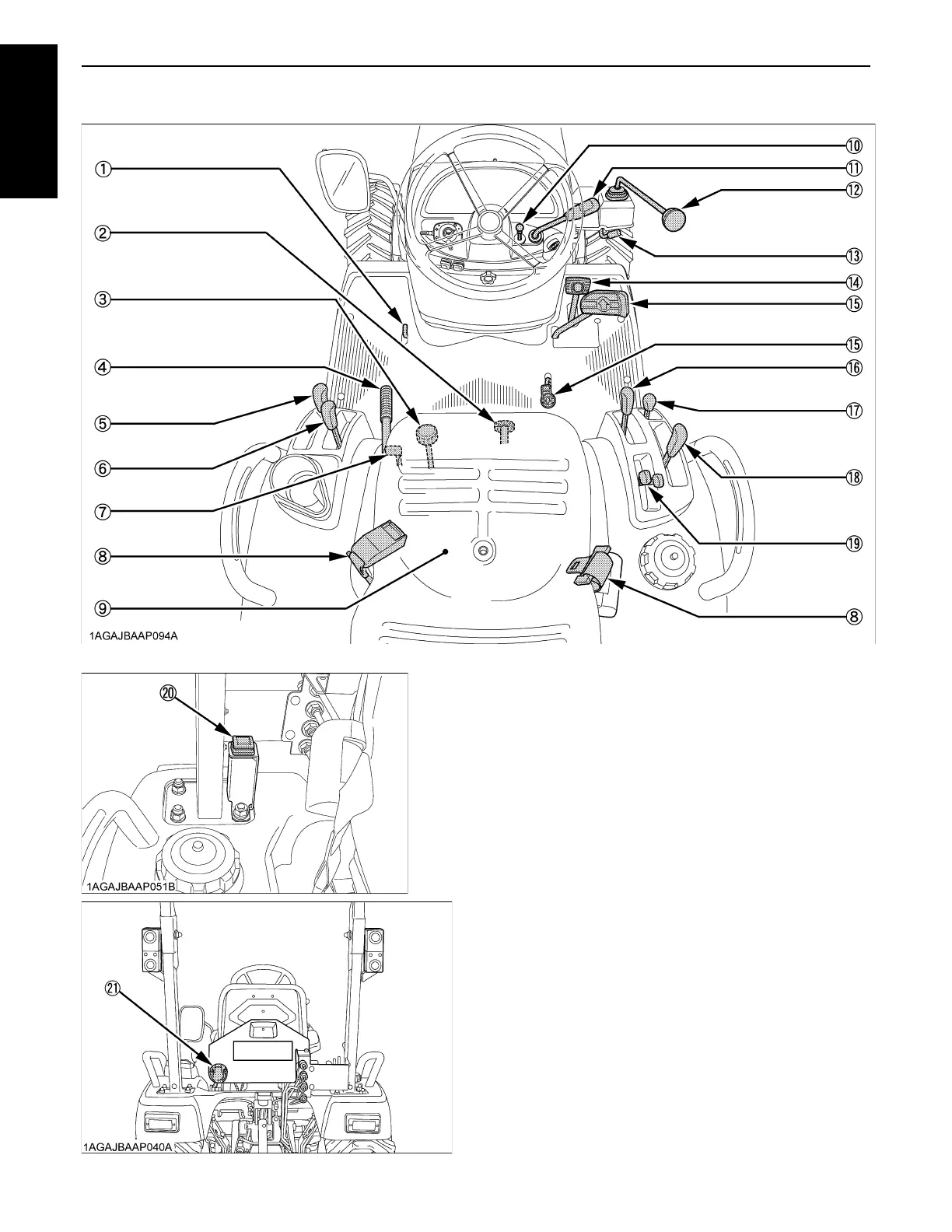

ILLUSTRATED CONTENTS
(1) Parking brake lock pedal.................................. 10,18,20,24
(2) 3-point hitch lowering speed knob................... 32
(3) Cutting height control dial................................ 34
(4) Emergency hand brake lever........................... 18
(5) PTO select lever.............................................. 27
(6) PTO clutch lever.............................................. 10,28
(7) Differential lock pedal...................................... 25
(8) Seat belt.......................................................... 15
(9) Operator's seat................................................ 14
(10)Speed set rod.................................................. 21
(11)Hand throttle lever........................................... 10,20
(12)Auxiliary hydraulic control lever (if equipped).. 36
(13)Lock lever (if equipped)................................... 10,36
(14)Brake pedal..................................................... 10,18,20,24
(15)Speed control pedal........................................ 10,20
(16)Hydraulic control lever..................................... 10,32,34
(17)Front wheel drive lever.................................... 19
(18)Range gear shift lever (Hi-Lo).......................... 10,19
(19)Remote control valve lever.............................. 33
(20)Beacon light switch......................................... 17
(21)Trailer electrical outlet..................................... 26
