27WIRING DIAGRAMS
ENGLISH

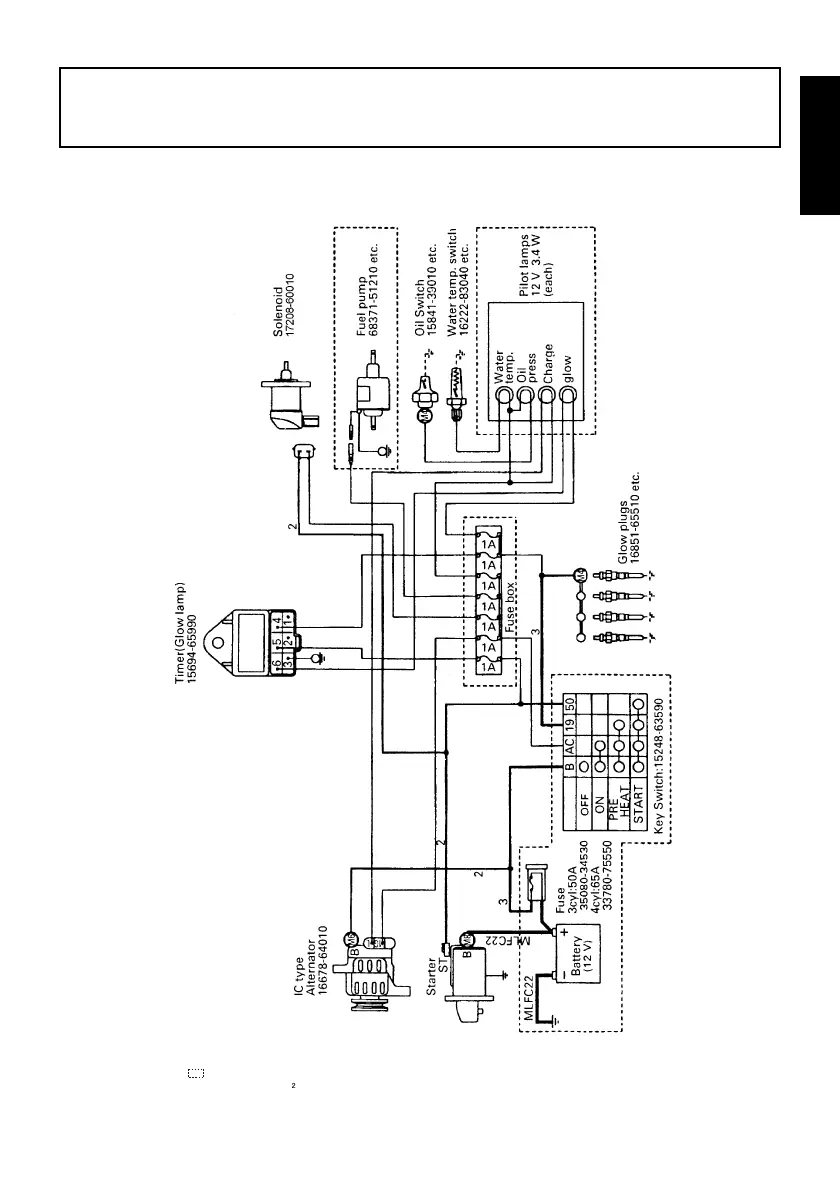

WIRING DIAGRAMS
EU standard
(Energize to run)
The parts boxed in are reference, NOT equiped for standard engine spec.
Non marked wire dia. is 0.8~1.25 mm .
