Kubota F Series User Manual

REF. NO. KUBOTA P/N CODE NO. QTY. DESCRIPTION
1 77700-05419 KF2-03 1 WINDSHIELD SUPPORT W/ CONSOLE
2 77700-05451 9PWA4A1-A 1 WIPER MOTOR ASSEMBLY
3 77700-05258 FP-01 1 GANGED FUSE BLOCK, 6 POSITION, ATC STYLE
4 77700-05438 KF2-DWH 2 WIRE HARNESS, DOUBLE
5 77700-05443 KF2-NWH 1 WIRE HARNESS, DOME LIGHT
6 70000-01318 OHC-1 2 AXIAL FAN. 80mm X 80mm X 38mm
7 70000-01156 OHC-5 2 SWITCH, SINGLE POSITION
8 70000-01157 OHC-6 1 SWITCH, DOUBLE POSITION HIGH & LOW
9 70000-01218 9PCD1-A 1 SWITCH COVER (FAN)
10 70000-01220 9PCD1-C 1 SWITCH COVER (WORK LIGHT)
11 70000-01221 9PCD1-D 1 SWITCH COVER (WIPER)
12 77700-05153 9HV2-01 4 SWITCH PANEL PLUG
13 77700-05420 KF2-04 1 CONSOLE PANEL (WITHOUT DOME LIGHT)
14 77700-05482 SM-KF2CONFC 1 FUSE COVER
14a 77700-13567 70-77-0033 1 KNURLED HEAD THUMB SCREW, PLASTIC, 1/4-20 X 1/2” LONG
15 77700-01877 9DL-173 1 DECAL, NOISE WARNING
16 77700-05170 9LEDDL-SA 2 LED SWIVEL DOME LIGHT W/ TERMINALS
17 77700-05456 9HR0080 2 VENT, 2” ROUND 360 DEG
18 77700-05455 9HR0081 2 2” VENT RETAINING RING
19 70000-01045 9PR20 1 1/2” WEATHER SEAL RUBBER (55”)
20 77700-01048 9PRO2 1 5/8” BULB RUBBER (170”)

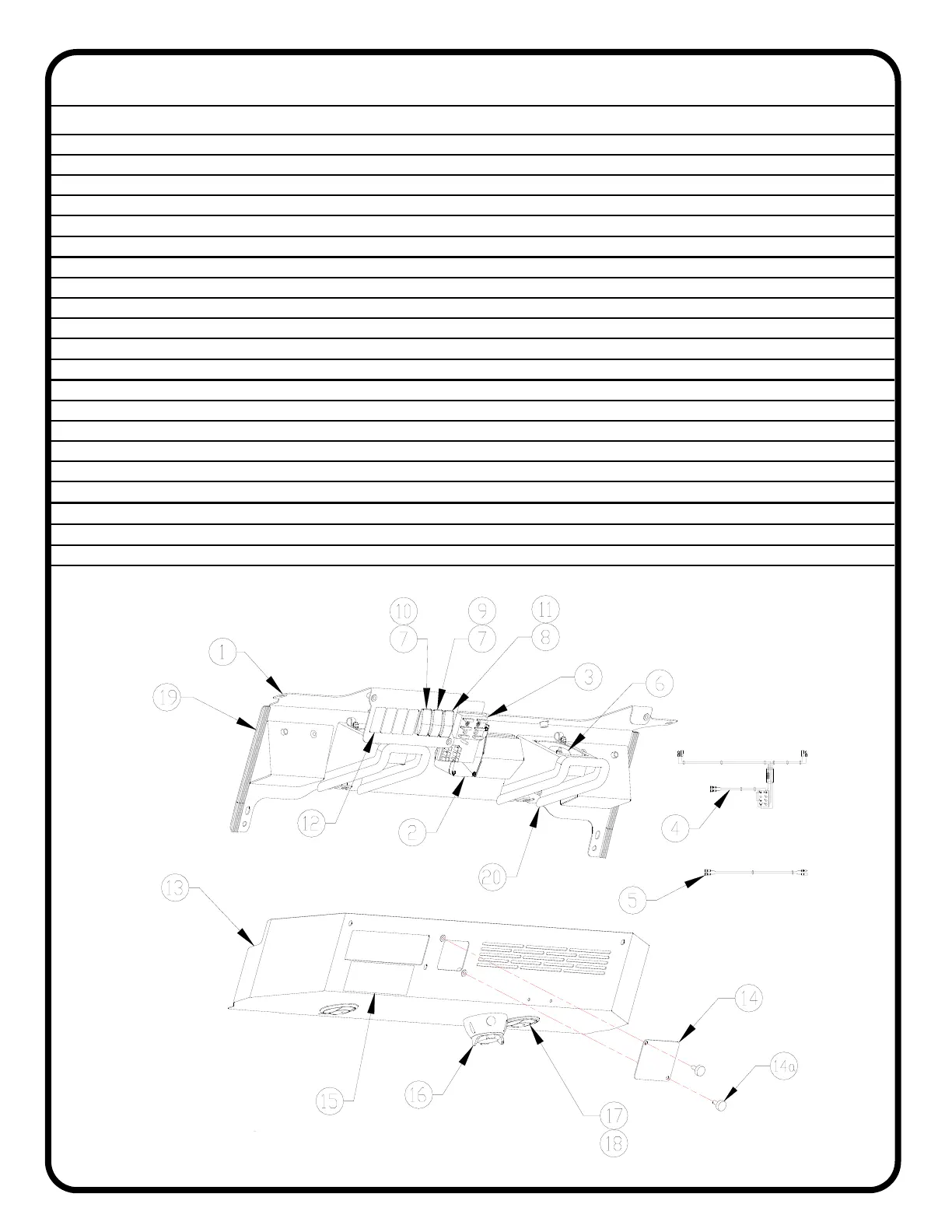

F5206 F-SERIES CAB
SERVICE PARTS - WINDSHIELD SUPPORT AND CONSOLE
NOTE: See page 6 for wire diagrams.
P. 12 of 14

Kubota F Series Specifications

General

Engine Type	Diesel
Hydraulic System	Open Center
Transmission	Hydrostatic
Drive System	4WD
Deck Size Options	72"
Displacement	68.5 cu in (1.123 L)
