G
1700·G
1800·G
1900·G2000
WSM,
10830
5.1

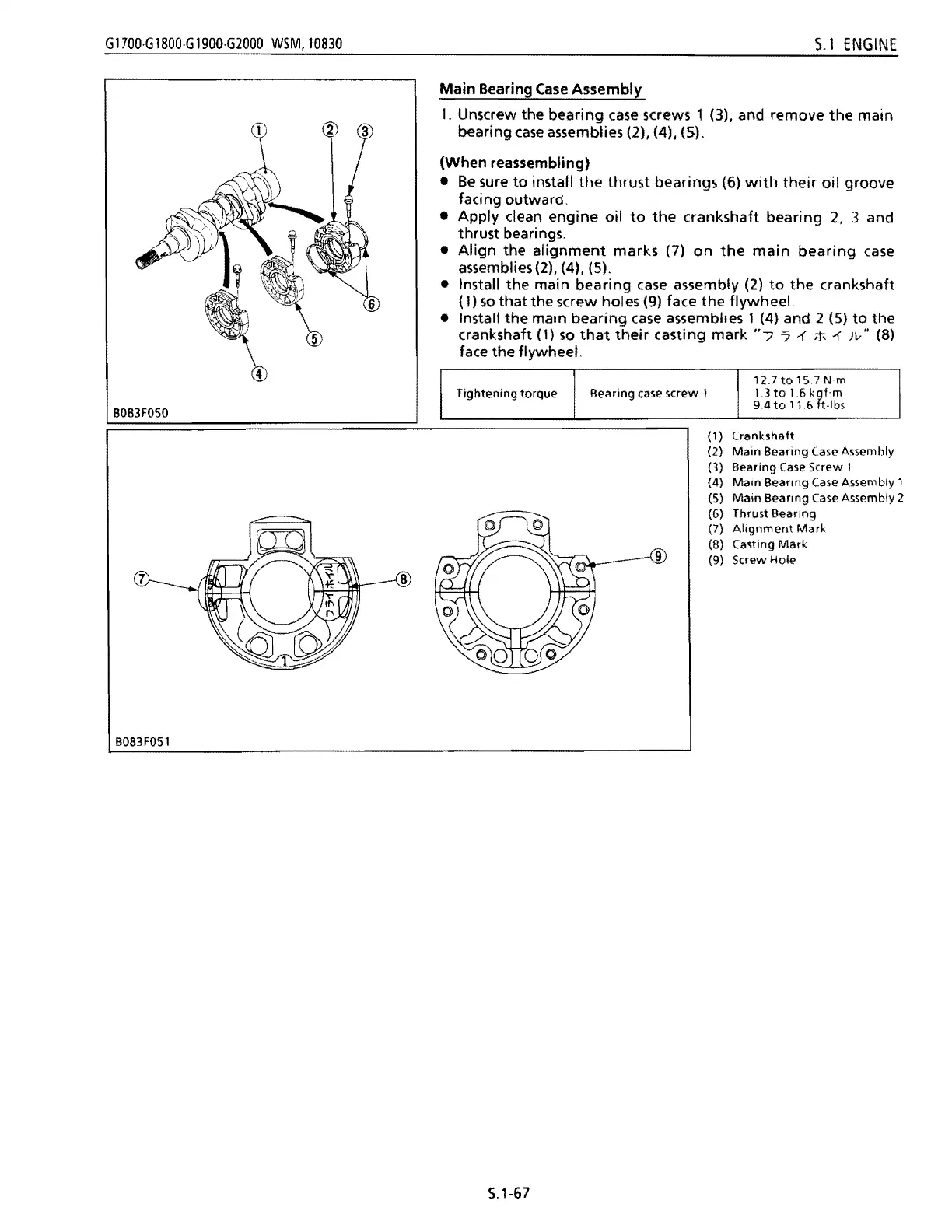

ENGINE
Main
Bearing
Case
Assembly
1.
Unscrew the
bearing
case
screws 1 (3)' and
remove
the
main
bearing
case
assemblies (2), (4), (5).
(When reassembling)
Be
sure
to
install
the
thrust
bearings
(6)
with
their
oil
groove
facing
outward.
Apply
clean
engine
oil
to
the
crankshaft
bearing
2,
3 and
thrust
bearings.
Align
the
alignment
marks
(7)
on
the
main
bearing
case
assemblies (2). (4), (5).
Install
the
main
bearing
case
assembly (2)
to
the
crankshaft
(1)
so
that
the
screw holes (9) face
the
flywheel.
Install
the
main
bearing
case assemblies 1 (4) and 2 (5)
to
the
crankshaft (1)
so
that
their
casting
mark
"7
7
l'
*'
l'
)1./'
(8)
face
the
flywheel.
BOB3F050
Tightening
torque
Bearing
case
screw
1
12.7to15.7N·m
1.3
to
1.6
kgf·m
94
to
11.6
ft-Ibs
(1)
Crankshaft
(2)
Main
Bearing
Case Assembly
(3)
Bearing
Case
Screw
1
(4)
Main
Beanng
Case Assembly 1
(5)
Main
Seanng
Case Assembly 2
(6)
Thrust
Beanng
(7)
Alignment
Mark
(8) Casting
Mark
(9)
Screw
Hole
B083F051
5.1-67
