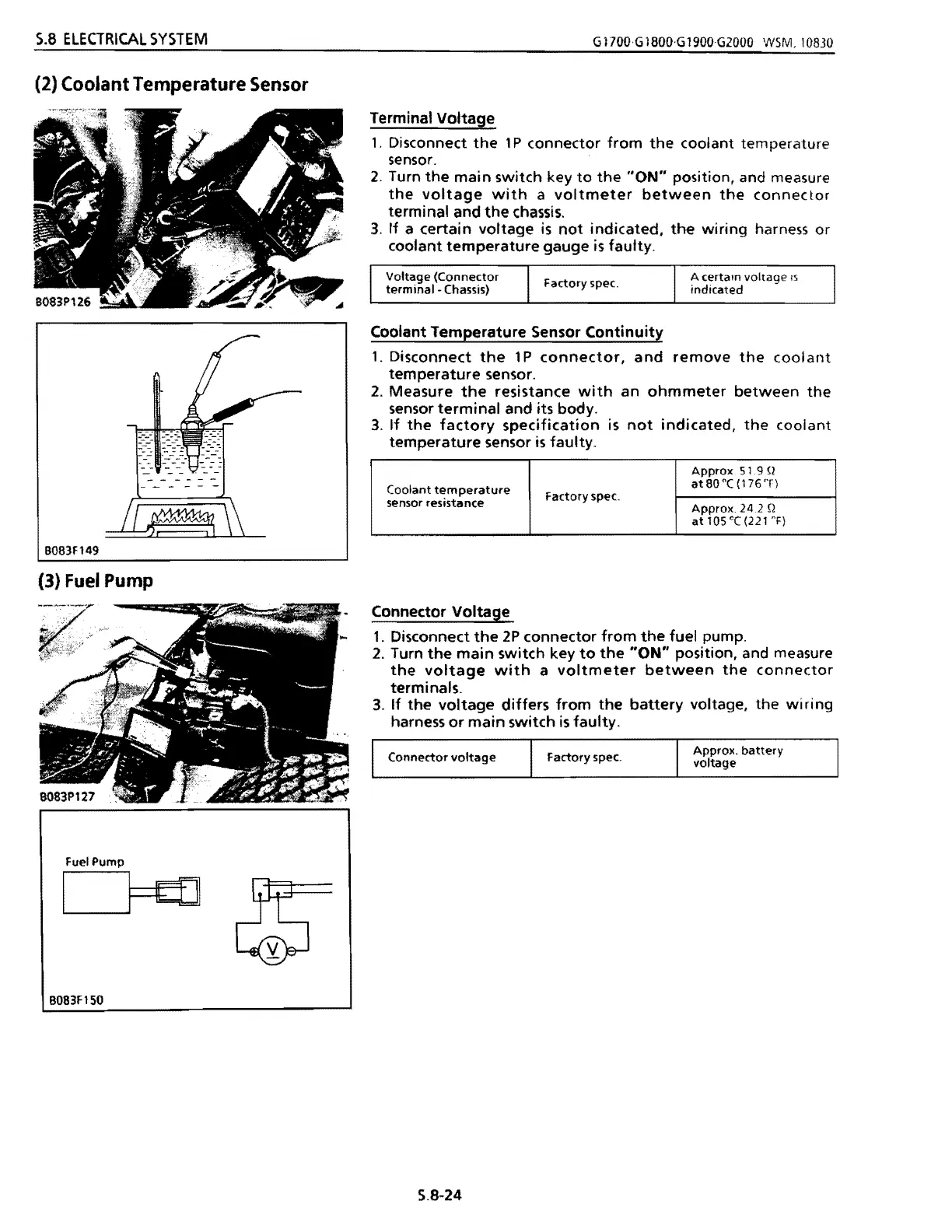

S.8 ELECTRICAL SYSTEM
GJ700GJ800,G1900G2000 WSM,10830
(2) Coolant Temperature Sensor
B083f149
(3) Fuel Pump
Terminal Voltage
1. Disconnect the 1 P connector from the coolant temperature
sensor.
2. Turn the main switch key to the "ON" position, and measure
the voltage with a voltmeter between the connector
terminal and the chassis.
3. If a certain voltage is not indicated. the wiring harness or
coolant temperature gauge is faulty.
Voltage (Connector A certam voltage IS
Factory spec.
terminal - Chassis)
indicated
Coolant Temperature Sensor Continuity
1. Disconnect the 1 P connector, and remove the coolant
temperature sensor.
2. Measure the resistance with an ohmmeter between the
sensor terminal and its body.
3. If the factory specification is not indicated, the coolant
temperature sensor is faulty.
Coolant temperature
sensor resistance
Factory spec.
Approx 51.9 n
at 80 °C (176 'T)
Approx, 24.2 n
at 105 ec (221 "F)
Connector Voltage
1. Disconnect the 2P connector from the fuel pump.
2. Turn the main switch key to the "ON" position, and measure
the voltage with a voltmeter between the connector
terminals.
3. If the voltage differs from the battery voltage. the wiring
harness or main switch is faulty.
Approx. battery
Connector voltage factory spec.
voltage
fuel Pump
f=t:rJ1
B083f150
5.8-24
338
