S.5 STEERING
G1700·G1800·G1900·G2000 WSM,10832

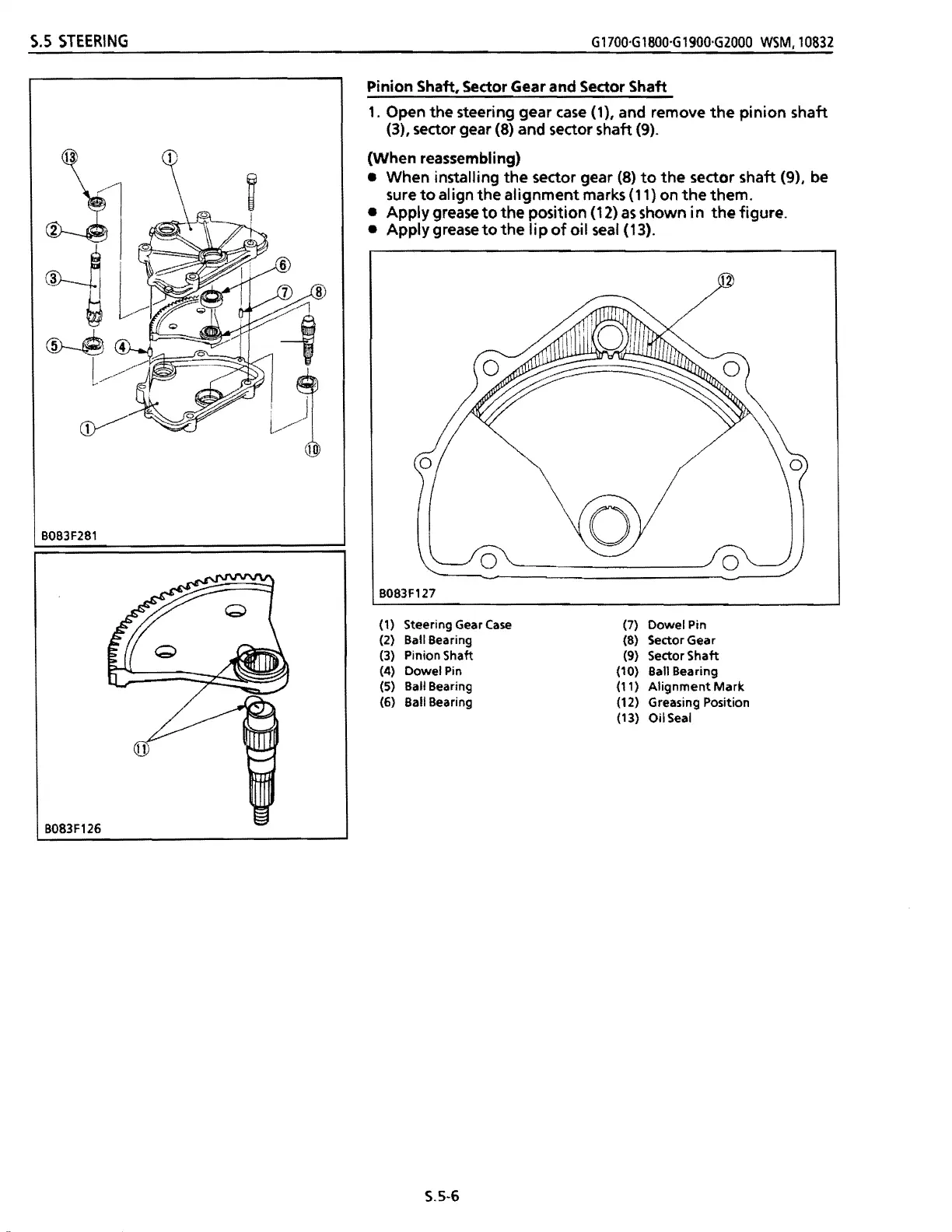

Pinion Shaft. Sedor Gear and Sedor Shaft
1. Open the steering gear case (1), and remove the pinion shaft
(3), sector gear (8) and sector shaft (9).
(When reassembling)
•
When installing the sector gear (8) to the sector shaft (9), be
sure
to align the alignment marks (11) on the them.
• Apply grease to the position (12) as shown in the figure.
•
Apply grease to the lipofoil seal (13).
B083F281
(1) SteeringGearCase (7) Dowel Pin
(2) Ball Bearing
(8) Sector Gear
(3) Pinion Shaft
(9) Sector
Shaft
(4)
Dowel
Pin
(10) Ball Bearing
(5) Ball Bearing
(11)
Alignment Mark
(6) Ball Bearing
(12) Greasing Position
(13) Oil
Seal
B083F126
B083F127
5.5-6
288

Kubota G1700 4WS Specifications

General

Type	Lawn Tractor
Engine Model	Kubota D662
Transmission Type	Hydrostatic
Drive Type	4WD
Steering	4-wheel steering
Tire Size (Rear)	23x10.50-12
Engine Type	Diesel, liquid-cooled, 3-cylinder
Width	107 cm
