144
ENGLISH
GREASING
3
CAUTION
To avoid personal injury:
¡¡
¡¡
¡ Be sure to stop the engine and remove
the key before greasing.

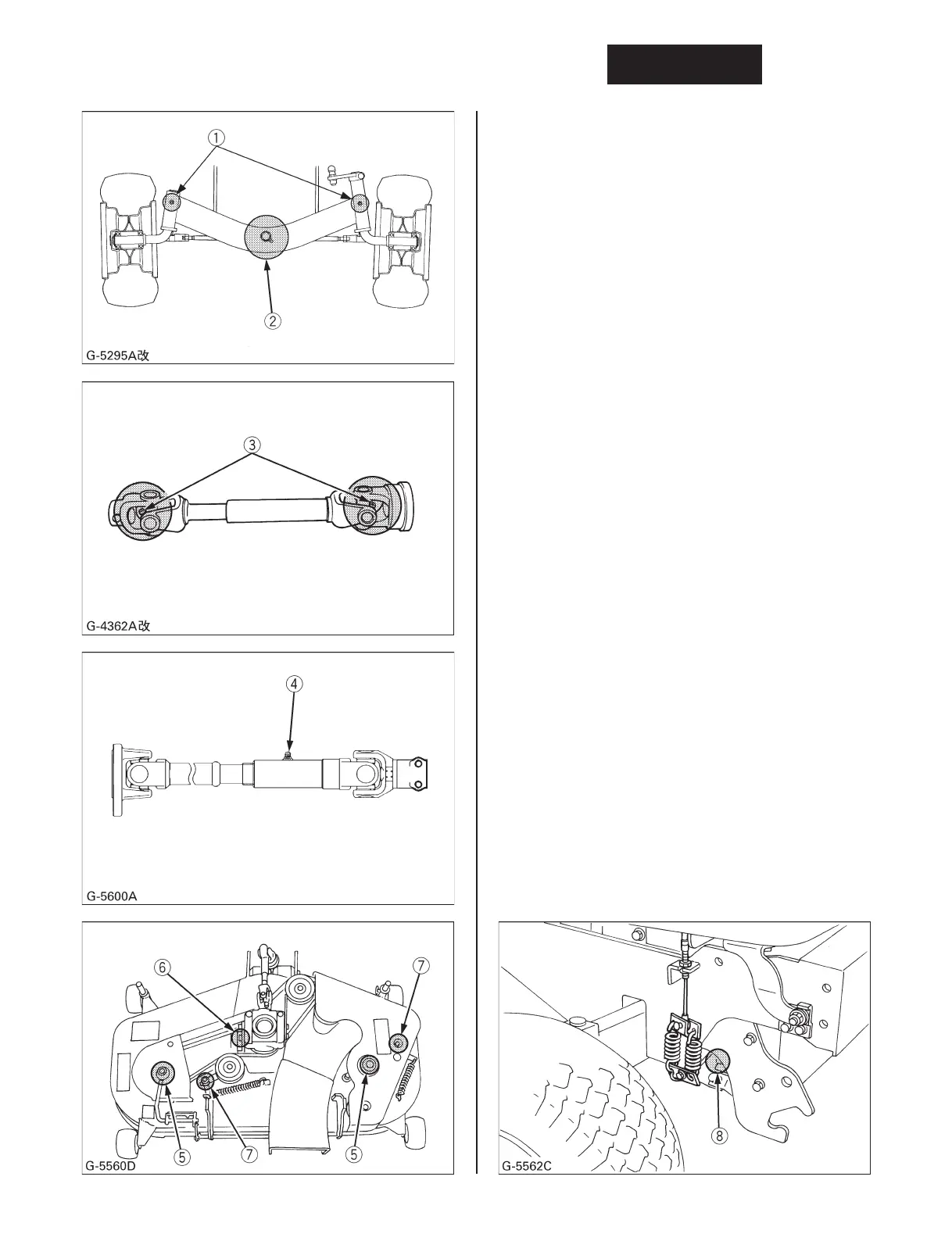

Grease the following grease fittings.
(1) King pin
(2) Center pin
(3) Mower universal joint
(4) Machine universal joint
(5) Side blade shaft (LH & RH)
(6) Center blade shaft
(7) Mower tension arm
(8) Tension lever
NOTE:
¡ Make sure none of grease is placed on the brake
shoe.
To Next Page
