Kubota G21 - Grass Catcher Mounting; Attaching the Grass Catcher

66
ENGLISH
ATTACHING THE GRASS CATCHER
3
CAUTION
To avoid personal injury:
¡¡
¡¡
¡ Shut off the engine and remove the key
before attaching the grass catcher.
GRASS CATCHER
MOUNTING

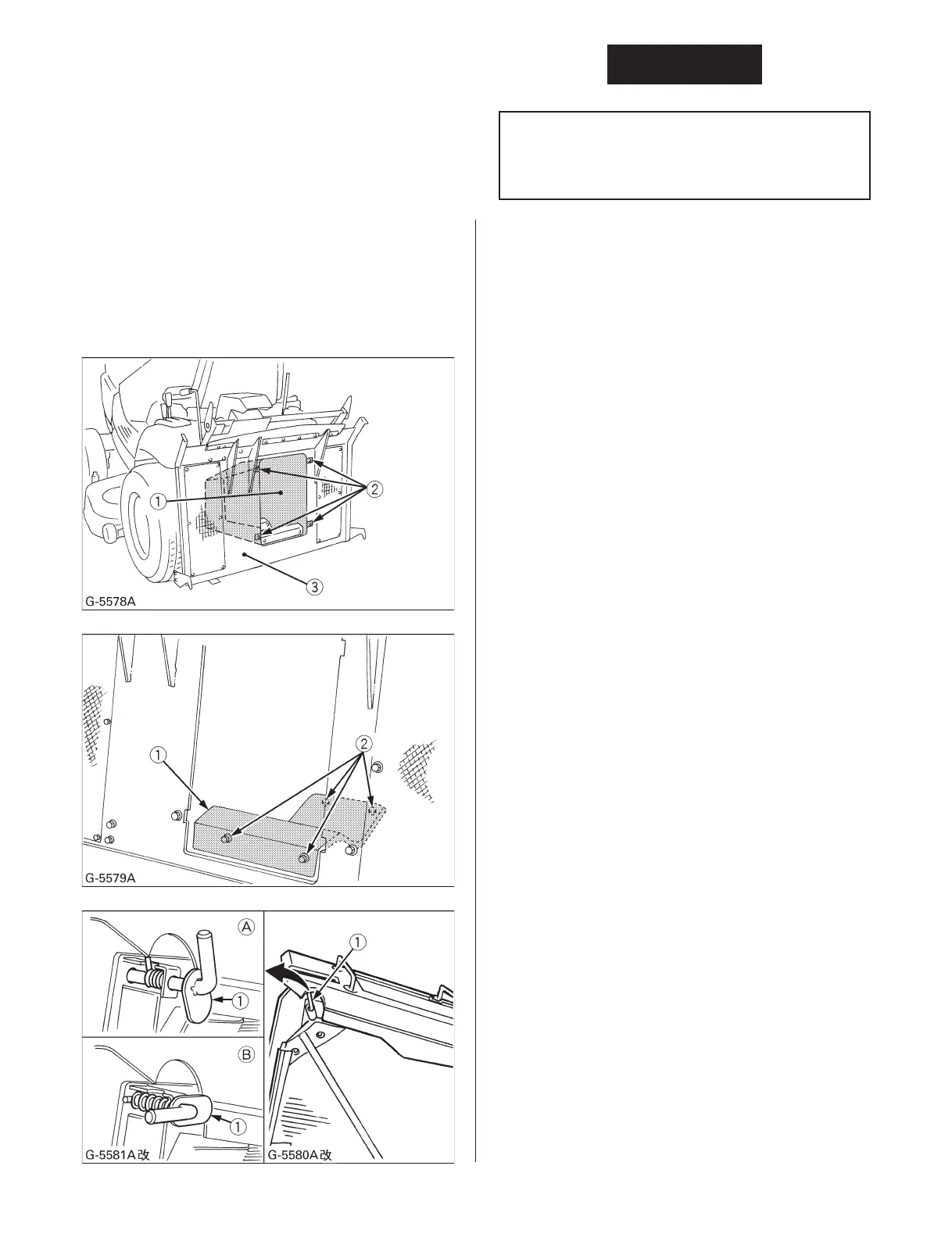

쏋 Attaching the discharge duct
1. Park the machine on level ground, shut off the
engine and remove the key.
2. Set the cutting height for about 1 inch, and then
lower the mower deck to the lowest position.
3. Insert the discharge duct from the platform side
and secure with 4–M8 bolts.
(1) Discharge duct
(2) 4–M8 bolts
(3) Platform
쏋 Attaching the discharging plate
Atach the discharging plate using 4–M6 bolts.
(1) Discharging plate
(2) 4–M6 bolts
쏋 Mounting the container
1. Park the machine on level ground, shut off the
engine and remove the key.
2. Pull and turn the L pin so that the spring pin can
lock on the cut-out. Do the same on the opposite
side.
(1) L Pin (A) “LOCK”
(B) “UNLOCK”
