64
ENGLISH
7. Remove the snap ring, plain washer and clevis
pin. Adjust the lift link length so that the difference
between measurements (L) and (R) is less than
3mm.
8. Reinstall the snap ring, plain washer and clevis
pin.

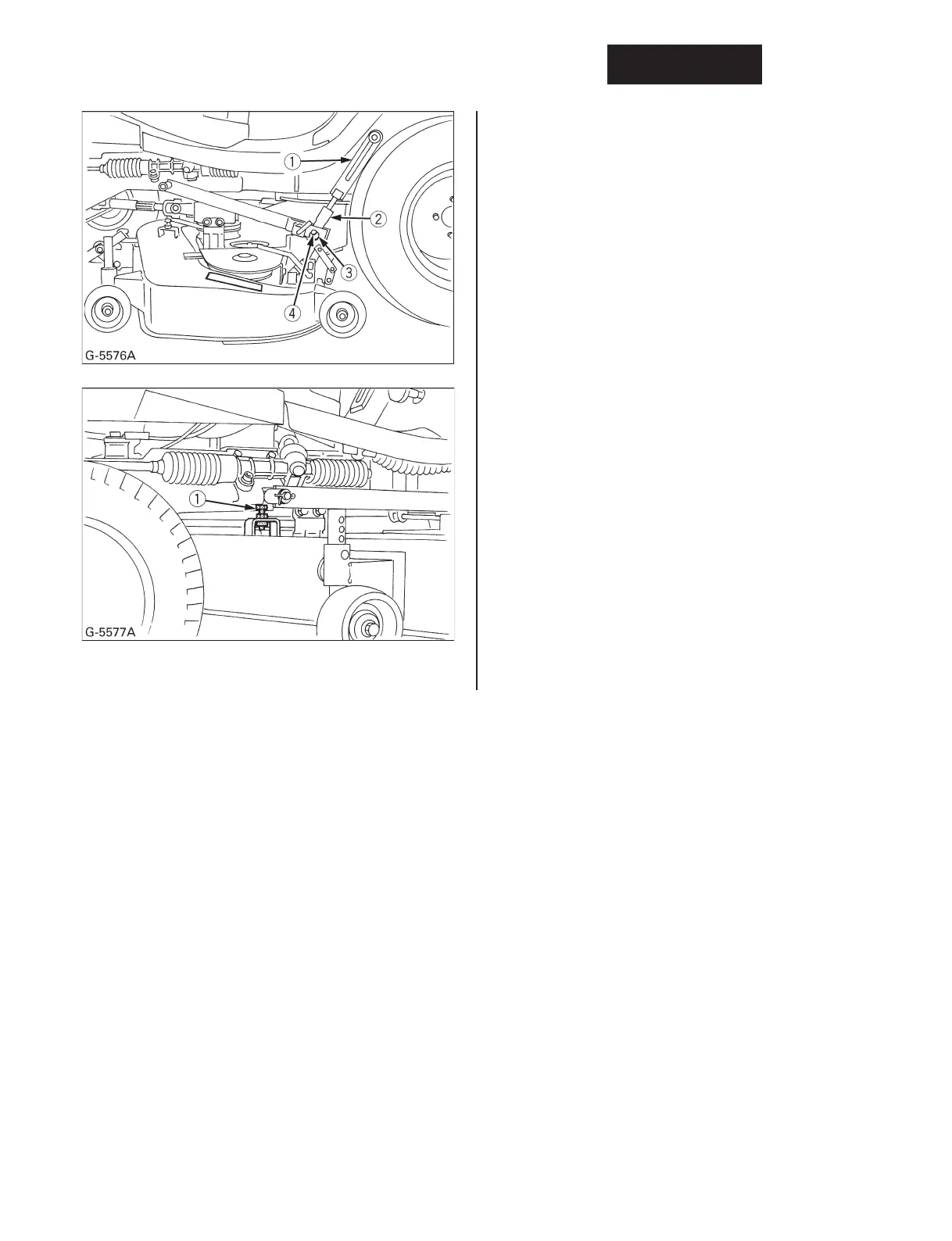

(1) Lift link (Upper)
(2) Lift link (Lower)
(3) Snap ring
(4) Clevis pin
ADJUSTING THE MOWER LIFTUP
STOPPER
The mower liftup stopper is designed for maintaining
the balance of the mower deck, when lifting the
mower to the highest position. Make sure that the
stopper is in contact with underside of frame.
To adjust:
1. Lift the mower to the highest position.
2. Loosen the lock nut and adjust the stopper so that
the bolt head is in contact with the underside of
the frame.
3. Lower the mower deck.
4. Turn the stopper counterclockwise a half turn,
then secure the lock nut.
(1) Mower liftup stopper
