쏋 Replacing Fuses
Replacement of the fuse
1. Open hood.
2. Remove the blown fuse.
3. Place a new 10A or 15A or 30A fuse in position.

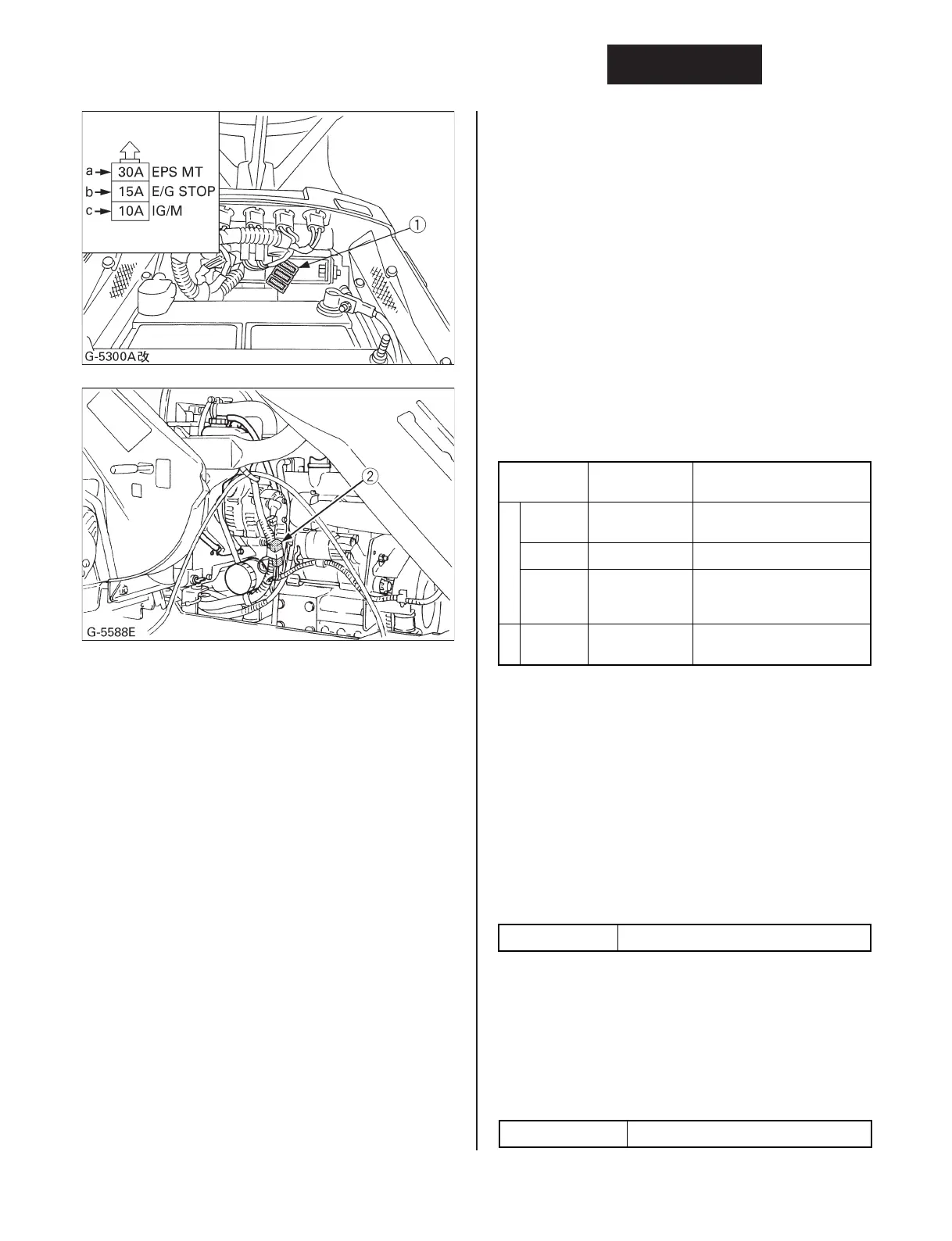

(1) Fuse location
(2) Slow blow fuse
IMPORTANT:
¡ If the new fuse happens to blow out within a short
time, contact your dealer for inspection and repair.
Never “jump” the fuse with wire or foil, etc.
a : Stamp or stick label “EPS MT”
b : Stamp or stick label “E/G STOP”
c : Stamp or stick label “IG/M”
쏆 Protected circuit
FUSE NO.
(ID LABEL)
EPS MT
––
w
q
30
15
Electric power steering
Moter circuit
Check circuit against
wrong battery connection
Fuel pump, Head light
Power steering control
unit,etc
E/G STOP
Slow blow fuse
40
Engine stop timer relay
10IG/M
CAPACITY
(A)
Protected circuit
쏋 Replacing bulbs
(A) Replacement of the headlight bulb
1. Open hood.
2. Turn bulb socket to remove socket from headlight
housing.
3. Push bulb down and turn one quarter turn to
remove bulb from the socket.
4. Install new bulb to the socket.
5. Install the socket in housing.
6. Close hood.
(B) Replacement of the Indicator light bulb
1. Open hood.
2. Turn bad bulb socket to the left.
And remove it.
3. Pull bulb from the socket.
4. Push new bulb into the socket.
5. Install the socket.
6. Close hood.
Headlight bulb 12.8 Rated Voltage/1.04 AMP/15 MSCP
Indicator light bulb 14.0 Rated Voltage/0.27 AMP/2 MSCP
