160
ENGLISH
7. Before checking or replacing the blade, wipe
grass and mud off the top and inside of the
mower. Especially clean up the inside of the belt
cover, because otherwise the belt life will be
reduced.

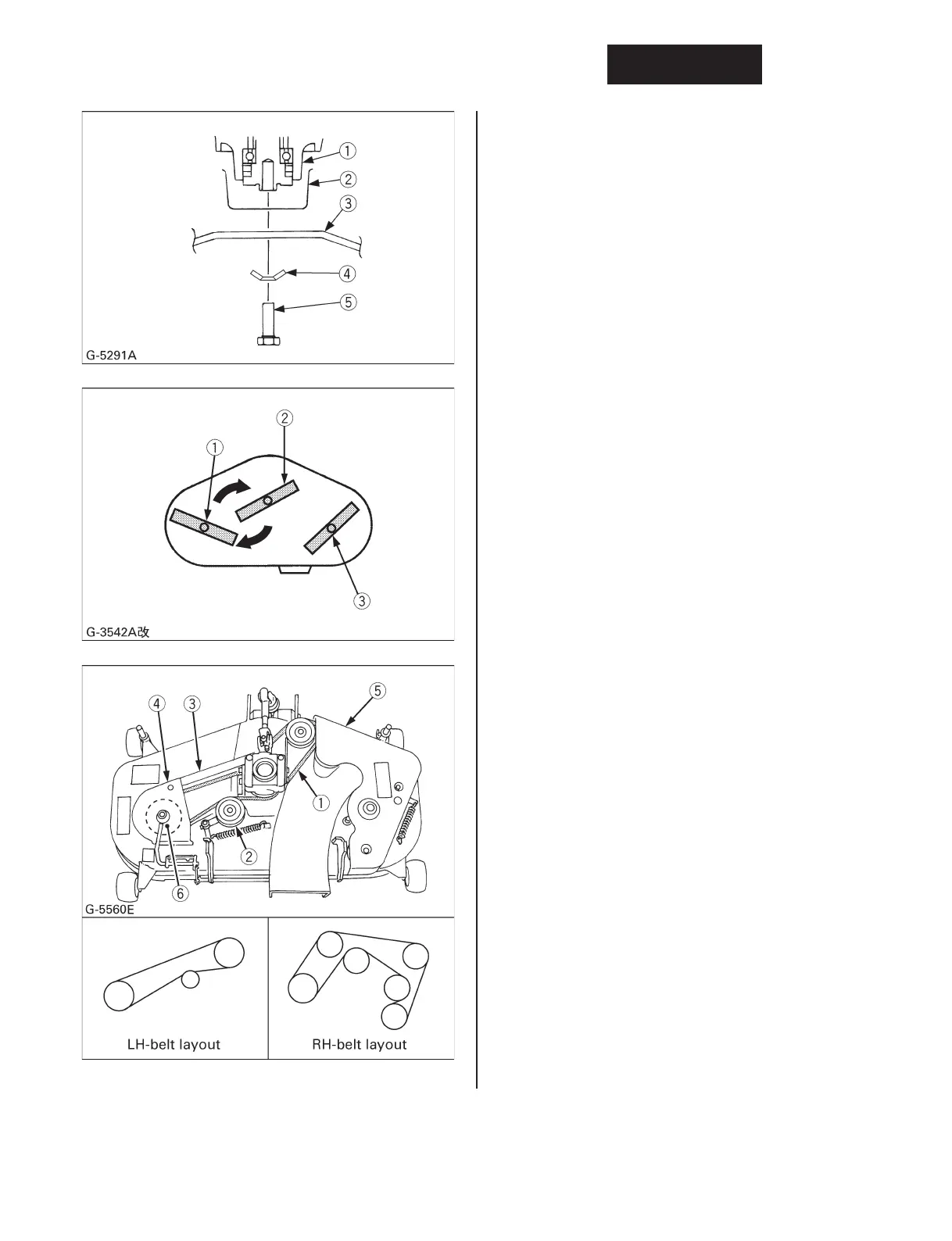

(1) Spindle holder
(2) Cover
(3) Blade
(4) Spring plate
(5) Bolt
IMPORTANT:
¡ Tighten the bolts of the outer blades from 103 to
118 N·m of torque.
¡ To prolong the service life of the blade, reposition
to each other (q, w) as shown.
(1) LH blade
(2) Center blade
(3) RH blade (No reposition)
MOWER BELT
쏋 Replacing
1. Remove the mower deck from the machine
according to the procedure “ATTACHING THE
MOWER”.
2. Remove the left and right hand shield from the
mower deck.
3. Clean around the pulleys to remove the belt from
the pulleys. Slip the belt over the top of the left
side pulley.
4. To install a new belt, reverse the above
procedure.
NOTE:
¡ Tighten cover bolts securely.
(1) RH-belt
(2) Tension pulley
(3) LH-belt
(4) Left hand shield
(5) Right hand shield
(6) Left side pulley
