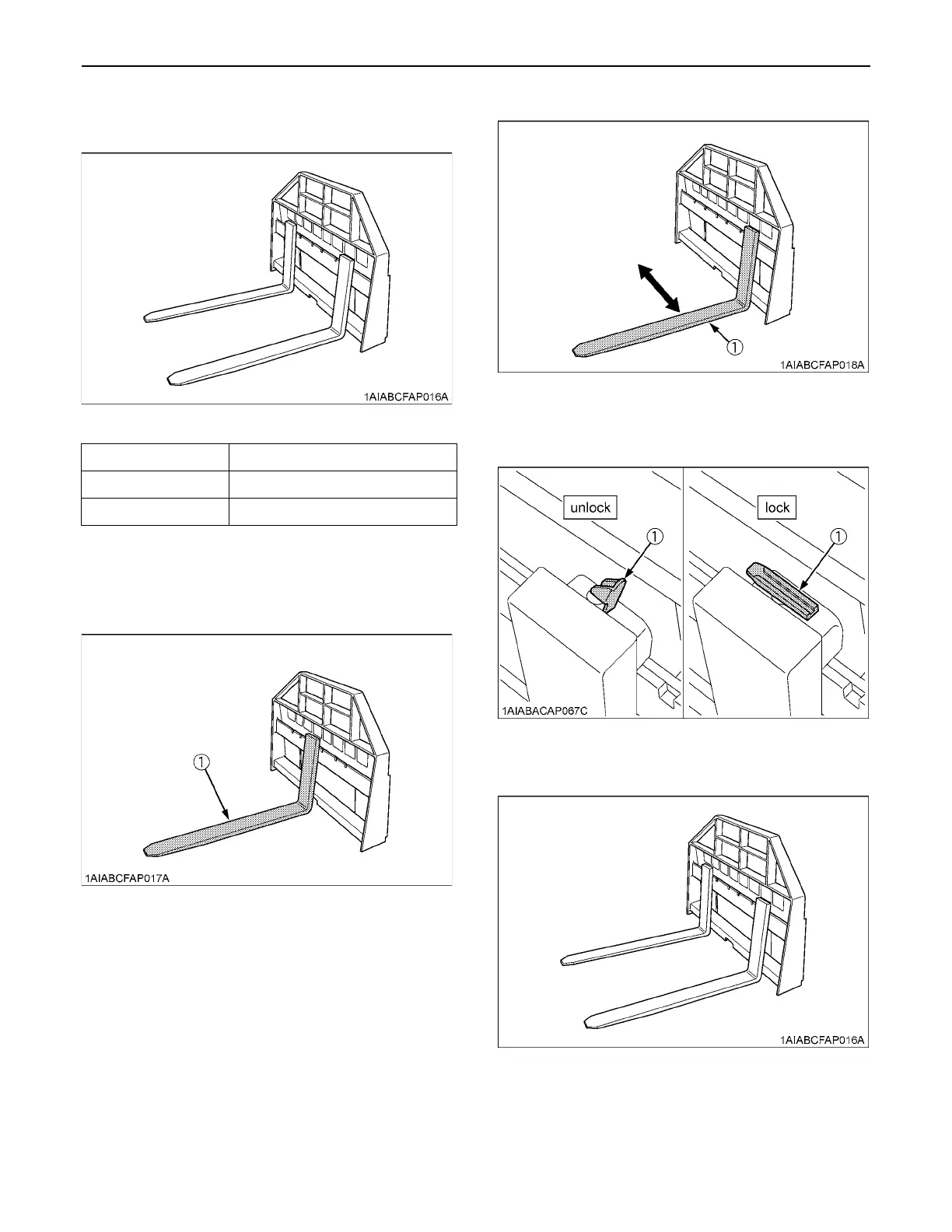

31OPERATING THE LOADER
BPallet fork
ASSEMBLE PALLET FORK
1. Install the fork to the middle of the frame.
(fit the lower hook of the fork to the center notch of the
frame)
2. Slide the fork to the desired position.
3. Push the lock lever and slide the fork slightly until the
lock pin engages with one of the notches to lock the
folk.
4. The other fork can be installed using the same
procedures.
Loader Model Rated Capacity
LA1954 930 kg (2050 lbs.)
LA2254 1090 kg (2400 lbs.)
(1) Fork
(1) Fork
(1) Lock lever
