TRANSAXLE
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
2-M9

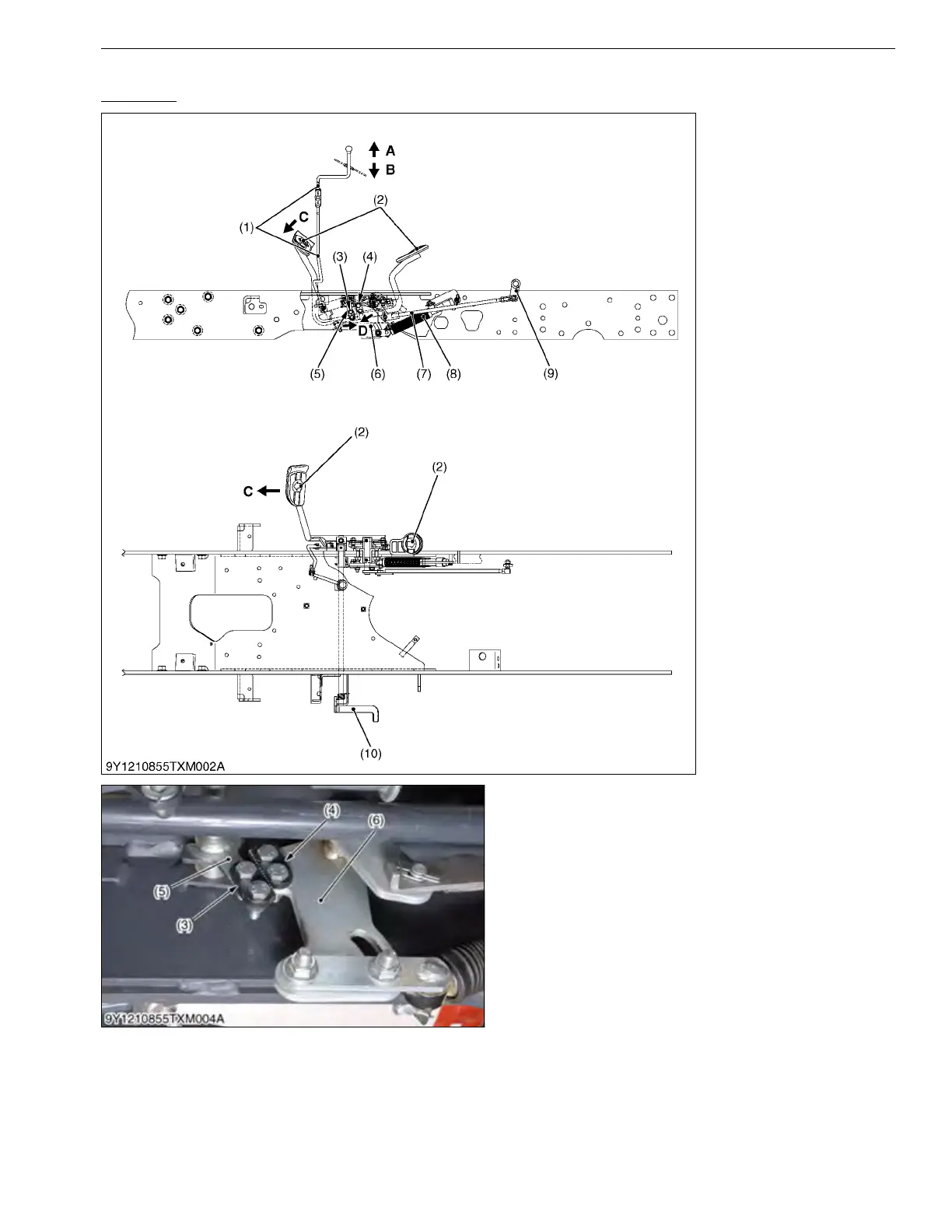

(4) Speed Set Linkage
Speed Set
When pushing and holding the speed set rod (1) and
depressing the speed control pedal (2), the desired
speed is set.
When pushing the speed set rod (1), the cruise plate
(5) is rotated counter clockwise.
When depressing the speed control pedal (2)
forward, the HST pedal link clockwise.
Since both the cruise lock (3) of the cruise plate (5)
and the cruise lock (4) of HST pedal link (6) are locked,
the speed control pedal (2) is held at a selected position.
9Y1210855TXM0009US0
(1) Speed Set Rod
(2) Speed Control Pedal
(3) Cruise Lock
(4) Cruise Lock
(5) Cruise Plate
(6) HST Pedal Link
(7) Speed Change Rod
(8) Damper
(9) Trunnion Arm
(10) Release Plate
A: Speed Set Rod "OFF"
B: Speed Set Rod "ON"
C: Speed Control Pedal
"Forward"
D: Cruise Lock "Locked"
KiSC issued 02, 2017 A
