SAFETY
(4) Always wear a mask and
protective goggles during work
when dust or flying debris may
be thrown by equipment.
(3) Working clothes which may be
pinched or caught in the
equipment must not be worn.
Loose clothing can cause
serious injury or death.
To
prevent accidents, read through the following items
before starting work, and always regard safety when
working. It is your responsibility to ensure your safety on
the job.
1.
Preparations
(1) Select a work site which is level, has sufficient
space, and is not close to dangerous objects.
(2) Avoid poorly ventilated room.
Asphyxiation from exhaust
fumes is always a possibility
that accompanies running
engine.
2.
Assembly and adjustments
(1) Before assembling equipment,
read the assembly instructions
for the product
to
become
~
familiar with the equipment and
~
procedures.
(2) Use only adequate and
Fcml
required equipment, tools and
instruments (e.g. torque wrench, battery
hydrometer and etc.).
(3) Set the parking brake and block wheels
to
prevent machine (or tractor) movement.
(4) Lower the attachment or implement to
the
ground before assembling
or
adjusting
equipment.
TO THE DEALER
1.
This manual contains procedures intended to assist
the dealer
in
unpacking and assembling the product
before delivering to the customer.
The customer's purchase is based on confidence
in
both the product and your store. Observe the
procedures
in
this manual to assemble and adjust
equipment for your customer's safety and
satisfaction. When fully assembled, check function
of
each part and feature.
2.
The following safety alert symbol mark and
indication are found throughout this manual
in
steps
where particular attention is required so as to
ensure your safety and to avoid product damage.
Observe the instructions
in
these warnings where
indicated.
Indicates
an
imminently
AOANGER
hazardous situation which, if
not
avoided,
will
result
in
death or serious injury.
Indicates
a
potentially
AWARNING
hazardous situation which, if
not avoided, could result
in
death or serious injury.
Indicates
a
potentially
·ACAUT,ON
hazardous situation which, if
not
avoided,
may
result
in
minor or moderate injury.
IMPORTANT:
Indicates
that
equipment
or
property damage could result if
instructions are not followed.
NOTE:
Gives helpful information.

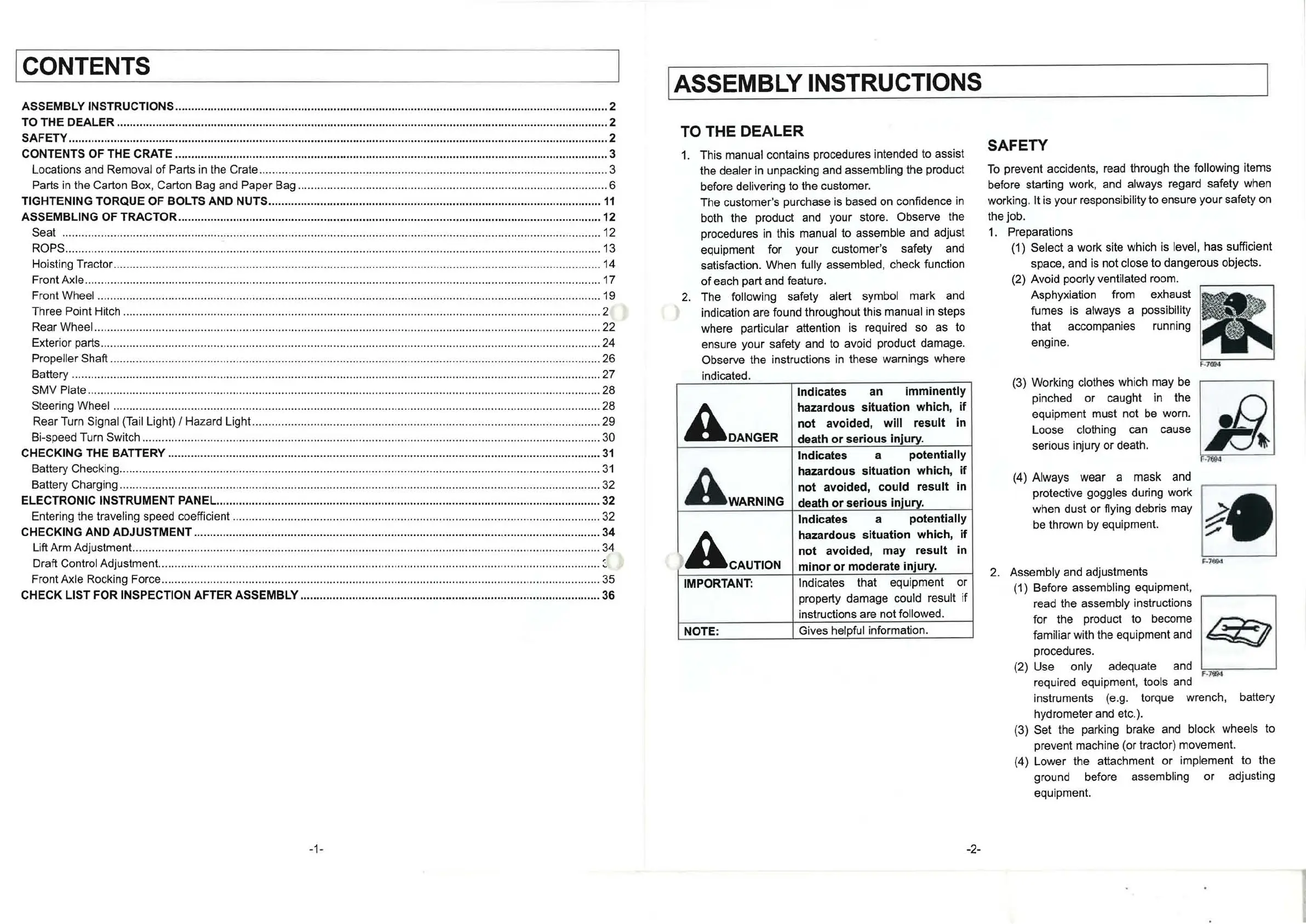

IASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS 2
TO THE DEALER 2
SAFETY
2
CONTENTS OF THE CRATE 3
Locations and Removal
of
Parts in the Crate 3
Parts in the Carton Box, Carton Bag and Paper Bag 6
TIGHTENING TORQUE OF BOLTS AND NUTS
11
ASSEMBLING
OF
TRACTOR 12
Seat 12
ROPS 13
Hoisting Tractor 14
Front Axle 17
Front Wheel 19
Three Point Hitch 2
Rear Wheel 22
Exterior parts 24
Propeller Shaft 26
Battery 27
SMV Plate 28
Steering Wheel 28
Rear Turn Signal (Tail Light) / Hazard Light.. 29
Bi-speed Turn Switch 30
CHECKING THE BATTERY
31
Battery Checking
31
Battery Charging 32
ELECTRONIC INSTRUMENT PANEL 32
Entering the traveling speed coefficient 32
CHECKING AND ADJUSTMENT 34
Lift Arm Adjustment. 34
Draft Control Adjustment.
::.
Front Axle Rocking Force 35
CHECK LIST FOR INSPECTION AFTER ASSEMBLY 36
ICONTENTS
-1-
-2-
