BReplacing Hydraulic Oil Filter (Return)
To avoid personal injury or death:
A Be sure to stop the engine before replacing the
oil filter.
A Allow engine to cool down sufficiently, oil can
be hot and can burn.
1. Place the oil pan underneath the hydraulic oil filter.
2. Using a wrench, remove the filter cover.
3. When oil is no longer dripping from the exposed area,
remove the element and replace it with a new one.
Make sure at this time that the O-ring is mounted on
the element mounting part.
4. Mount after cleaning the filter cover. If the O-ring is
damaged, make sure to replace it.
5. Fill the transmission oil up to the upper line of the sight
glass.
6. After running the engine for a few minutes, stop the
engine, wait for 10 minutes and check the oil level
again, add oil to the prescribed level.
7. Make sure that the transmission fluid doesn’t leak past
the seal on the filter.
A Check the transmission fluid level under the following
conditions:
(1) Park the machine on a flat surface.
(2) Lower the rear 3-point hitch and front end loader.
(if equipped)
(3) Raise the front 3-point hitch. (if equipped)
(4) Disconnect the all remote control valve hoses.
(5) Shut off engine and wait for 10 minutes.

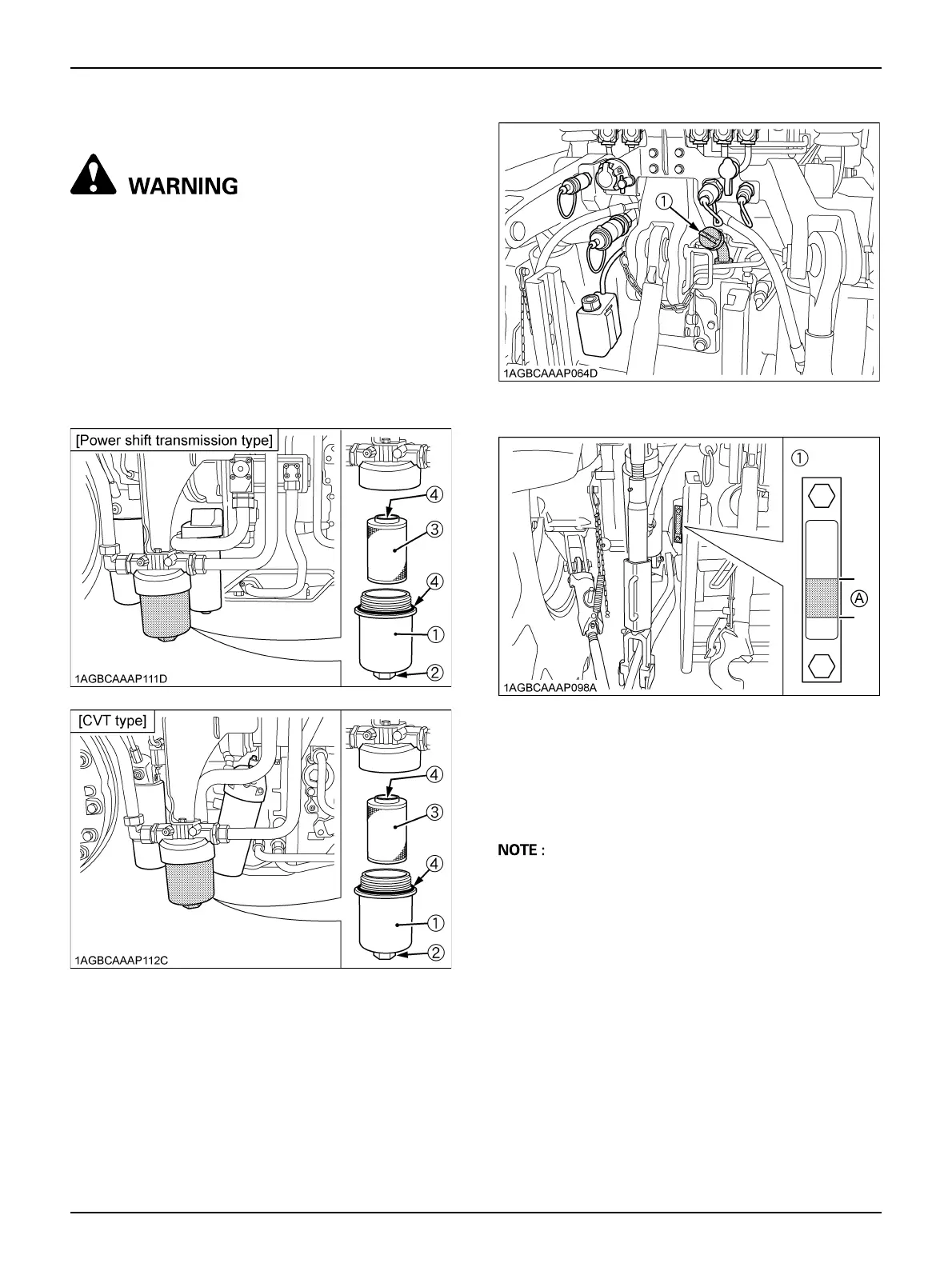

(1) Transmission oil filter cover
(2) Nut
(3) Element
(4) O-ring
(1) Filling plug
(1) Sight glass (A) Oil level is acceptable within this range
