9INSTRUMENT PANEL AND CONTROLS

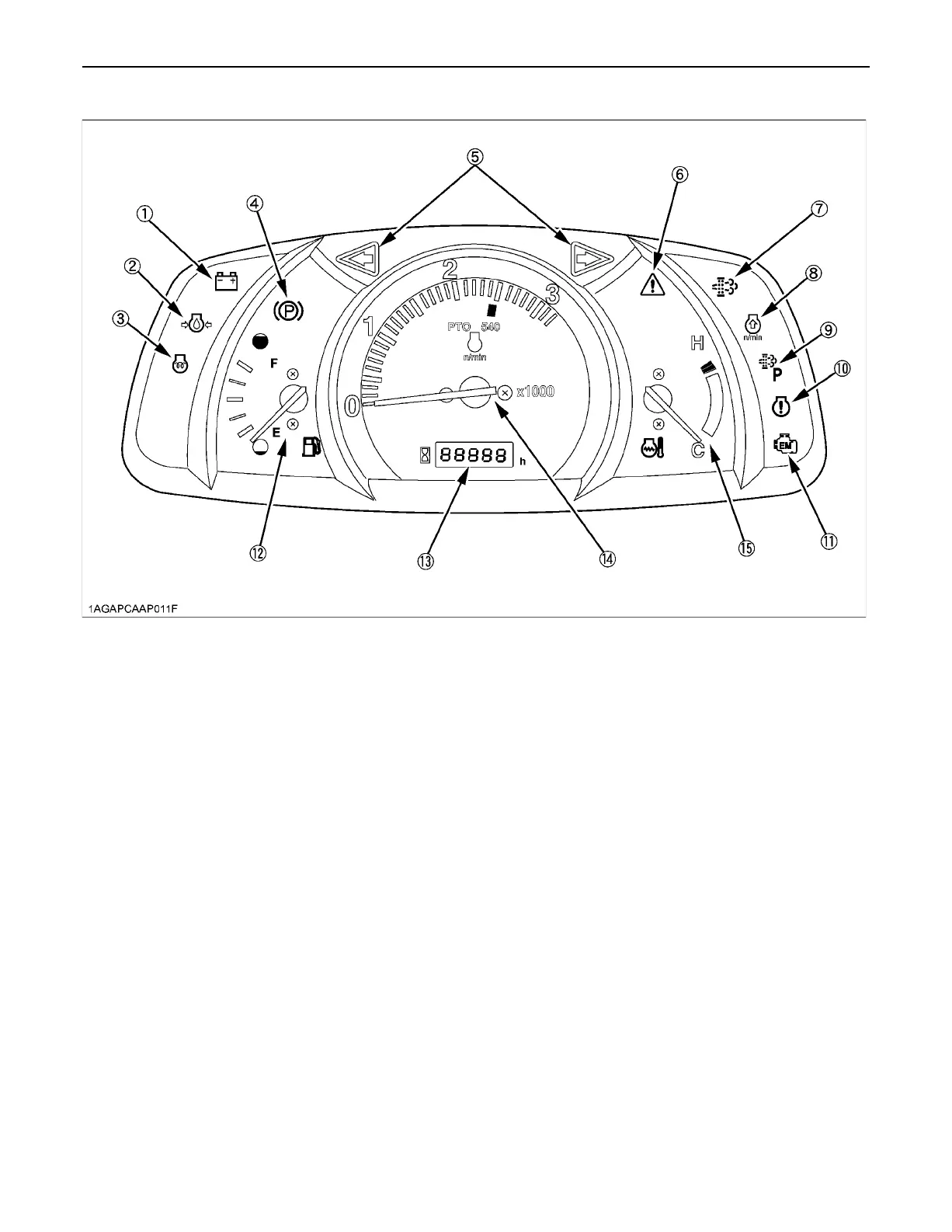

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Electrical charge warning indicator ................... 40 (9) Parked regeneration indicator .......................... 13
(2) Engine oil pressure warning indicator ............... 40 (10) Engine warning indicator .................................. 40
(3) Glow plug indicator ........................................... 24 (11) Emission indicator ............................................ 40
(4) Parking brake warning indicator ....................... 20 (12) Fuel gauge ....................................................... 41
(5) Turn signal / hazard indicator ........................... 30 (13) Hourmeter ........................................................ 41
(6) Master system warning indicator ...................... 40 (14) Tachometer ......................................................41
(7) Regeneration indicator ..................................... 13 (15) Coolant temperature gauge ............................. 41
(8) Engine RPM increase indicator ........................ 13
