11INSTRUMENT PANEL AND CONTROLS
C HST Type

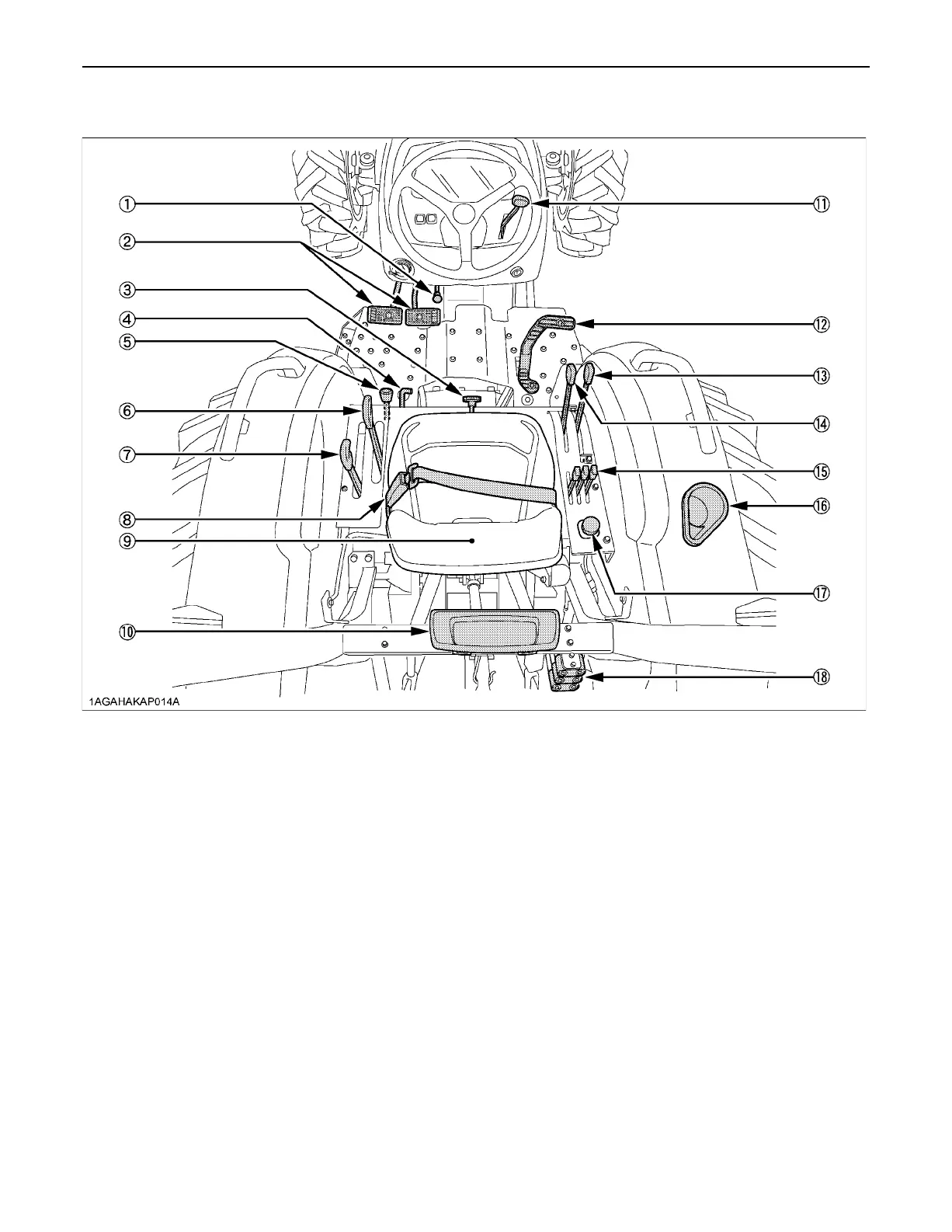

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Parking brake lever.......................................... 42 (10) Tool box........................................................... -
(2) Brake pedal..................................................... 31, 37 (11) Hand throttle lever........................................... 37
(3) 3-Point hitch lowering speed knob................... 53 (12) Speed control pedal......................................... 38
(4) Differential lock pedal...................................... 43 (13) Position control lever....................................... 52
(5) Front wheel drive lever.................................... 37 (14) Draft control lever (If equipped)........................ 52
(6) Range gear shift lever...................................... 36 (15) Remote control valve lever (if equipped).......... 54
(7) Cruise control lever.......................................... 38 (16) Cup holder....................................................... -
(8) Seat belt.......................................................... 30 (17) PTO clutch control switch................................ 45
(9) Operator's seat................................................ 29 (18) Remote control valve coupler (if equipped)...... 55
