TIRES, WHEELS AND BALLAST58
A The front tread width for the front loader application on
2WD models should not be greater than 1280 mm
(50.4 in.).
A Wheels with beveled or tapered holes: Use the
tapered side of lug nut.
To avoid personal injury or death:
A Before jacking up the tractor, park it on a firm
and level ground and chock the rear wheels.
A Fix the front axle to keep it from pivoting.
A Select jacks that withstand the machine weight
and set them up as shown below.

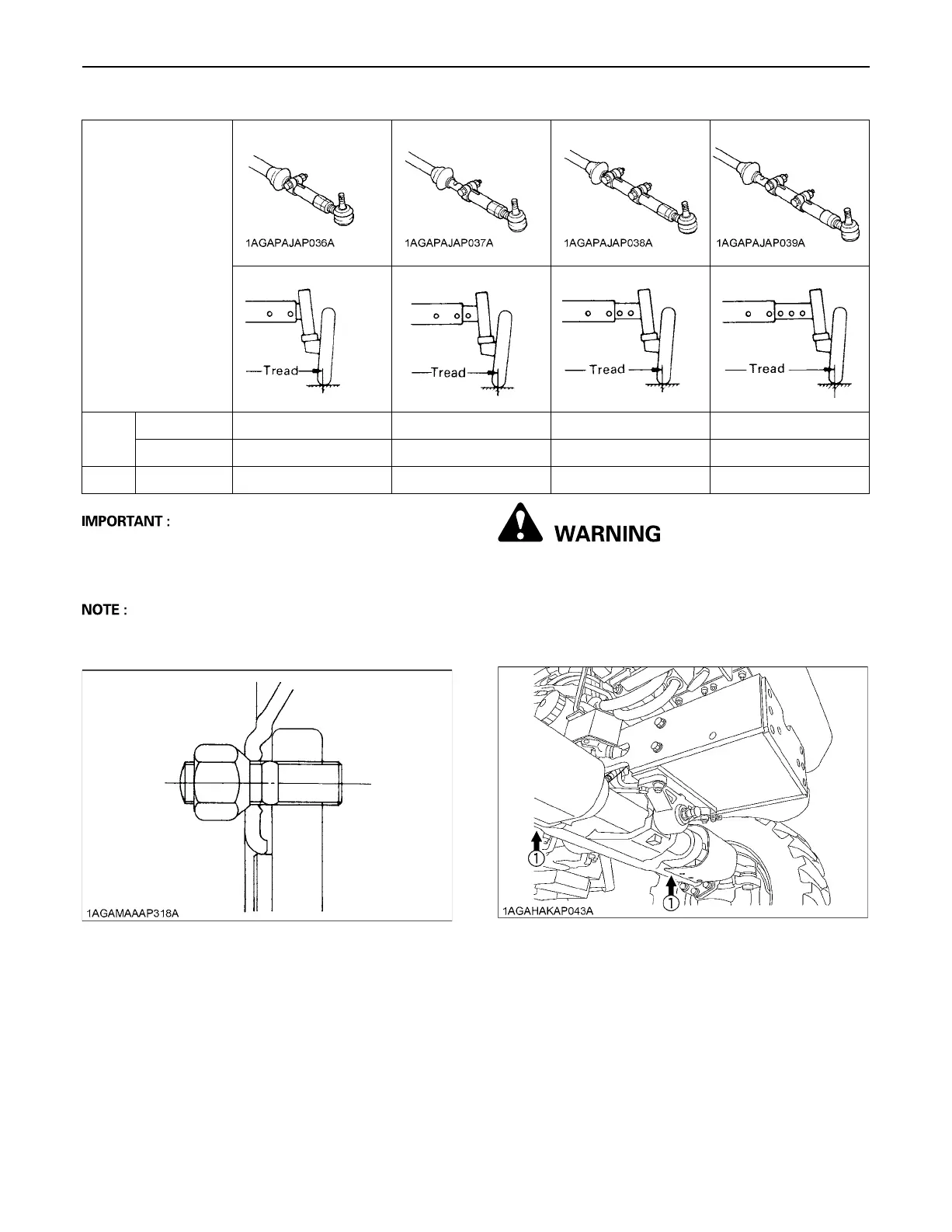

Models
Farm
7.5L-15 1280 mm (50.4 in.) 1380 mm (54.3 in.) 1480 mm (58.3 in.) 1580 mm (62.2 in.)
9.5L-15 1255 mm (49.4 in.) 1355 mm (53.3 in.) 1455 mm (57.3 in.) 1555 mm (61.2 in.)
Turf 29 x 12.5-15 1315 mm (51.8 in.) 1415 mm (55.7 in.) 1515 mm (59.6 in.) 1615 mm (63.6 in.)
(1) Jack points
