Kubota V2403-CR-E4 - Handling Fuses

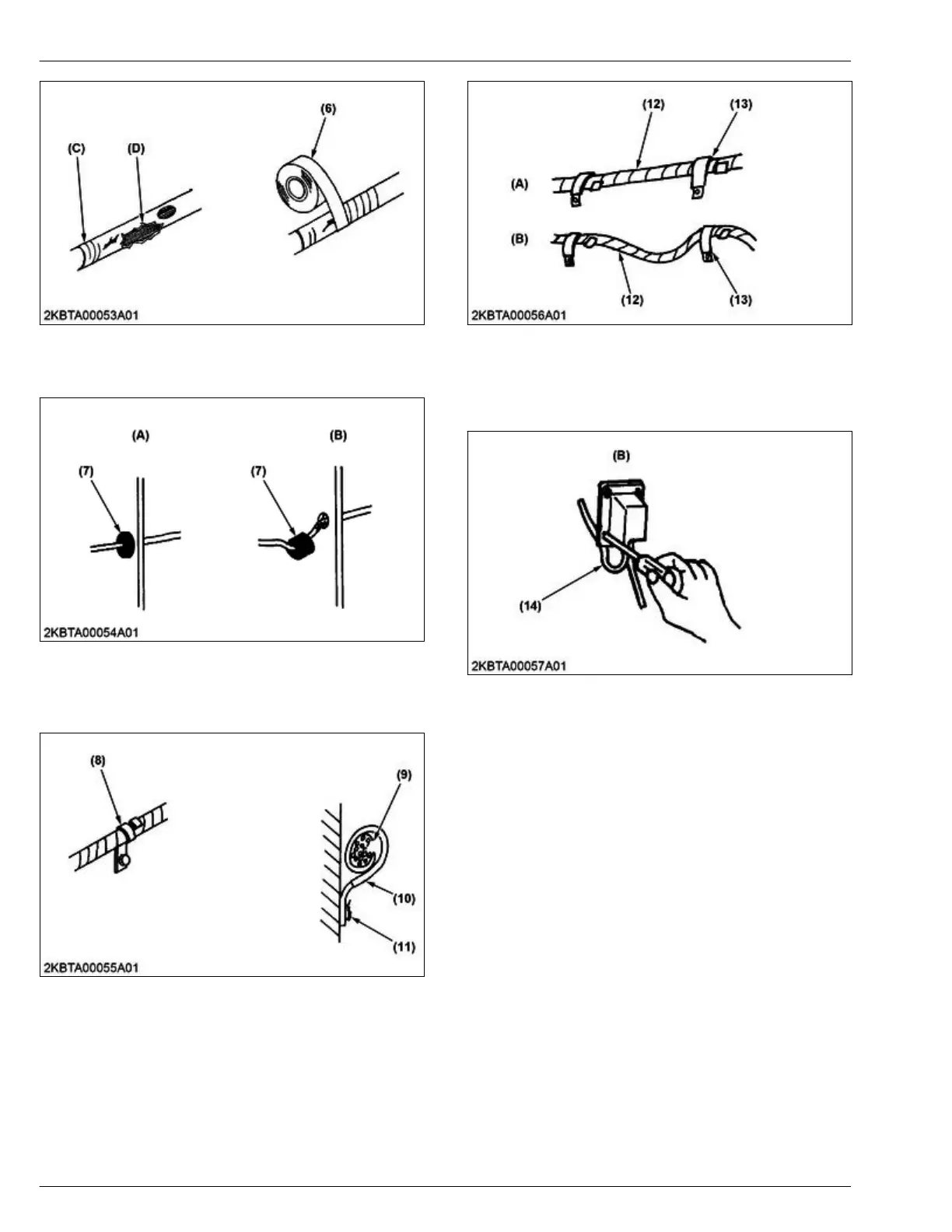

(6) Insulating tape
(C) Damaged
(D)
Torn
• Install the grommet securely.
(7) Grommet
(A)
Correct
(B)
Incorrect: poor installation
• Clamp the
electrical wiring securely. Do not
damage the electrical wiring by the clamp.
(8) Clamp: clamped spirally
(9) Electrical wiring
(10)
Clamp
(11) Welding point
• Clamp
the electrical wiring correctly. Do not slack,
twist, and pull.
•
In cases of connecting the electrical wiring to
moving or vibrating locations, make sure to clamp
the electrical wiring loosely.
(12) Electrical wiring
(13) Clamp
(A)
Correct
(B) Incorrect
• Do not pinch the electrical wiring when installing
parts.
(14) Electrical wiring (B) Incorrect
9. Handling fuses
• Always use fuses of the specified capacity.
• Do not use steel or copper wiring instead of fuse.
•
Do not install work light or radio without auxiliary
power line.
• Do not install auxiliaries to the fuses. The fuses
may blow.
