S-54
V3-E3B SERIES, V3-E3CB SERIES, V3-E3BG SERIES, WSM
DIESEL ENGINE

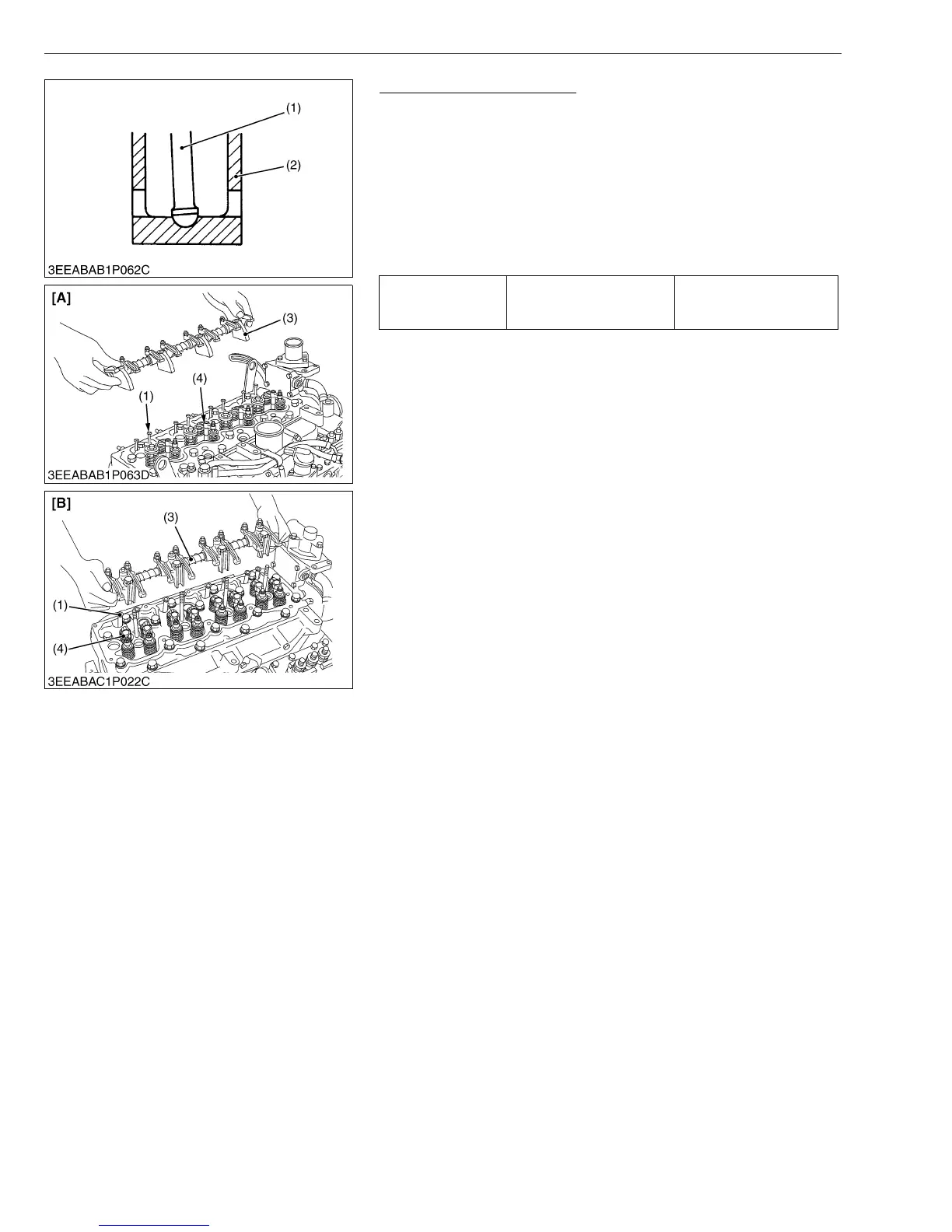

Rocker Arm and Push Rod
1. Remove the rocker arm (3) as a unit.
2. Remove the push rods (1).
3. Remove the bridge arm (4).
(When reassembling)
• When putting the push rods onto the tappets (2), check to see if
their ends are properly engaged with the grooves.
• After reassembling the rocker arm, be sure to adjust the
valve clearance.
W1050212
Tightening torque Rocker arm bracket screw
49 to 55 N·m
5.0 to 5.7 kgf·m
37 to 41 lbf·ft
(1) Push Rod
(2) Tappet
(3) Rocker Arm
(4) Bridge Arm
[A] V3600-E3B, V3600-T-E3B,
V3600-E3CB, V3600-T-E3CB,
V3300-E3BG, V3600-T-E3BG
[B] V3800DI-T-E3B, V3800DI-T-E3CB,
V3800DI-T-E3BG
