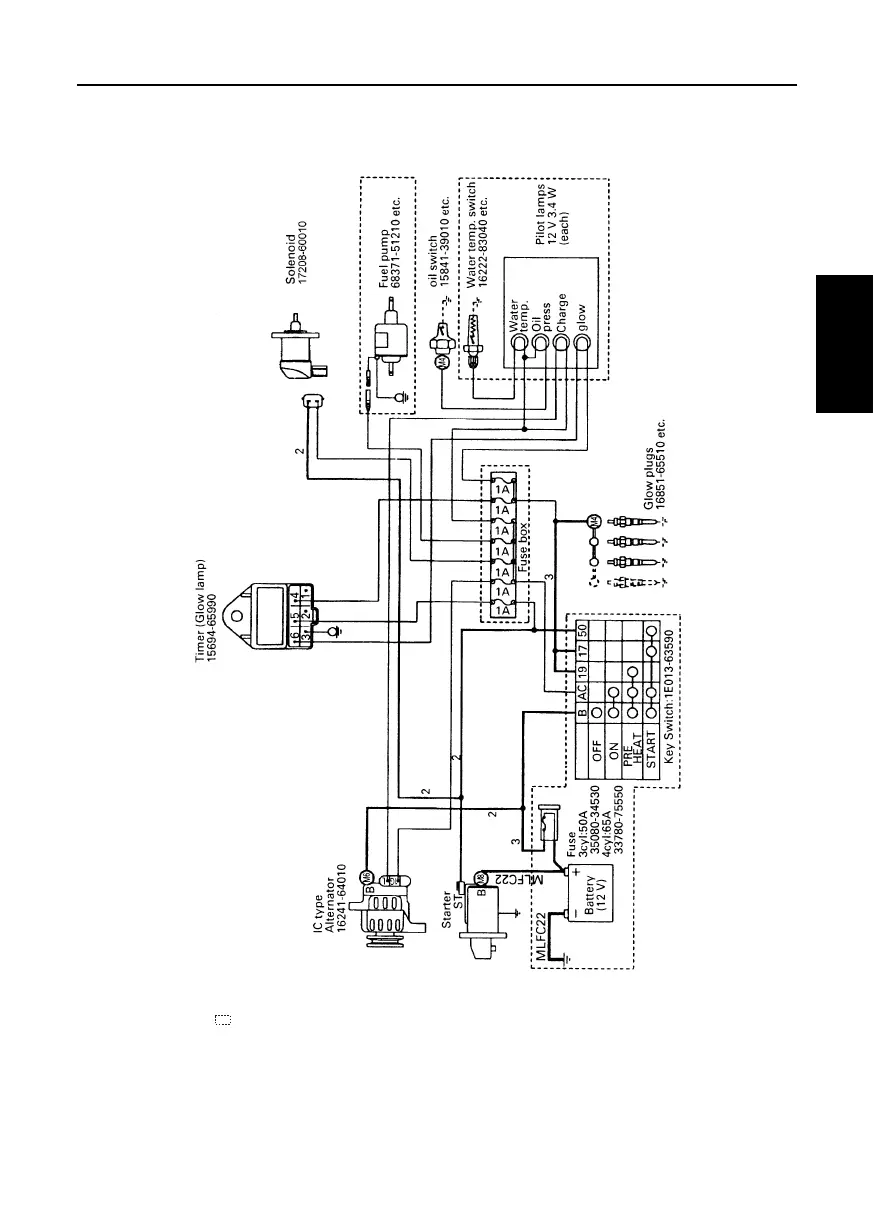

Kubota V3600-E3 - D1000-V1500 SERIES WIRING (KEA;SAE STANDARD)

61WIRING DIAGRAMS
ENGLISH
[D1005-E3, D1105-E3, D1105-TE3, D1305-E3, V1505-E3, V1505-TE3, D1005-E3BG, D1105-E3BG, V1505-E3BG]
KEA/SAE standard (Energize to run)
 The parts boxed in are reference, NOT equiped for standard engine spec.
 Non marked wire dia. is 0.8~1.25 mm
2
.
