GENERAL
B2050, B2350, B2650, B3150, WSM
G-62

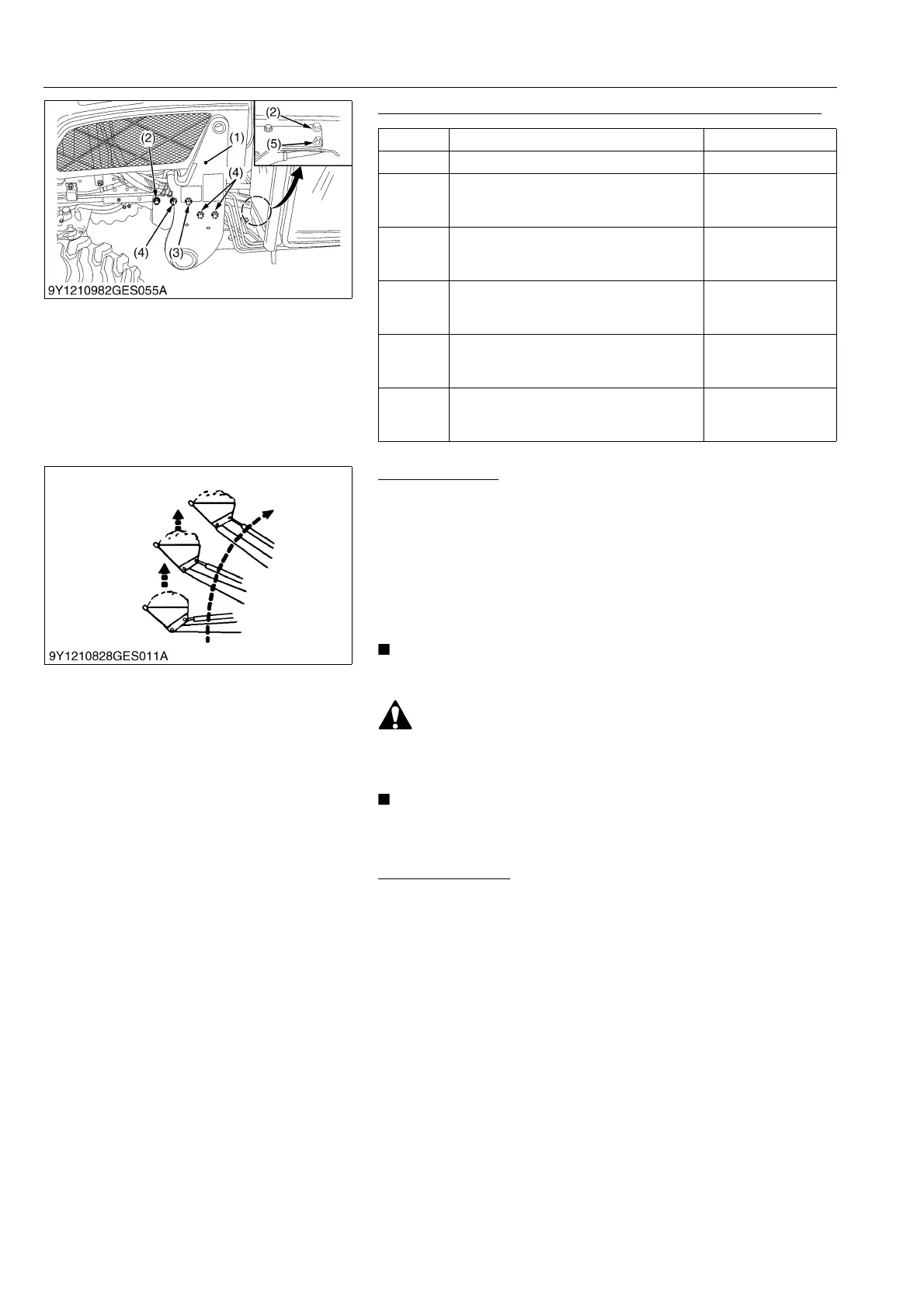

LA534 for B3150 [Attach the Main Frame: ROPS / CAB Type]
9Y1210982GEG0095US0
Output Capacity
[LA424]
• Max. Lifting Capacity
(bucket pivot pin, MAX. Height): 420 kg (926 lbs)
• Max. Oil Pressure 16.6 MPa (169 kgf/cm
2
, 2410 psi)
[LA534]
• Max. Lifting Capacity
(bucket pivot pin, MAX. Height): 520 kg (1150 lbs)
• Max. Oil Pressure 16.6 MPa (169 kgf/cm
2
, 2410 psi)
• The value of MAX. Lifting capacity contains the weight of
KUBOTA standard bucket.
To avoid personal injury or death:
• Special attention should be made when lifting the load,
keep the bucket correctly positioned to prevent spillages.
• Not all risks are listed.
Refer to front loader operator's manual.
9Y1210982GEG0096US0
Other Implements
• Strictly follow the instructions outlined in the operator's manual
of the mounted or trailed machinery or trailer, and do not
operate the combination tractor - machine or tractor - trailer
unless all instructions have been followed.
• Forestry Application
Following hazards exist;
a) toppling trees, primarily in case a rear-mounted tree
grab-crane is mounted at the rear of the tractor;
b) penetrating objects in the operator's enclosure, primarily in
case a winch is mounted at the rear of the tractor.
Optional equipments such as OPS (Operator Protective
Structure), FOPS (Falling Object Protective Structure), etc. to
deal with these hazards and other related hazards are not
available for this tractor.
Without such optional equipment use is limited to tractor specific
applications like transport and stationary work.
9Y1210982GEG0097US0
Parts name Tightening torque
(1) Main frame –
(2)
1-M14
1-M14 spring lock washers
150 N·m
15.3 kgf·m
111 lbf·ft
(3)
1-M12 (original)
1-M12 spring lock washers (original)
90 N·m
9.2 kgf·m
66 lbf·ft
(4)
2-M12 (original)
2-M12 spring lock washers (original)
80 N·m
8.2 kgf·m
59 lbf·ft
(5)
2-M14 (original)
2-M14 spring lock washers (original)
150 N·m
15.3 kgf·m
111 lbf·ft
(6)
1-M14 nut (original)
1-M14 spring lock washers (original)
128 N·m
13.1 kgf·m
94.4 lbf·ft
To Next Page
