Kubota WSM L6060 User Manual

CABIN
L3560, L4060, L4760, L5060, L5460, L6060, WSM
10-S56
(7) Wiper Motor
Front Wiper Motor

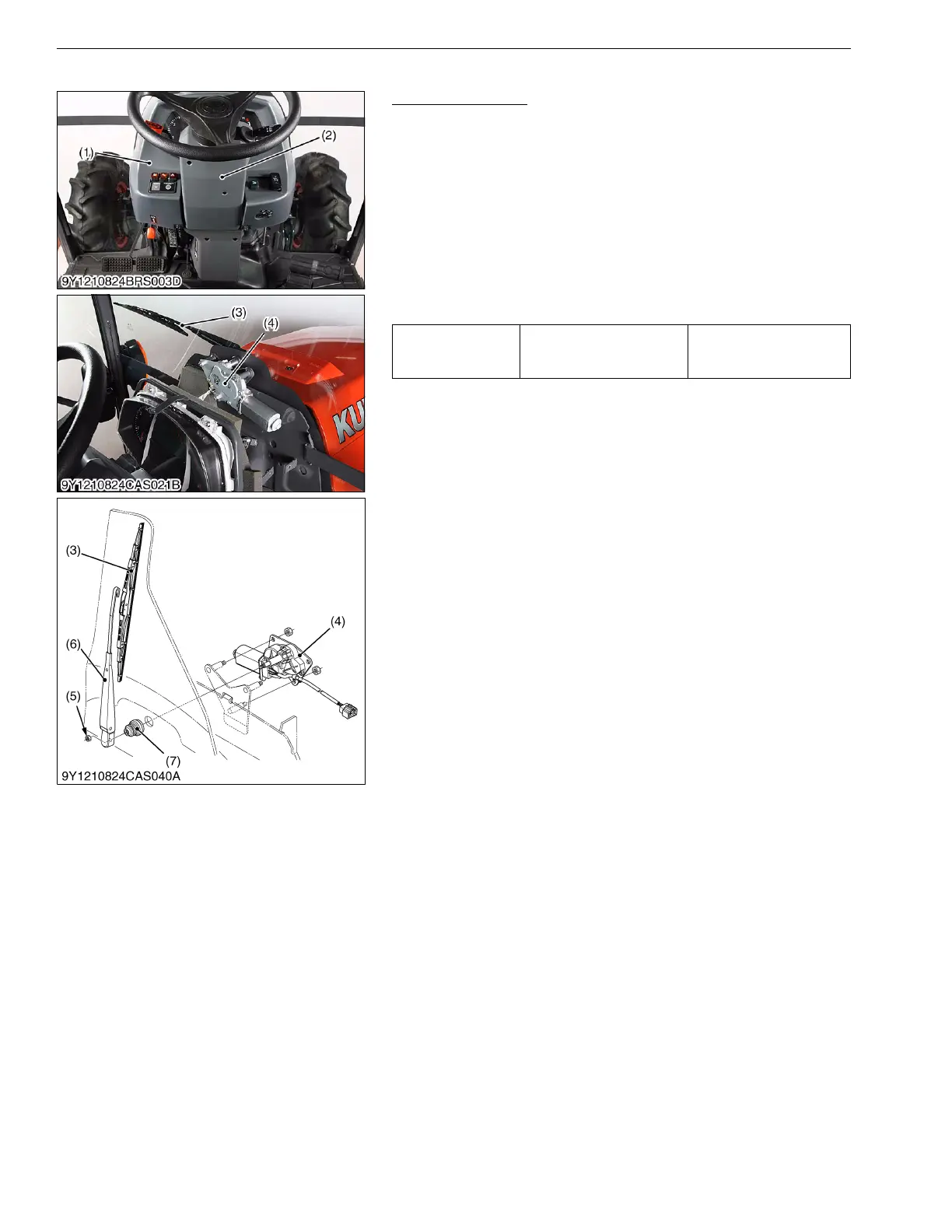

1. Remove the steering post covers (2) and steering post under
cover.
2. Remove the meter panel (1).
3. Disconnect the front wiper motor 4P connector.
4. Remove the wiper arm mounting nut (5) and wiper arm (6).
5. Remove the wiper link cap (7).
6. Remove the front wiper motor (4).
(When reassembling)
• When attaching the wiper arm (6) to the wiper motor (4),
assemble so that the wiper wipes symmetrically on the left and
right (bilateral symmetry).
9Y1210824CAS0096US0
Tightening torque Wiper arm mounting nut
6.4 to 9.3 N·m
0.65 to 0.95 kgf·m
4.7 to 6.8 lbf·ft
(1) Meter Panel
(2) Steering Post Cover
(3) Wiper Blade
(4) Front Wiper Motor
(5) Nut
(6) Wiper Arm
(7) Wiper Link Cap
KiSC issued 03, 2016 A

Kubota WSM L6060 Specifications

General

Engine Model	Kubota V2403-CR-TE4
Horsepower	62 HP
3-Point Hitch	Category I & II
Type	Compact Utility Tractor
Fuel Type	Diesel
Drive	4WD
Engine Type	4-cylinder, liquid-cooled diesel
Transmission	Hydrostatic (HST)
PTO Power	54 hp
Wheelbase	74.6 inches
Displacement	148.5 cu in (2.4 L)
Tire Size (Front)	12.4-16
