OC60-E2, OC95-E2, WSM ENGINE
S-33

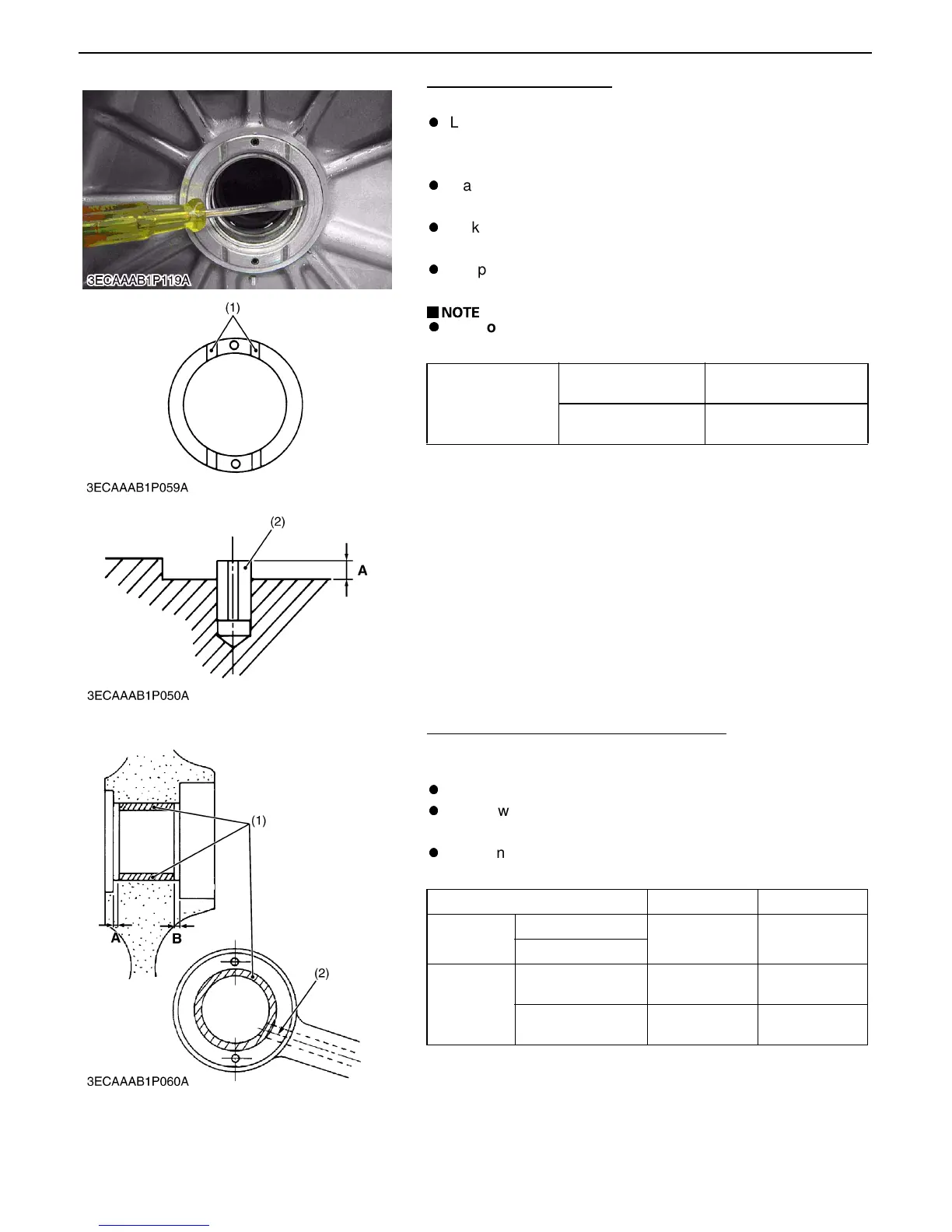

Side Bearing (Crank Case)
(When removing)
A
Lift up the side bearing by the flat screw driver as shown in
figure.
(When reassembling)
A
Make sure the oil groove (1) in the side bearing comes toward
the crank gear.
A
Make sure the anti-fall spring pin (2) for the side bearing is not
stretching out of the bearing surface.
A
Keep the spring pin head A above the surface (not greater
than the side bearing thickness of 2 mm).
A
Do not confuse the above side bearing with that at the
crankcase.
Main Bearing (Crank Case and Side Cover)
1. Remove the main bearing (1) with special tool.
(When reassembling)
A
Apply engine oil to all the fitting surface.
A
As shown at left, be sure to align the oil hole (2) on the crank
case and the bearing.
A
Drive in the bearing A and B deep below the side bearing
mounting face as shown at left.
Spring pin head A
OC60-E2
1.5 to 1.7 mm
0.059 to 0.067 in.
OC95-E2
1.7 to 2.2 mm
0.067 to 0.087 in.
(1) Oil Groove (2) Spring Pin
0000009243E
Model A B
OC60-E2
Crank Case
1.0 mm
0.039 in.
1.0 mm
0.039 in.
Side Cover
OC95-E2
Crank Case
0.5 mm
0.020 in.
1.0 mm
0.039 in.
Side Cover
0.5 mm
0.020 in.
0.5 mm
0.020 in.
(1) Main Bearing (2) Oil Hole
0000009244E
