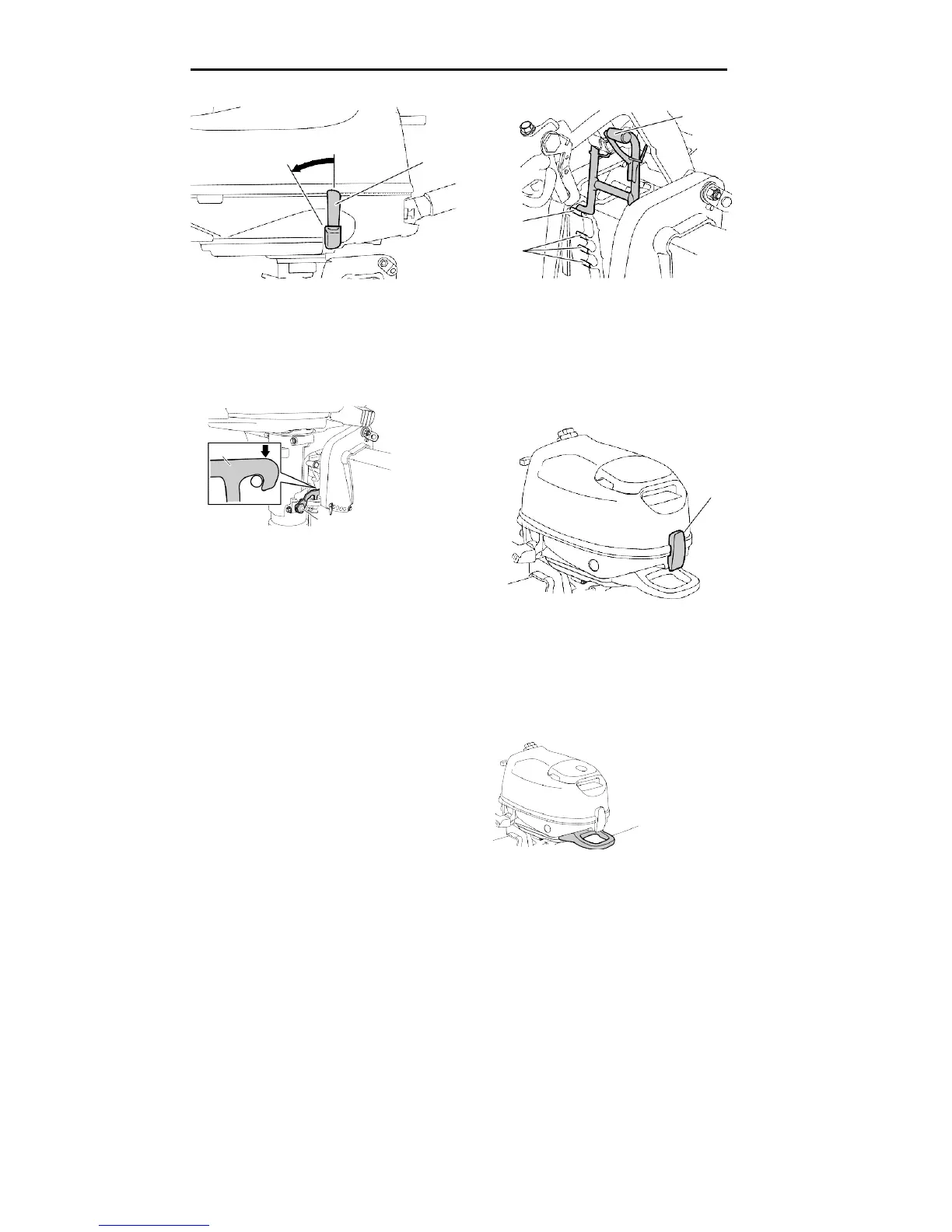

Handle
Components
1. Gear shift lever
2. Reverse position
1. Tilt support bar
2. Tilted up position
3. Shallow water cruising position
Cowling lock lever
Used to secure the top cowling.
1. Tilt lock
When the gear shift lever is moved to the
neutral position or forward position, the
outboard motor can be tilted up.
Tilt support bar
Use the tilt support bar to keep the outboard
motor in the tilted up position or a shallow water
cruising position.
1. Cowling lock lever
Carrying handle
Used to carry the outboard motor.
