Operation

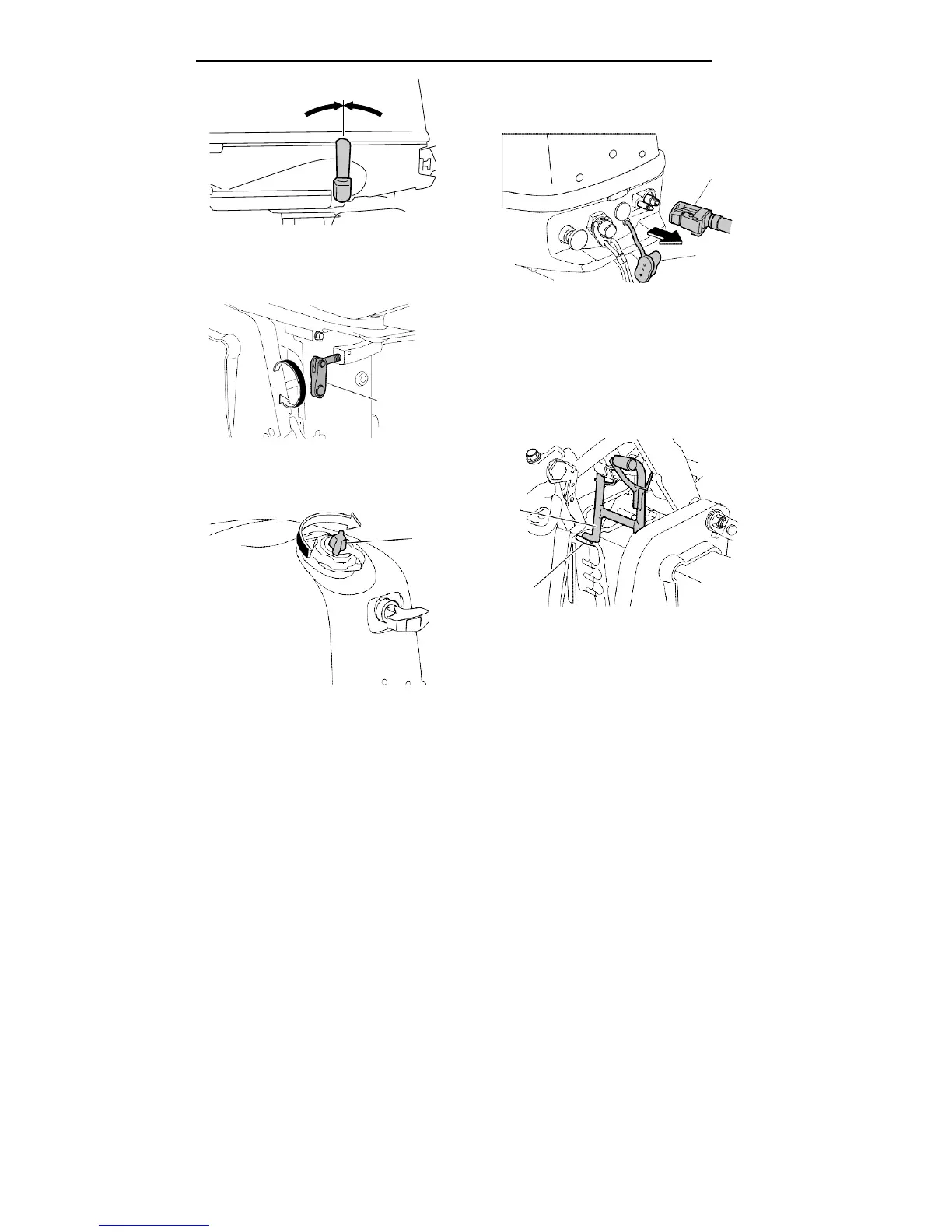

1. Neutral position
3. To prevent steering movement, turn the
steering friction adjuster clockwise.
1. Fuel hose
2. Fuel joint cap
6. Hold the rear of the top cowling and fully tilt
the outboard motor up. Slightly lower the outboard
motor from the fully tilted up position and fit the tilt
support bar securely into the holder located on
the clamp bracket.
1. Steering friction adjuster
4. Tighten the air vent screw.
1. Tilt support bar
2. Holder
1. Air vent screw
5. When using a portable fuel tank,
disconnect the fuel hose, and then install the
fuel joint cap. WARNING! When not using a
portable fuel tank, make sure to
install the fuel joint cap. Otherwise, injury could
result from striking the fuel joint accidentally.
Procedure for tilting down
1. Slightly tilt the outboard motor up.
2. Slowly tilt the outboard motor down
while pulling the tilt support bar up.
