FNL Getting Started 11 / 22
PROFIBUS DP configuration download
CONFIGURATOR II provides an integrated download function to
flash the PROFIBUS DP Configuration on the FNL device.
Proceed the following steps:

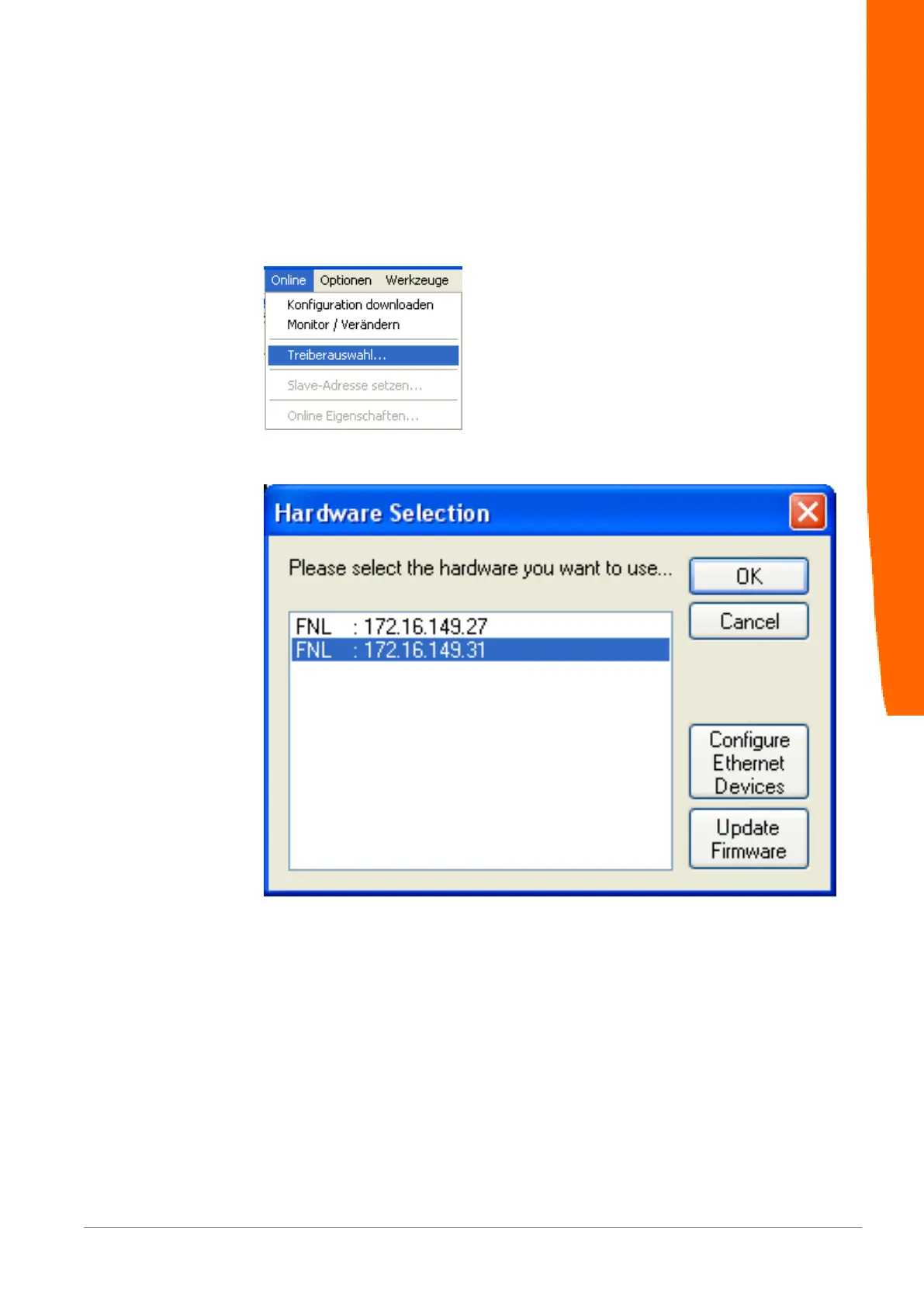

– Select Driver Selection from the Online Menu:
Illustration7: Driver selection
The installed FNL devices are displayed:
Illustration8: Installed FNL device
Select a FNL device and click the OK button. If nothing is displayed,
click the Configure Ethernet Devices button to rescan the available
FNL devices. If still no FNL is found check your installation.
Refer to the online help system of CONFIGURATOR II for details of
the driver selection.
– Download the PROFIBUS DP configuration
– Click the download symbol in the toolbar of "Configurator II":
PROFIBUS
