"Configurator II" displays the online status of the DP-slaves:

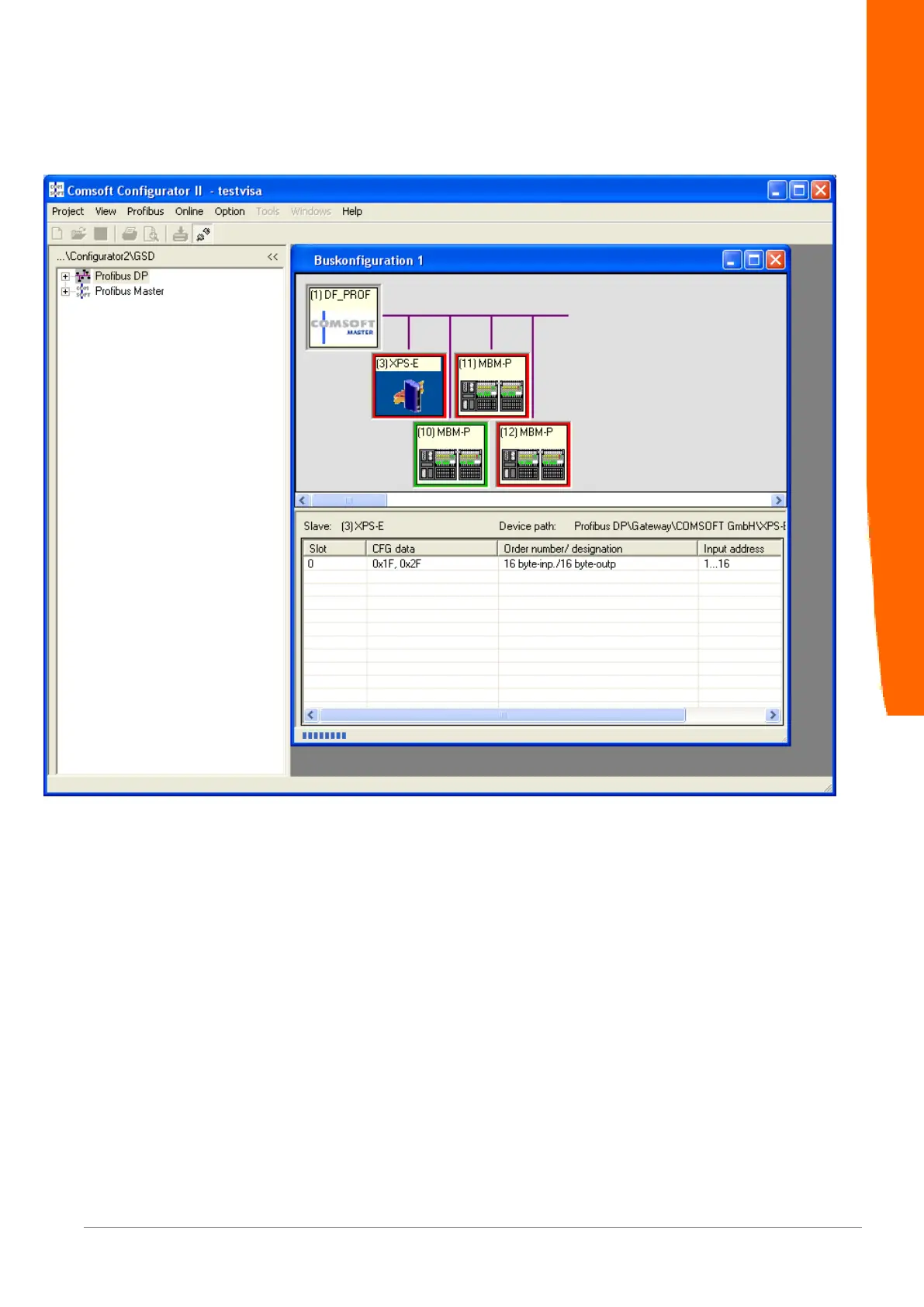

Illustration12: Monitor/Modify mode
"Configurator II" displays the status of every DP Slave (coloured
frame) and allows to monitor and modify the I/O data, and also
display the PROFIBUS specific diagnostic-data by clicking the DP
Slaves. For further details please refer to the online help system of
"Configurator II".
