11 | ENLGISH
Maintenance Schedule

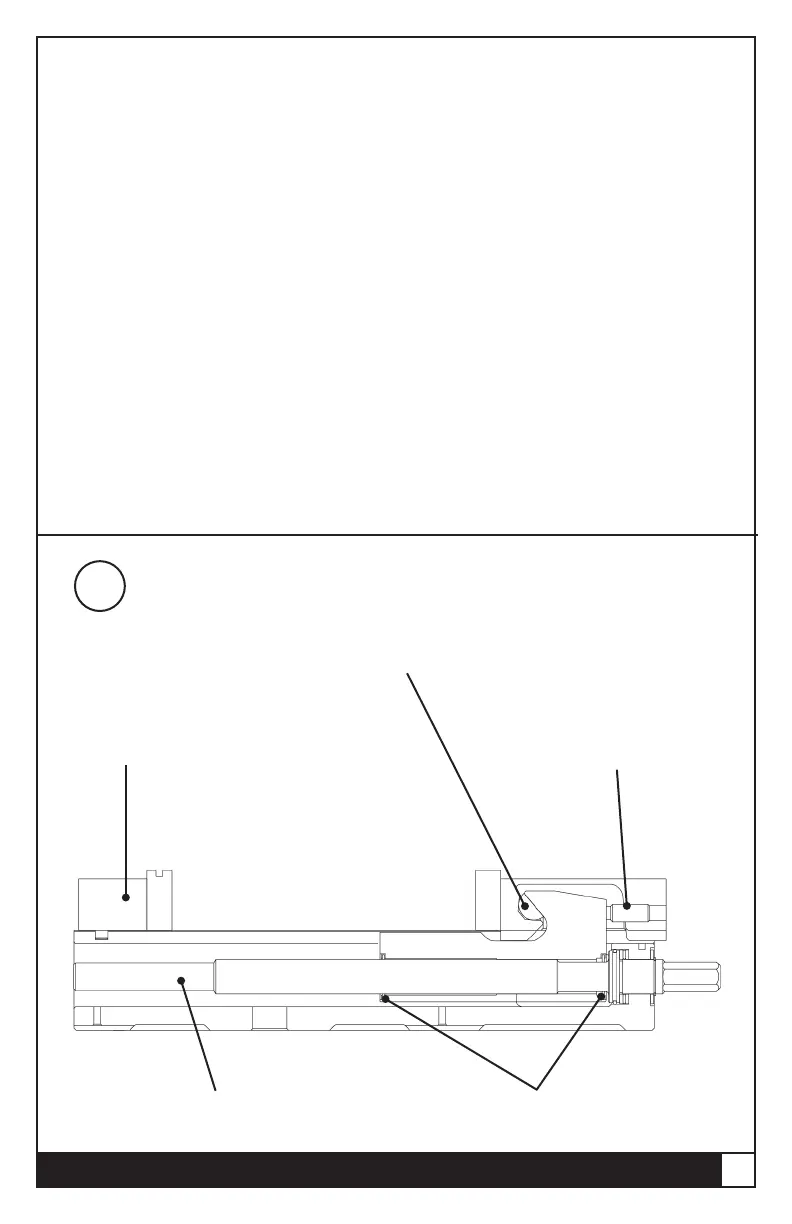

Fig.2
Stationary Jaw
Segment (Half Moon)
Socket Head Set Screw
Screw Screw brush seals
8. Tighten the setscrew to rmly contact the nut. Back o the
setscrew ¼ turn (approx.) note: DO NOT leave the setscrew
tightened rmly to the nut as this may cause improper operation.
The movable jaw is designed to move slightly (pivot side to side)
so maximum jaw plate contact is maintained when clamping out-
of-parallel, sawed, or cast parts.
9. Your vise is now ready for use. Open and close your vise to check
for proper operation. Center the part to be clamped in the vise and
close. Your parts should be centered from side to side to insure
proper clamping. (See Fig. 2 below)
