PAGE
2
STEP 3 Place the Magnum Quick Clamp around the chosen mounting point. Close the
clamp; insert the bolt that was removed in STEP 2,
being sure to use the internal tooth lock washers on
each side of the clamp (FIG 1), and place the spacer
washer in between the clamp halves. FIG 1
NOTE: Spacer washer must be installed between clamp
halves! Failure to do so may result in unsecured
clamping or damage to the clamp.
STEP 4 Place the Offset arm on the clamp (making sure there
is an internal tooth lock washer between the arm and
the clamp) and secure with the 1/2” fastener.
DO NOT fully tighten them at this point. Sit on the
bike and determine the desired arm position, adjust
as needed, then tighten the 1/2” fastener securely.
FOOTPEGS MUST BE INSTALLED SO
THEY WILL FOLD UPWARD AND
REARWARD IF HIT BY ANY OBJECT.
FAILURE TO ADJUST THE FOOTPEGS
TO OPERATE IN THIS MANNER COULD
RESULT IN SERIOUS INJURY OR DEATH.
STEP 5 The angle of the clevis may be adjusted by loosening the 5/16” fastener that secures the clevis to
the arm. FIG 1 Rotate the clevis and peg to the desired position. Tighten the fastener securely.
STEP 6
To adjust the peg angle: Using a hex wrench, loosen the 5/16” socket head cap screw located in
the end of the Dually Peg. PIC 1 Position the rubber footpeg pad as desired, then tighten the
5/16”-18 socket head cap screw. The male mount will seat itself into the peg and keep it from
rotating.
STEP 7
Tighten all hardware, including the rear rubber pad retaining fastener (PIC 2),
securely.
STEP 8
Repeat STEP 2 through 7 for the opposite side.
CHECK TO MAKE SURE THAT THERE IS PROPER CLEARANCE
WHEN CORNERING. LOSS OF CONTROL OF THE
MOTORCYCLE AND SERIOUS INJURY MAY OCCUR IF THE
PEG/ARM IS NOT POSITIONED PROPERLY. REPOSITION THE
OFFSET ARM IF NECESSARY SO THAT THERE IS ADEQUATE
CORNERING CLEARANCE.
STEP 9
Tighten all fasteners.
Check clearance for proper operation of controls. Highway Pegs
provide additional positions to place your feet/new-riding positions.
Confirm clearance and relation of the position of your feet to the
shifter and the brake pedals.
It is the installer’s responsibility to ensure that all of the fasteners
(including pre-assembled) are tightened before operation of the
motorcycle. Küryakyn will not provide warranty coverage on
products or components lost due to improper installation or lack of
maintenance. Periodic inspection and maintenance are required on
all fasteners.
Ride On!

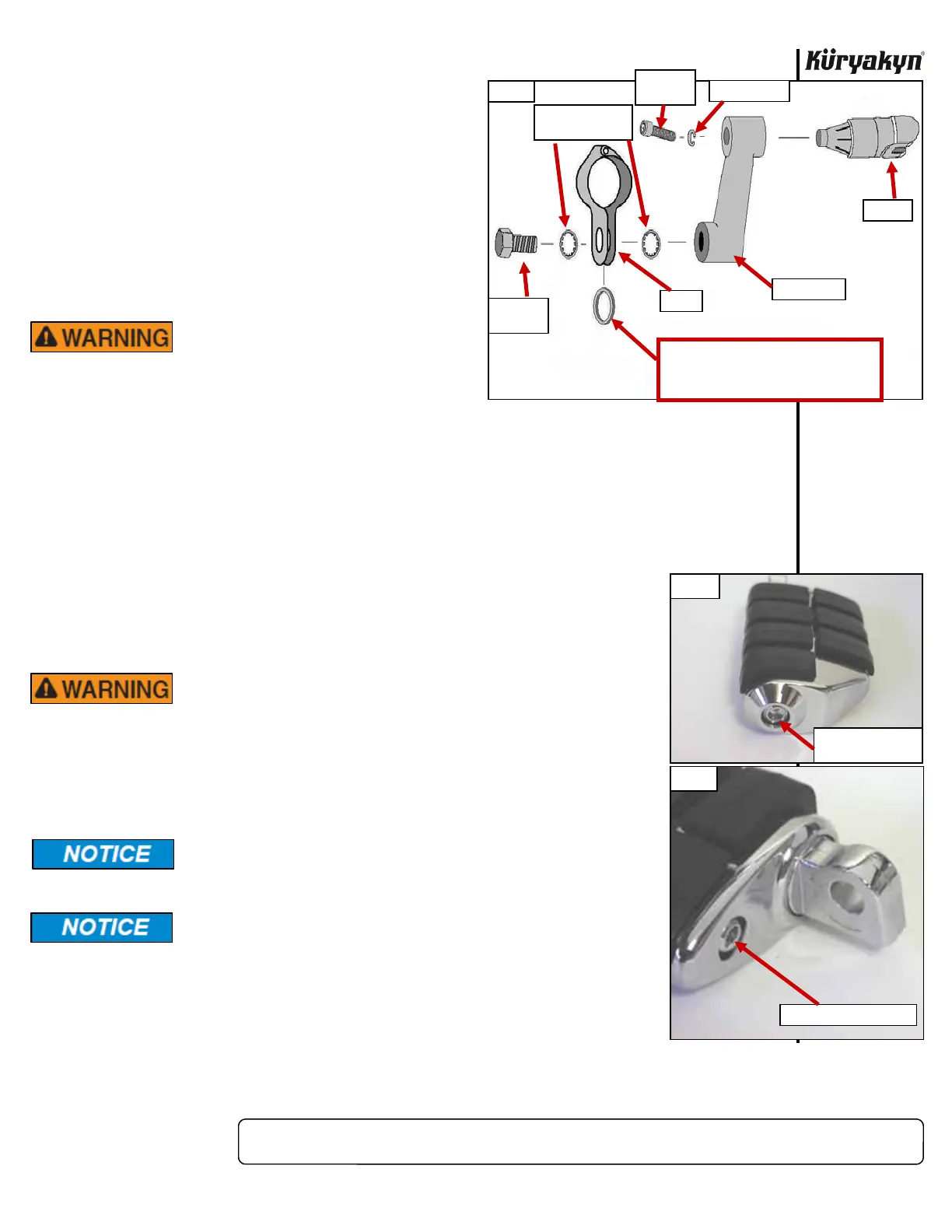

OFFSET MOUNTS INSTALLATION
SPACER WASHER MUST BE INSTALLED
BETWEEN CLAMP HALVES! FAILURE TO
DO SO MAY RESULT IN UNSECURED
CLAMPING OR DAMAGE TO THE CLAMP.
INTERNAL TOOTH
LOCK WASHER
CLAMP
OFFSET ARM
CLEVIS
5/16”
FASTENER
FIG 1
1/2” HEX
FASTENER
LOCK WASHER
PIC 2
TIGHTEN THIS FASTENER
PIC 1
USE THIS FASTENER
TO ADJUST PEG
