Kurzweil K2000 User Manual

SECTION 2
KRSTART.DOC 01/04/93
2.18.2 startup - the Details
This section will walk you through the hookup of your K2000R. First a look at
the rear panel, then describe the power, audio, and other cable connections.
2.18.3 Before You start
Do not connect anything until you make sure your K2000R is properly and safely
situated. You will probably be mounting it in a standard 19-inch MIDI rack
(it takes up three rack spaces). Otherwise, it should rest on a hard flat
surface. In this case, it must rest on its rubber feet (supplied in the
packing carton), and NOT on the bottom panel. NEVER block the ventilation
openings on the bottom or rear panels; doing so can cause overheating and
serious damage. To provide adequate ventilation, the rear panel should be at
least four inches from any vertical surface.
There are no user serviceable parts in the K2000R. Under no circumstances
should any attempt be made to remove any panels (except for battery
replacement - see Section 4) by unqualified personnel. To do so risks
electric shock and may void the warranty.
2.18.4
The Rear Panel

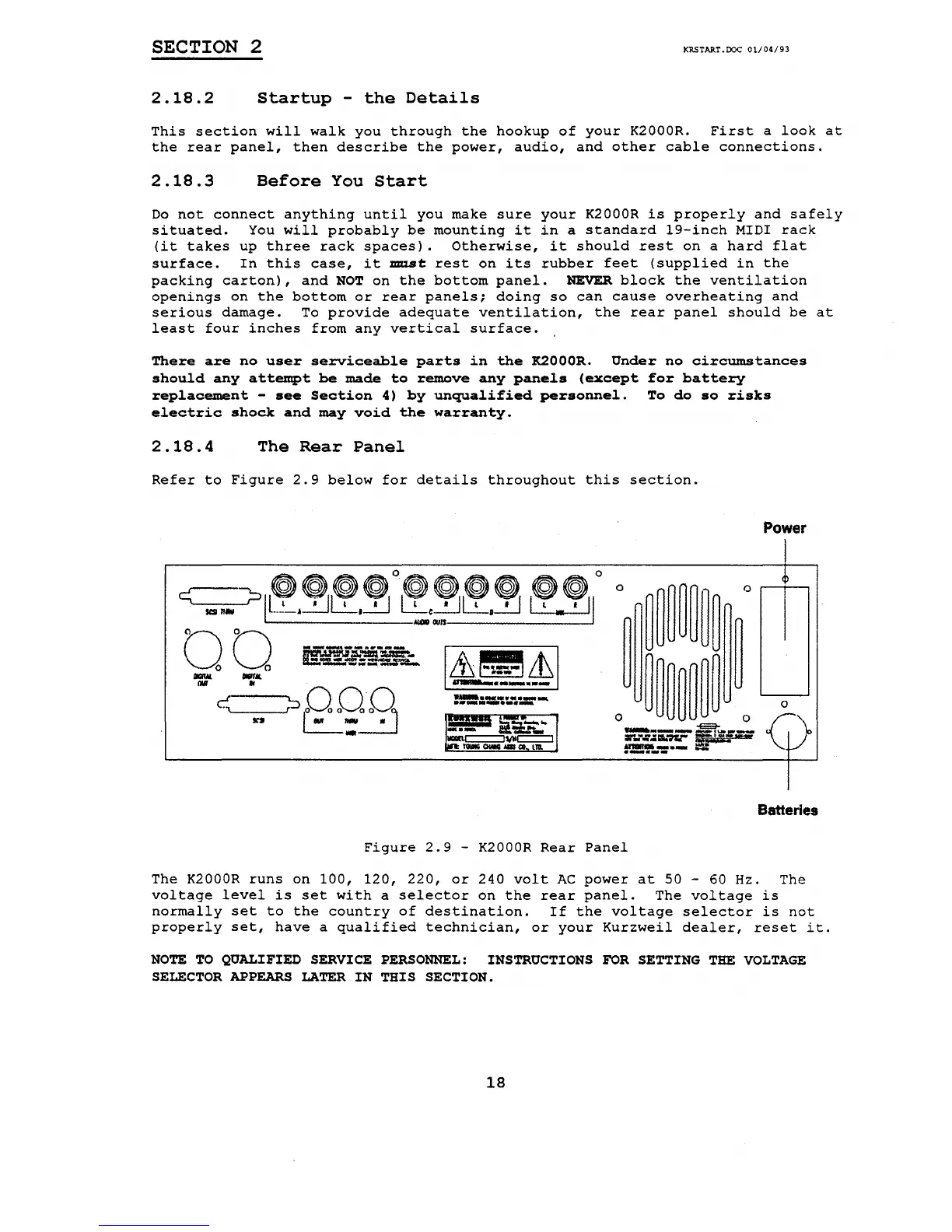

Refer to Figure 2.9 below for details throughout this section.
Power
:? OOOOO@OO@ 00
0
o~ ~~~~~~~ ~
0
C;
an_ IL~_A~L:=,~ I '-c
w
:
I[CD~ I l • I II
00
~ ...... ---
.. -==..~~~
&~Lt
-
_It
o ~~~~~~~ 0 0
INf
II
~.--.--
?~c:3
C,
~ ..............
.",--_ ... -.
n
..,. - .
i"':i: ......
..
S;- ~
----~~ - C0
-c=:::::J5/'II~
r_"~,;"-;v ~--
_OIMG.IIIIQI uv.
~,,--:.- ..... "i
I
Batteries
Figure 2.9 - K2000R Rear Panel
The K2000R runs on 100, 120, 220, or 240 volt AC power at 50 - 60 Hz. The
voltage level is set with a selector on the rear panel. The voltage is
normally set to the country of destination. If the voltage selector is not
properly set, have a qualified technician, or your Kurzweil dealer, reset it.
NOTE TO QUALIFIED SERVICE PERSONNEL: INSTRUCTIONS FOR SETTING THE VOLTAGE
SELECTOR APPEARS LATER IN THIS SECTION.
