Kurzweil K2500 - PERFORMANCE GUIDE REV F PART NUMBER 910251 CHAP 14 - Two-pole Notch Filter (NOTCH FILTER)

DSP Functions
Filters
14-17
EditProg:F2|WID(2P|ALPASS)|<>Layer:1/1||
Adjust:0.010oct|||||Src1||:OFF||||||||||
||||||||||||||||||||Depth|:0.00oct||||||
||||||||||||||||||||Src2||:OFF||||||||||
KeyTrk:0.000oct/key|DptCtl:OFF||||||||||
VelTrk:0.00oct||||||MinDpt:0.00oct||||||
||||||||||||||||||||MaxDpt:0.00oct||||||
<more||F1|FRQ|F2|WID|F3|AMP|F4|AMP|more>
PARAMETER RANGE OF VALUES
ADJUST 0.010 to 5.000 octaves
KEY TRACKING ± .200 octaves per key
VELOCITY TRACKING ± 5.00 octaves
SOURCE 1 Control Source list
SOURCE 1 DEPTH ± 5.00 octaves
SOURCE 2 Control Source list
SOURCE 2 DEPTH CONTROL Control Source list
MINIMUM DEPTH, SOURCE 2 ± 5.00 octaves
MAXIMUM DEPTH, SOURCE 2 ± 5.00 octaves

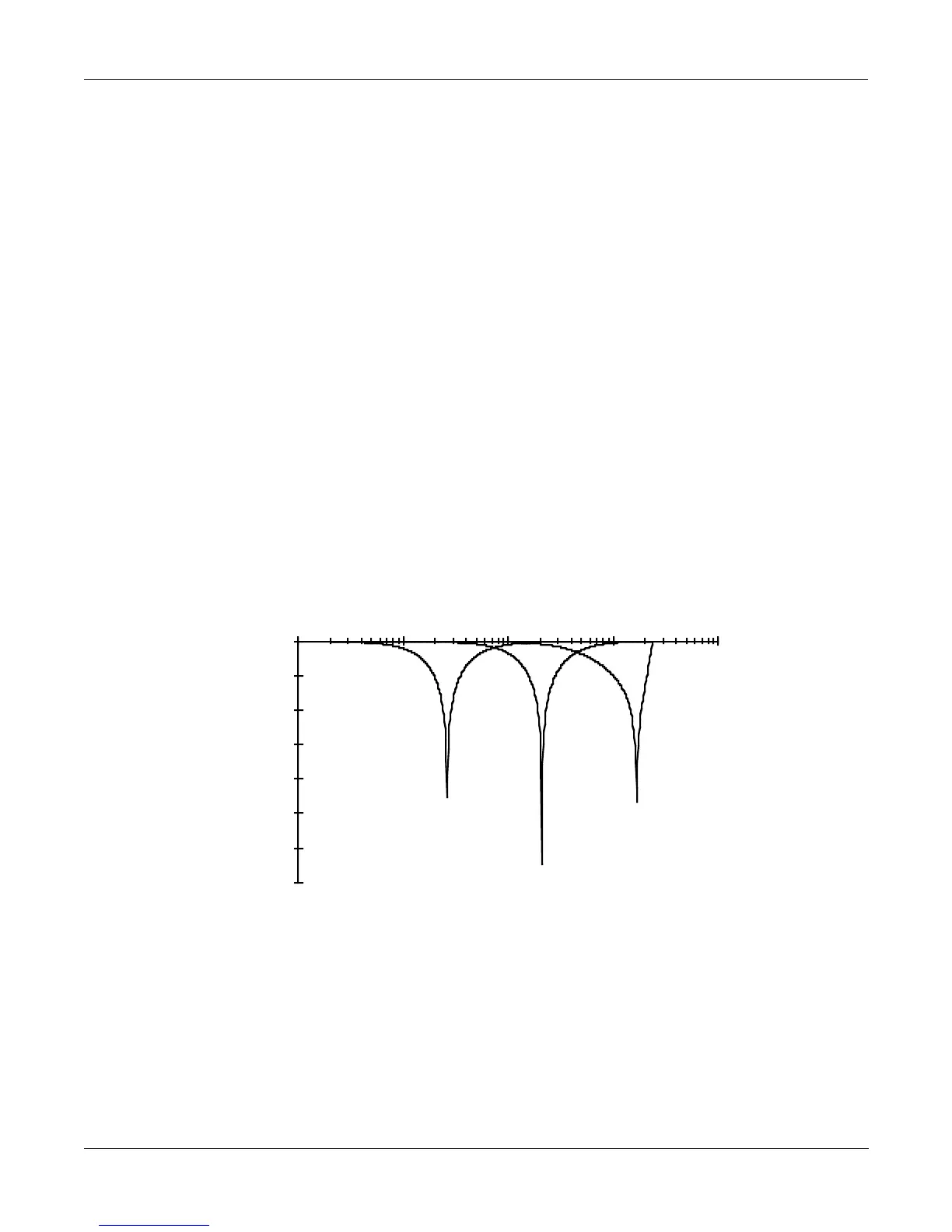

Two-pole Notch Filter (NOTCH FILTER)
-70
-60
-50
-40
-30
-20
-10
0
10 100 1000 10000 100000
Frequency in Hertz
Amplitude in dB
Width = 2 octaves;
Center frequency
at C 4, C 7, C 10
C 4
C 10
