Audio Outputs
Using the Separate Outputs
18-2
Using the Separate Outputs
The K2500’s eight separate outputs are arranged in four pairs, A, B, C, and D. These are mono
output jacks, and you’ll normally plug a standard audio cable into one or more of them.
Depending on the OUTPUT page settings you use for a given program’s layers, they can
function as four stereo output pairs, or as eight separate outputs.

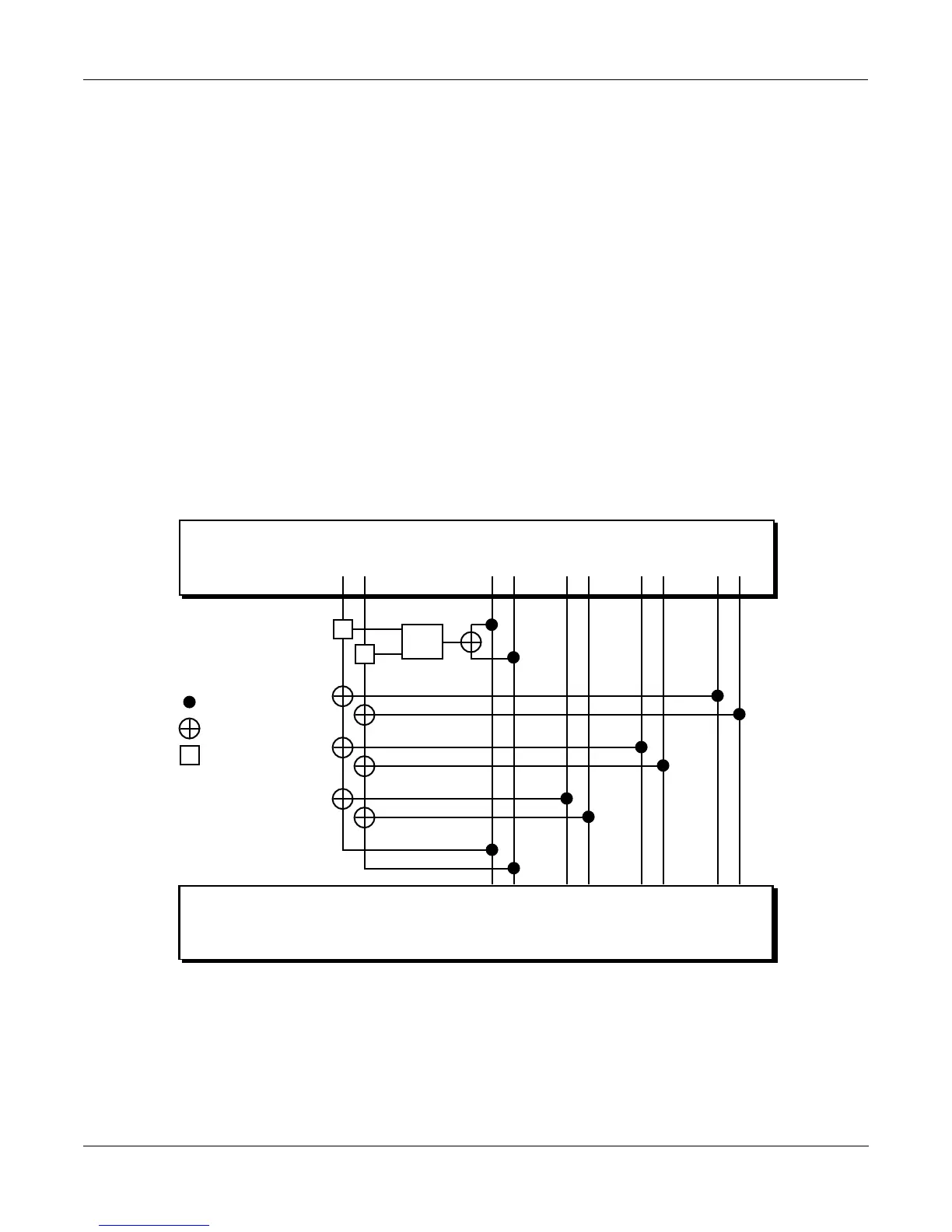

The diagram below illustrates the wiring of the K2500’s audio system. From the sound engine,
the audio signal can be routed to any of the four output groups. If the signal is routed to Output
Group B, C, or D it will appear at the MIX outputs if no audio cables are plugged into those
outputs. Plugging cables into any of the separate outputs will divert the signal from the MIX
outputs to that output.
If the signal is routed to Output Group A, and audio cables are plugged into the A outputs, the
signal will pass directly to the A outputs. If no cables are plugged into the A outputs, the signal
will pass from the sound engine to the global effects processor. The left and right sides are
mixed before passing to the effects processor. The effects processor splits the signal into left and
right sides again after the effects are applied. Effects will be applied to both sides of the signal
unless the Out A->FX parameter is set to L Only, in which case only the left side will have
effects applied. In either case, the signal will pass to the MIX outputs. Remember that the effects
processor isn’t stereo; effects can’t be panned the way dry sounds can.
If a layer’s pan position is centered, then the outputs to which it’s assigned will carry an equal
mix of the layer’s sound in its left and right outputs. This makes the audio outputs a stereo pair
with respect to that layer. If the layer is panned all the way to the left or right, the separate
outputs function as individual monophonic outputs with respect to that layer. Of course, you
could have a multi-layer program with all its layers assigned to the same output group, and
pan each layer so that some of them appear at both outputs, while others appear only at the left
or right output. If you’re using your K2500 for recording and multi-timbral sequencing, you’ll
want to use the separate outputs to increase your mixdown options, and for adding outboard
effects to your sounds. The separate outputs give you a great deal of added flexibility.
FX
Output Groups from Sound Engine
Audio Outputs
*
*
LR LR LR LRLR
MIX A B C D
*
Signal Mix
Wet/Dry Mix
Signal Switch
ABCD
LR LR LR LR
To Next Page
