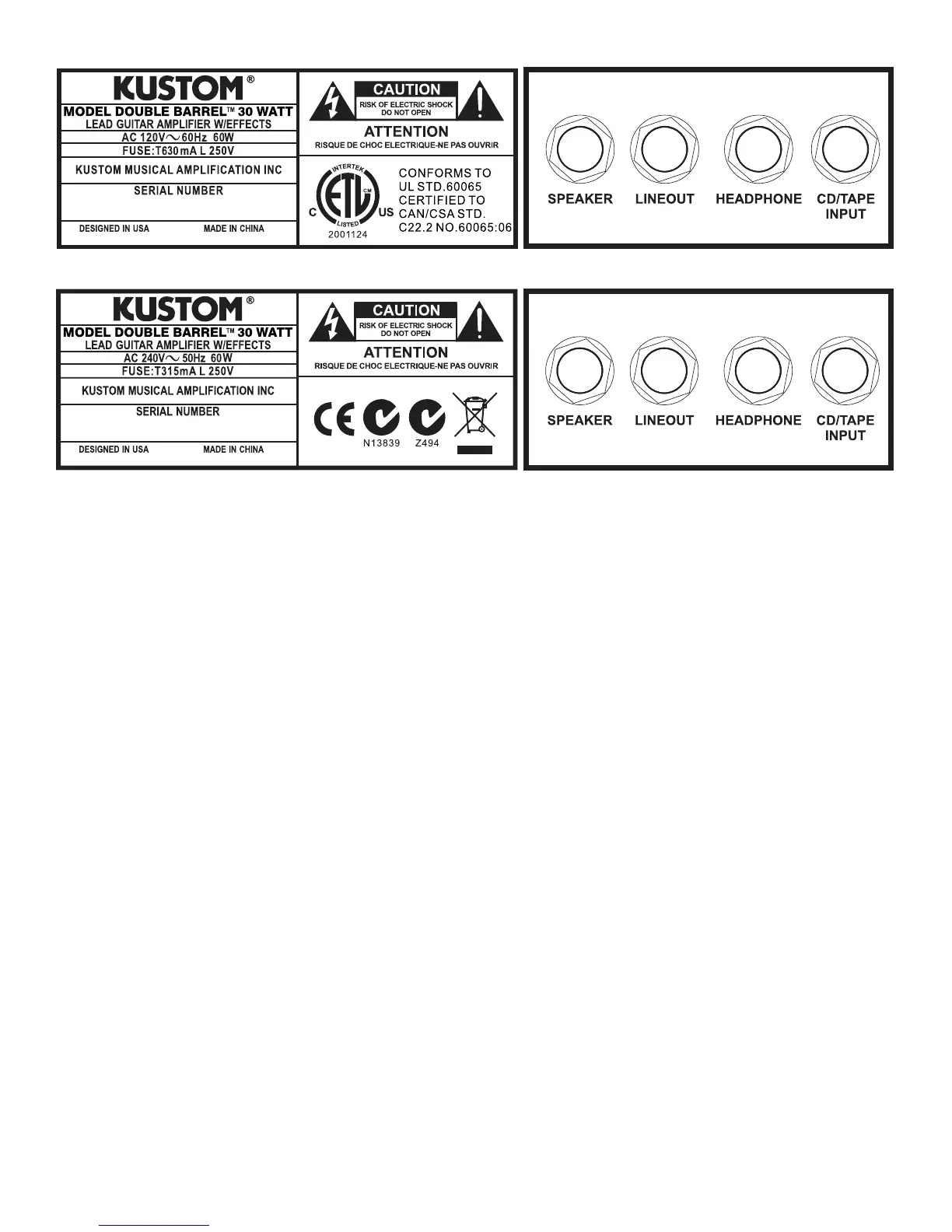

BACK PANEL
Speaker: This output jack is used to deliver the amplied signal to an external speaker. Total minimum load is 8
ohms. Do not use a load lower than 8 ohms; damage to the amplier may result. The amplier’s internal speakers are
disconnected when this jack is used.
Line Out: This is a 2-conductor 1/4” line output jack. This will allow an external amplier or mixing board to be supplied
with the signal from this amp.
Headphone: This is a 3-conductor stereo output jack. The amplier’s internal speakers are disconnected when this jack
is used.
CD/Tape Input: This is a 3-conductor 1/4” jack that allows playback from an auxiliary source, such as a Compact Disc
or Tape player.
Power Cord Receptacle / Fuse Holder: To provide power to the Double Barrel, insert the AC cord (provided) rmly into
the AC connector. Replace the AC power cord if protective jacket is damaged or ground pin is damaged or removed.
Replacing the Fuse: The fuse is located in a housing just below the AC receptacle. To remove the fuse, remove AC
cord and pull out on the tab above the fuse symbol, located on the fuse carriage. Place the new fuse in the carriage clip
and re-insert. Replace only with the same type and size. Note: To prevent an electrical hazard, DO NOT replace fuse
without using the fuse carriage. Replace the fuse carriage if lost or damaged before re-inserting the AC power cord.
