Kustom PA40BAT - Page 9

1
GAIN
volume
MAIN BUS
LINE 1/4"
low
high
2
GAIN
volume
MIC XLR LINE 1/4"
low
high
Phantom Power 9V
CHANNELS
MASTER
Conditioning
LINKING BUS
IN OUT
SYNC
MASTER
+ _ + _
+ _
SPEAKERS
POWER AMPs
SPEAKER
HORN
Crossover
T R S CN CS
AUX 1/8"

BLUETOOTH  

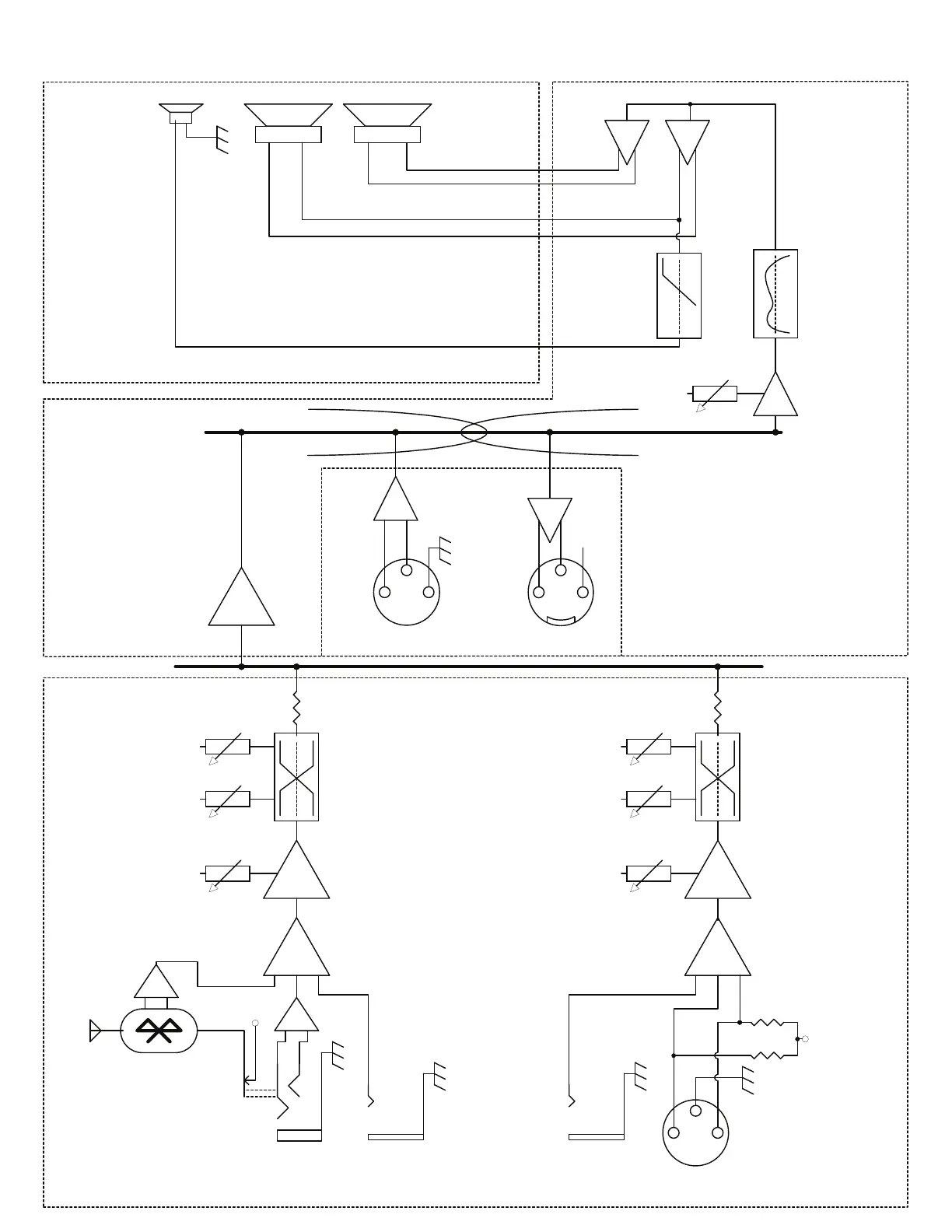

PA40BAT & PA40BATBT SIGNAL FLOW DIAGRAM
