To rotate or readjust cartridge:
4. Slightly loosen the screws which attach the cartridge to the headshell.
5. Holding headshell in one hand slightly rotate the body of the cartridge.
6. Recheck alignment at position A and continue adjustment until line described in point 3 is
achieved.
7. Alignment at zero point 121 mm (B):
Reposition protractor and check alignment at position B.

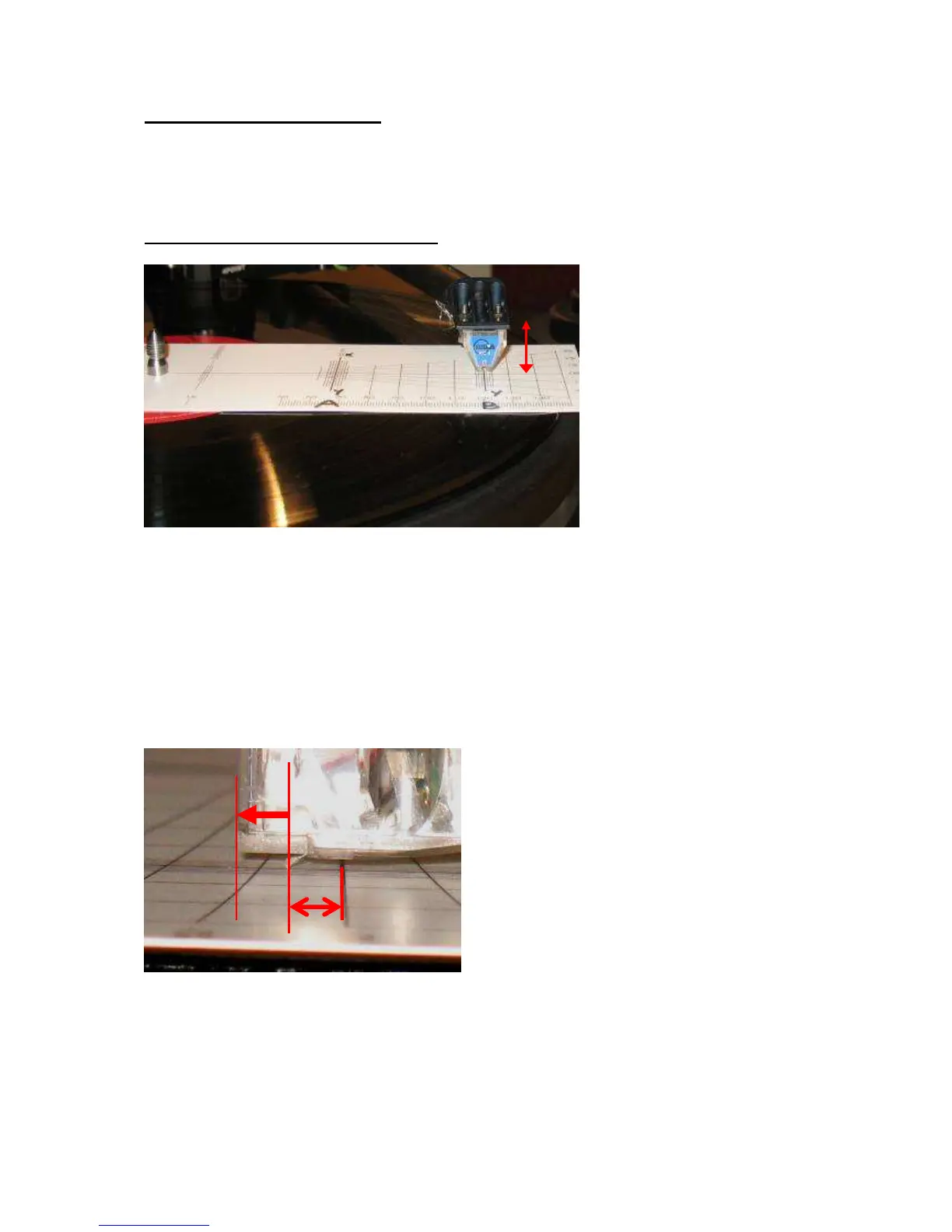

Fig. 15 Alignment at B
8. If the cantilever is not in alignment then rotate protractor until it is in alignment somewhere
along the line “x-y” though stylus will probably not be at zero point B. Raise the cueing
device a bit for better viewing. (Fig.15)
9. If stylus is in front of point B, pull the cartridge forward (along side) in the slots of the
headshell for approximately the same distance “S” as stylus is overhanging zero point B. If it
is behind point B, push cartridge backwards towards the pivots of the tonearm for distance
“S” (Fig. 16)
Fig.16 Stylus tip is in front of zero point B.
“S”
B
