TracPhone Antenna Systems
2
Addendum
54-1339 Rev. A
Updated LMR-600 Connectors
The Times Microwave EZ-600-FMH-75 connectors, used
to terminate LMR-600 cables as described in your antenna
installation manual, have been replaced with the new
functionally identical EZ-600-FM-75 connectors. The new
connector version no longer requires that you trim the
braid prior to securing the ferrule. Simply slide the ferrule
over the braid, as you would have previously, to crimp the
braid beneath the ferrule (see Figure 5).

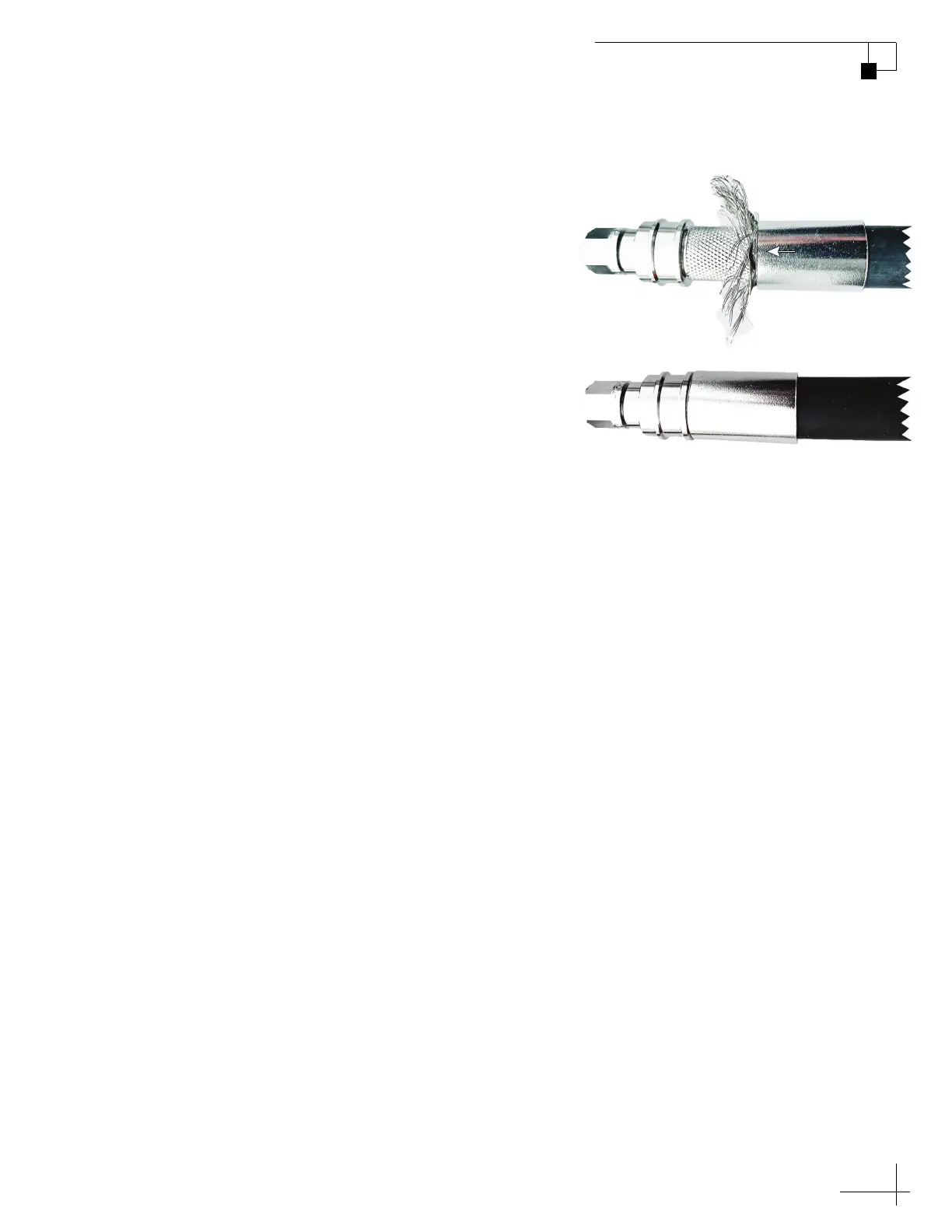

Figure 5: New LMR-600-FM-75 “No Trim” Connector
The braid is crimped
beneath the ferrule.
Slide the ferrule
over the braid.
1.
2.
