17
Connecting 9-16 SWM Receivers (or Tuners)
To connect more than 8 tuners, first follow the
steps for 2-8 tuners, as explained on the previous
page. Then install an external SWM-8 kit (KVH
part no. 72-0678). Connect the kit to the “Legacy”
jacks on the TV-Hub then connect the SWM
devices, as shown in Figure 26.

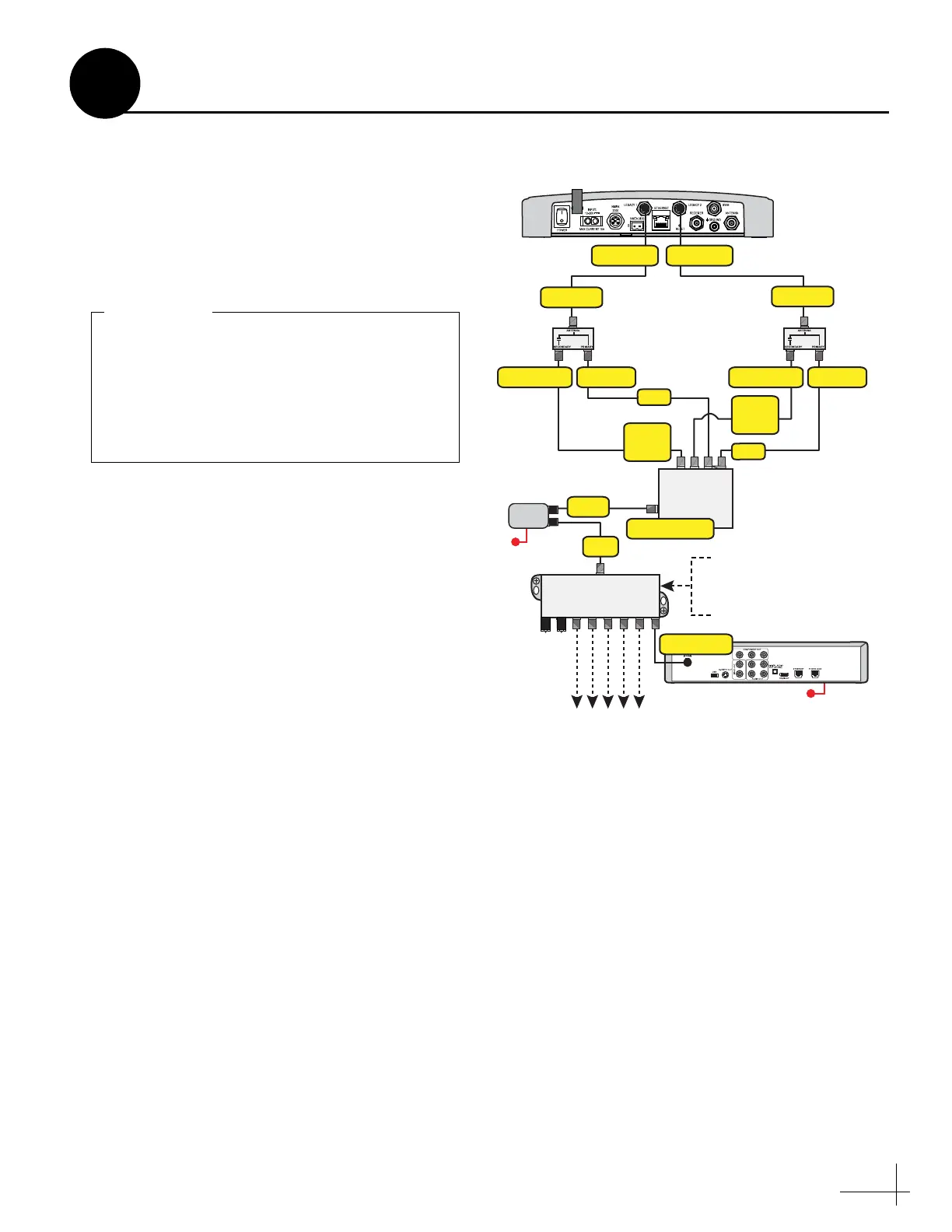

Figure 26: Wiring a DIRECTV External SWM-8 Kit
TV-Hub
Antenna
Antenna
AC Power
SWM
18V
13V
18V/
22
KHz
13V/
22
KHz
DC Block
Splitter
DC Block
Splitter
Secondary Primary Secondary Primary
SWM Power
Inserter
SWM-8
Module
SWM1/PWR
AC Power
SWM Receiver/DVR
Satellite In
Connect any combination of SWM receivers/DVRs
that add up to 8 or fewer tuners at the SWM splitter
SWM Splitter
Terminate
unused
outputs
Supports up to 8 tuners:
Each SWM receiver = 1 tuner
Each SWM DVR = 2 tuners
IRD
Legacy 2
Legacy 1
If you need to receive local channels on the
119W satellite, and you want the antenna to
automatically switch between the 101W and
119W satellites, you need to use the DIRECTV
coax network. See Appendix B on page 38 for
details.
IMPORTANT!
Continued Wire the Receivers
11
To Next Page
