Operations and Maintenance Manual 1-9
KWIK-WALL Company Operable Wall Systems

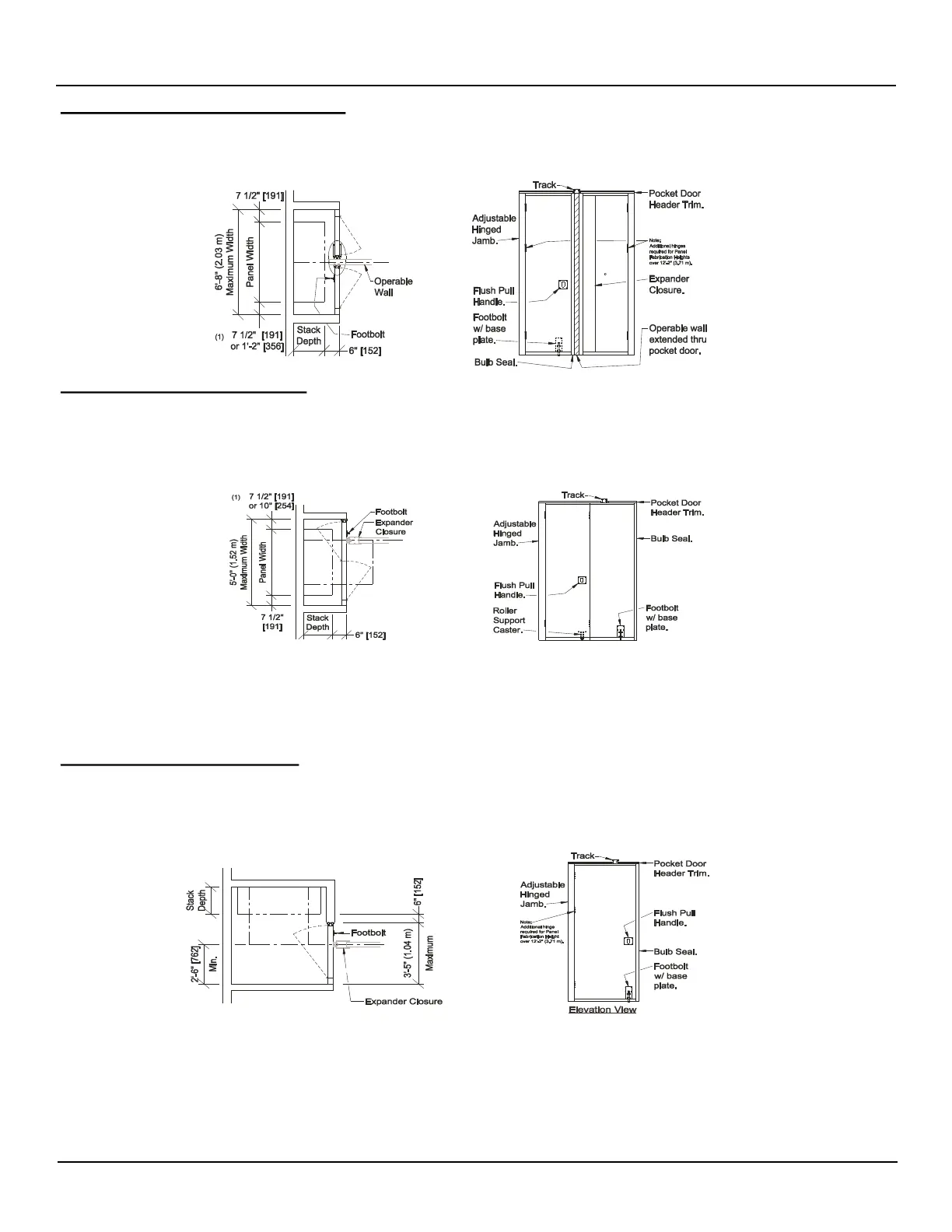

Double Pocket Door with Expander
For wall systems that specify the last panel to continue through the Pocket Doors, a Side Expander
mechanism will be used and is activated by a removable wrench.
Bi-Fold Pocket Door with Bulb
For wall systems that specify the last panel to extend to the face of the pocket doors, a pocket door panel is
mounted to one side of the pocket wall. The lead edge on one of the panels contains a double bulb seal.
1. Once the last panel is out of the stack area, close the pocket doors and engage the foot bolts.
2. Then set up the last panel and expand the final closure mechanism against the face of the pocket door
panels.
Single Pocket Door with Bulb
For wall systems that specify the last panel to extend to the face of the pocket doors, a pocket door panel is
mounted to one side of the pocket wall. The lead edge on one of the panels contains a double bulb seal.
1. Once the last panel is out of the stack area, close the pocket doors and engage the foot bolts.
2. Then set up the last panel and expand the final closure mechanism against the face of the pocket
door panels.
