Kyocera Mita DC-2560 - Feedshift and Duplex Sections (Optional); 1 ) Detaching and Refitting the Duplex Forwarding Pulley

3-3-116
1AH
3-3-13 Feedshift and duplex sections (optional)
( 1 ) Detaching and refitting the duplex forwarding pulley
Clean or replace the duplex forwarding pulley as follows.
Procedure
1. Remove the stop ring and duplex forwarding pulley.
2. Refit all the removed parts.

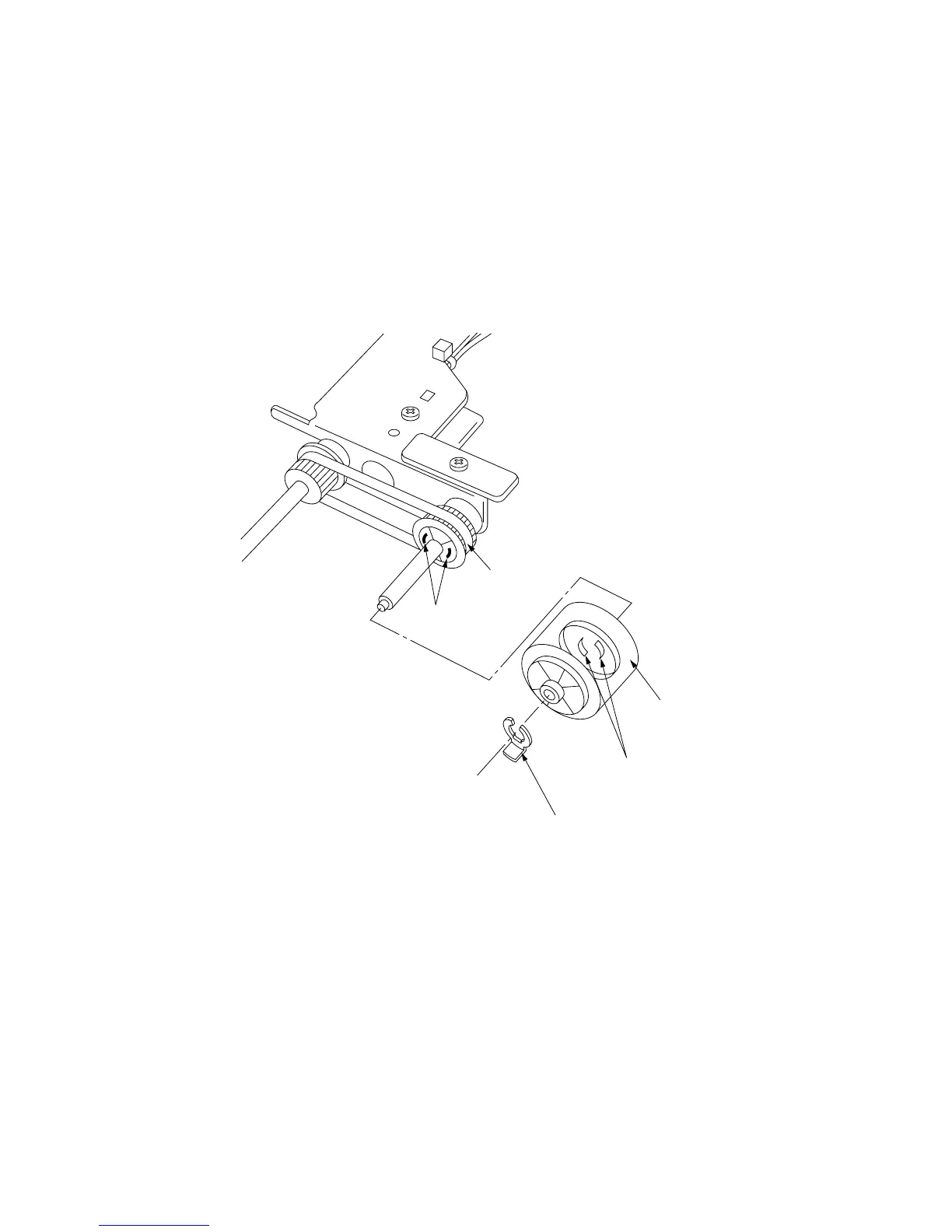

* When refitting the duplex forwarding pulley, align the projections of the duplex
forwarding pulley with the slots in the leading edge pulley.
Slots
Leading edge
pulley
Stop ring
Projections
Duplex
forwarding
pulley
Figure 3-3-114
