3-65
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
63

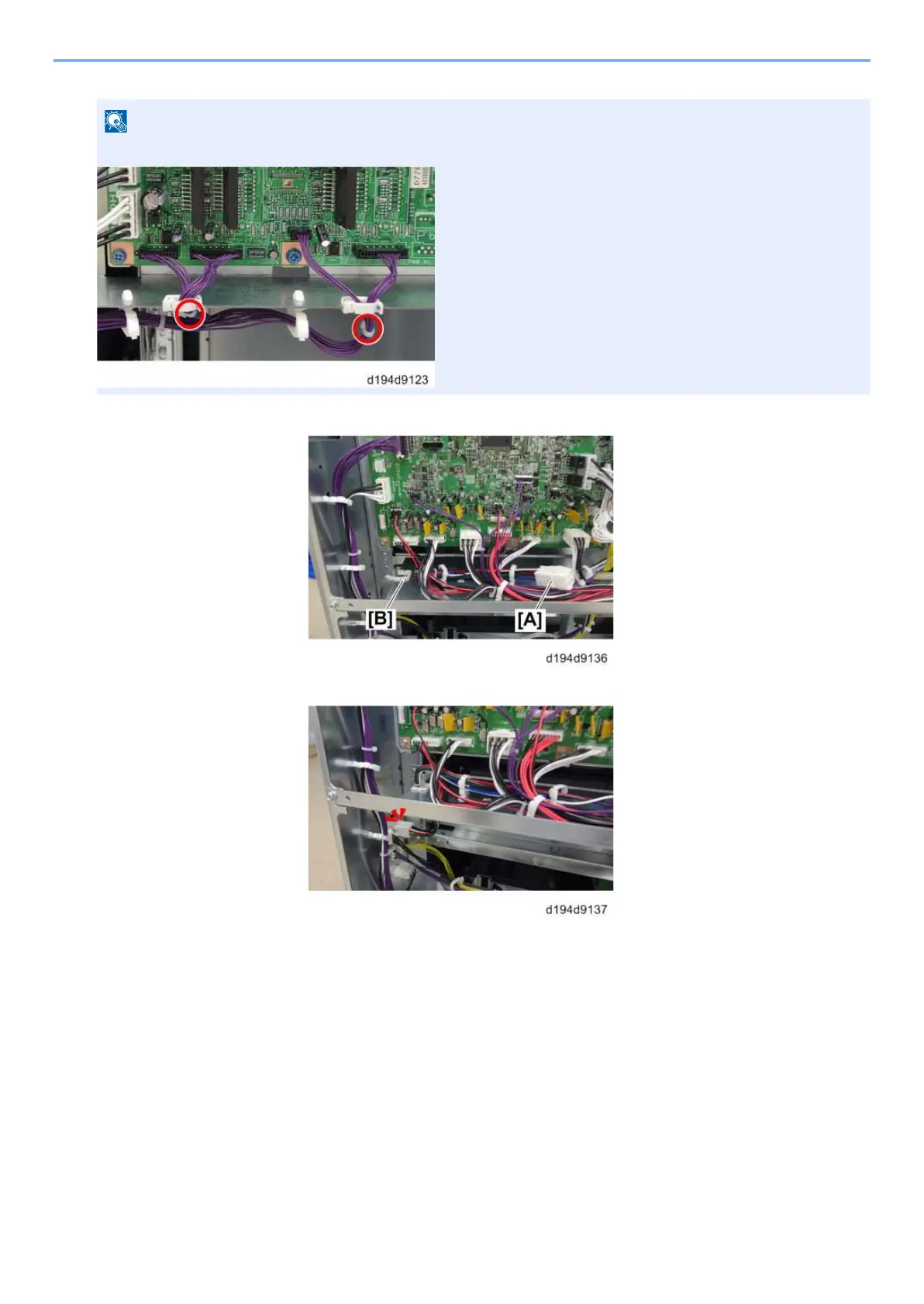

Pull away the harness [A]. Attach the edge saddle [B] provided with this option.
64
Insert the connector into the relay connector in the frame through the clamp.
NOTE
• The binds of the interface harnesses have to be below the edge saddle.
