Kyocera PH-7A - Output (3-2);Output (3-3);Output (3-4)

3-127
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]

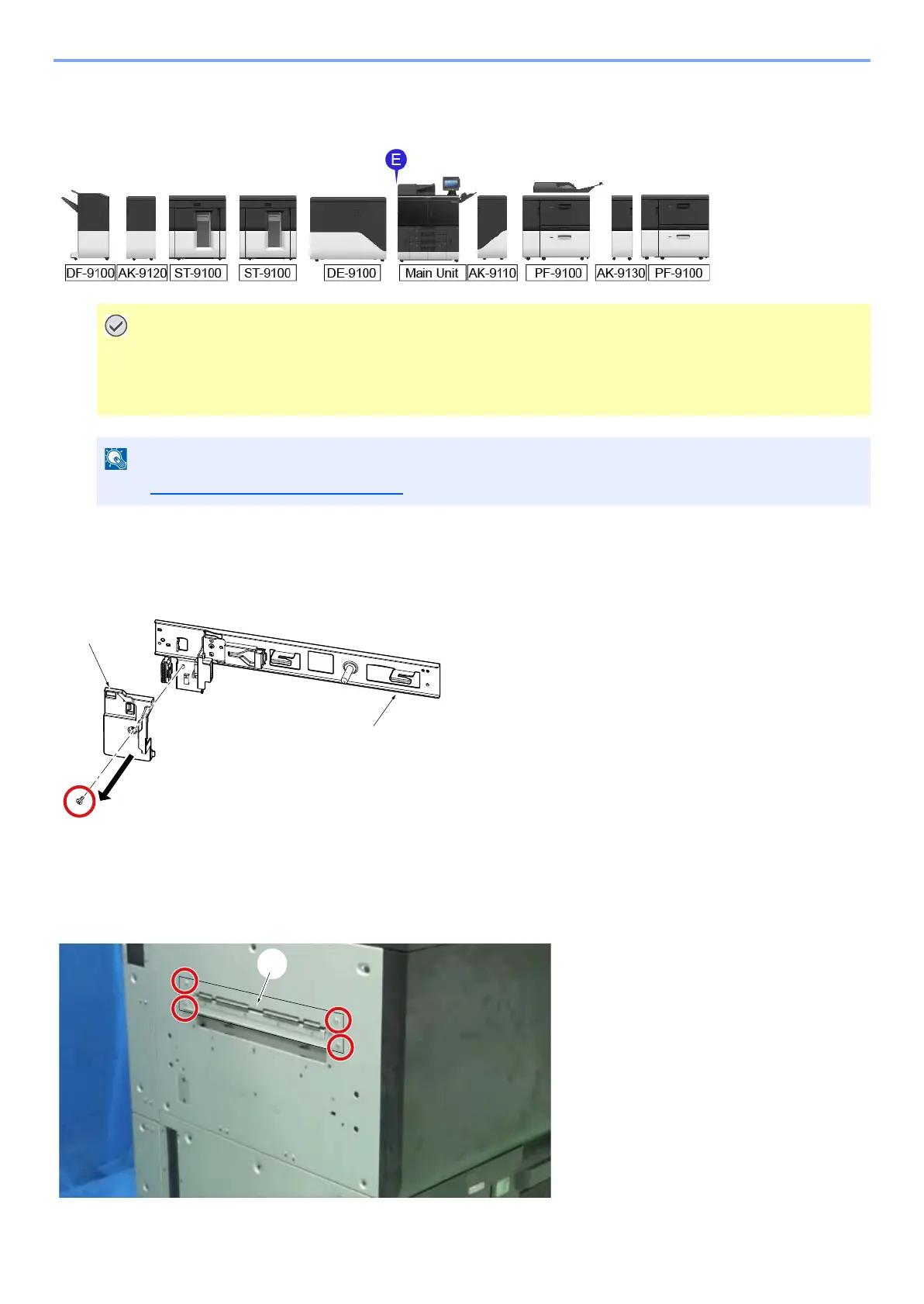

(3-2) Output (3-2)/Output (3-3)/Output (3-4)
<E> Main Unit and Decurler Unit (DE-9100)
Preparation for main unit
1
Remove the connect cover [B] from connecting plate [A] (Screw x1). The connect
cover [B] and the screw will use in step 6.
2
Attach exit guide [A] (Screw x4: M4x8).
IMPORTANT
• All tapes and packing materials on the accessories parts have to be removed.
• Main power switch has to be turned off and power cable has to be unplugged before install Inverter and
Decurler Unit (DE-9100).
NOTE
• See Inverter and Decurler Unit (DE-9100) for unpacking.
[A]
[B]
[A]
