3-206
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
22

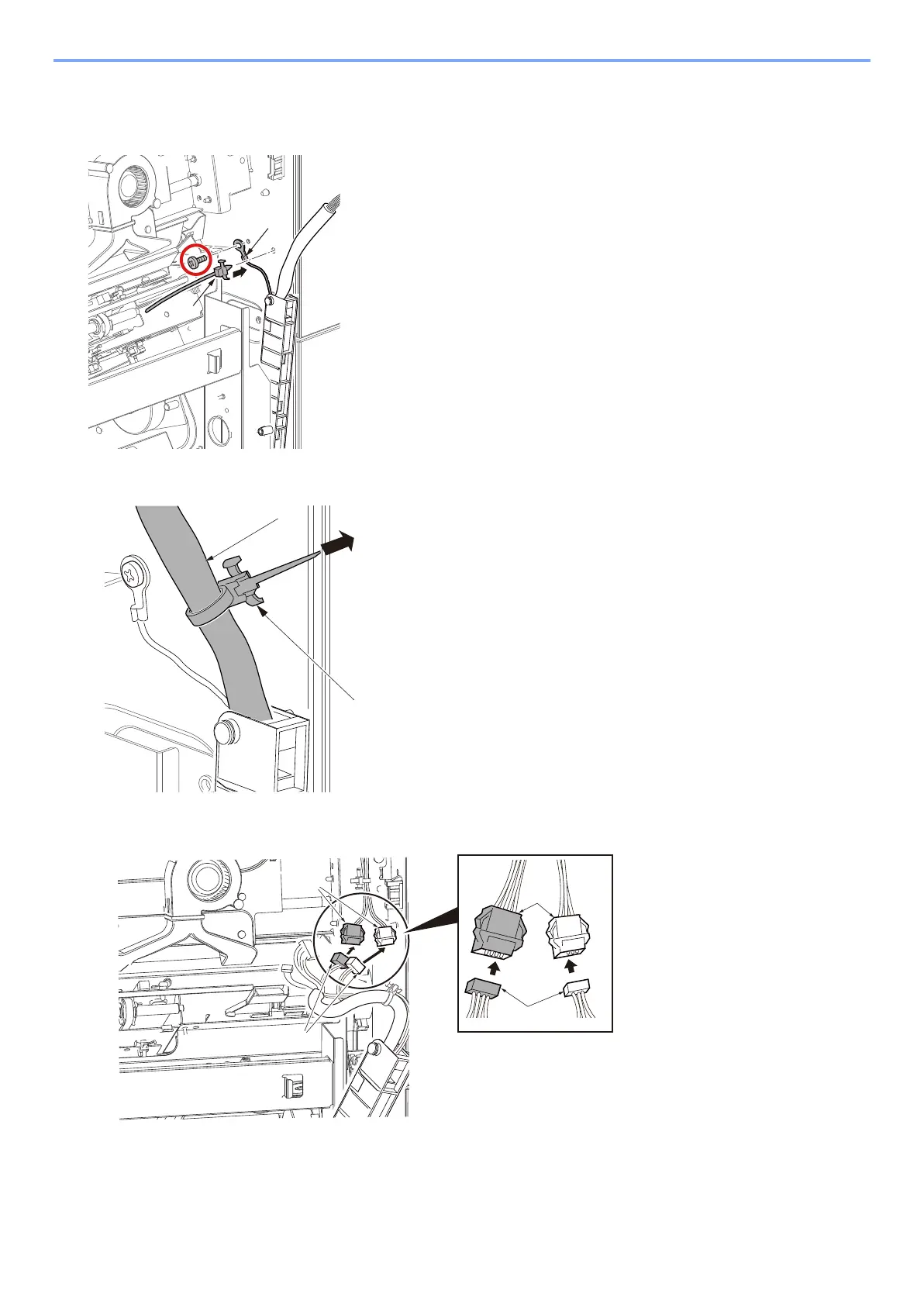

Secure the ground line [A] to the frame (Screw x1: M4x8). Put the band [B] to the
frame.
23
Fasten the wire [A] with the band [B].
24
Connect 2 connectors [A] to connector [B].
[A]
[B]
[B]
[A]
[A]
[A]
[B]
[B]
