COMPONENT MAINTENANCE MANUAL
AVIATION RECORDERS
FA2100CVR
Rev. 15 Page 14
Apr. 14/16
Description and Operation
23–70–04
Use or disclosure of information on this sheet is subject
to the restrictions on the cover page of this document.
120 minutes
120 minutes
120 minutes
P/N 2100-1X25/1X26/1X27-XX and 1200-1X20-XX (MOD-DOT #7)

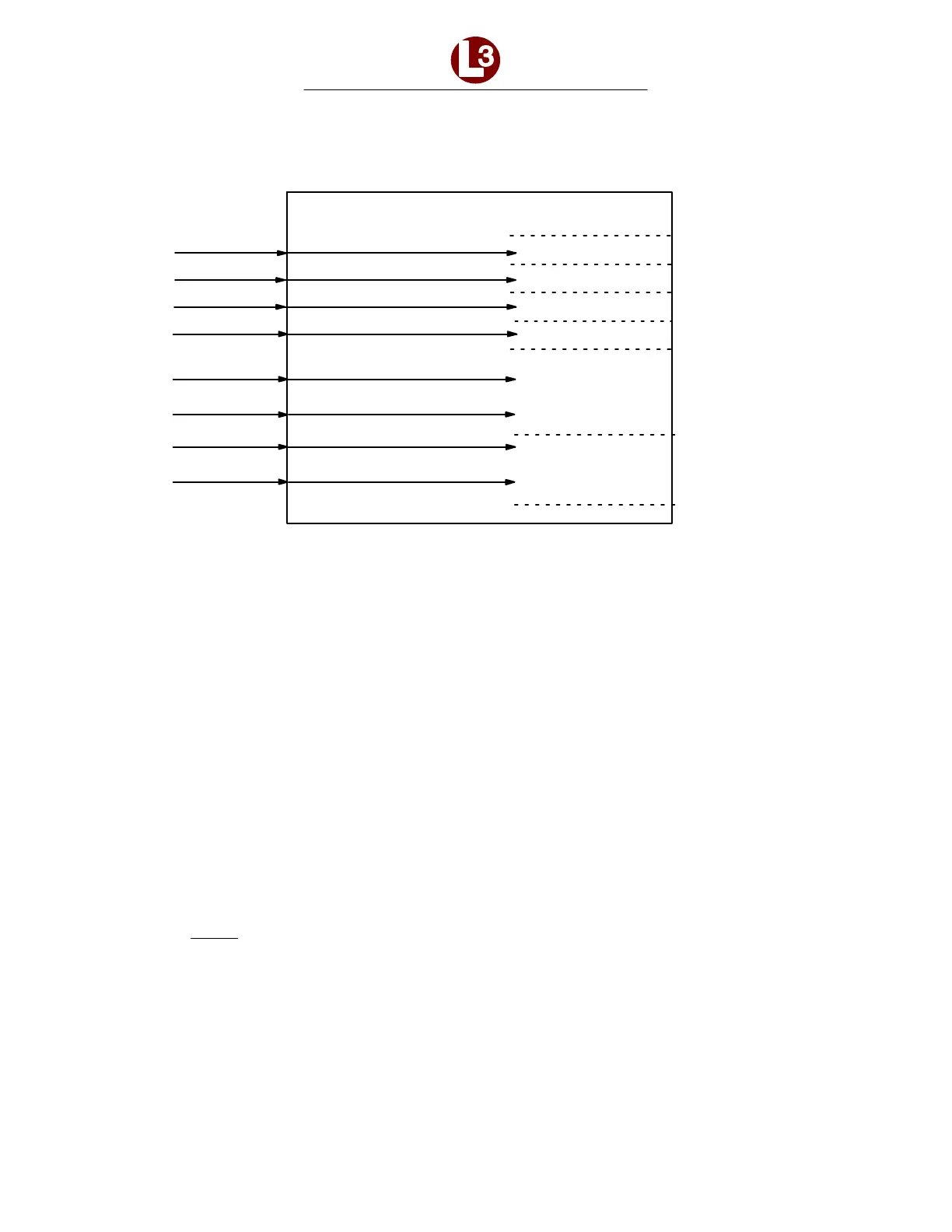

120‐Minute Recording Scheme
Legend:
CAM – Cockpit Area Microphone
CH – Channel
HQ – High Quality
OMS − On board Maintenance System*
* P/N 2100−1025/1026−XX only
FA2100 CVR
Data Link
120 minutes
429 GMT
Time Code
Rotor Speed
120 minutes
GMT
(2 Wds per 1 Sec.)
120 minutes
RSE
(2 Wds per 1/2 Sec)
120 minutes
Pilot Audio
CH3
3rd Crew Member/
Spare Audio
CH1
Cockpit Area Mic
(CAM) Audio CH 4
Co‐Pilot Audio
CH2
Low Speed
ARINC 429 GMT
(12.5 kbps)
RSE
(7‐6000 Hz)
CH 1 (HQV)
(150‐3500 Hz)
CH 2 (HQV)
(150‐3500 Hz)
CH 3 (HQV)
(150‐3500 Hz)
CH 4 (HQC)
(150‐6000 Hz)
(CSMU)
FLASH MEMORY
CH 1 (24 kbps)
CH 2 (24 kbps)
CH 3 (24 kbps)
CH 4 (48 kbps)
OMS*
Data Link*
OMS
120 minutes
Figure 5. (Sheet 2 of 2)
Model FA2100 CVR, 30-Minute and 120-Minute Recording Schemes
(1) Output Audio Quality
The FA2100CVR’s audio quality meets or exceeds the audio quality specified in
Chapter 3 of ED–56A and Part I of ED−112. Specifically, the Reference Signal is
1-kHz at 3 Vrms for the voice channels, and 1-kHz at 2 Vrms for the CAM channel.
The signal-to-noise plus distortion ratio (SINAD) of this signal when reproduced ex-
ceeds 24 dB (6 percent distortion) for the most recent 30 minutes of recording and
exceeds 20 dB (10 percent distortion) otherwise.
NOTE
: Refer to Table 3.1 of ED–56A and I−3.1 of ED−112 for other
applicable audio quality specifications including the
Speech Transmission Index requirement for various chan-
nels and segments of recording.
