LA Audio PRO-2 - Rear Panel Connections; Rear Panel Input;Output Ports

2

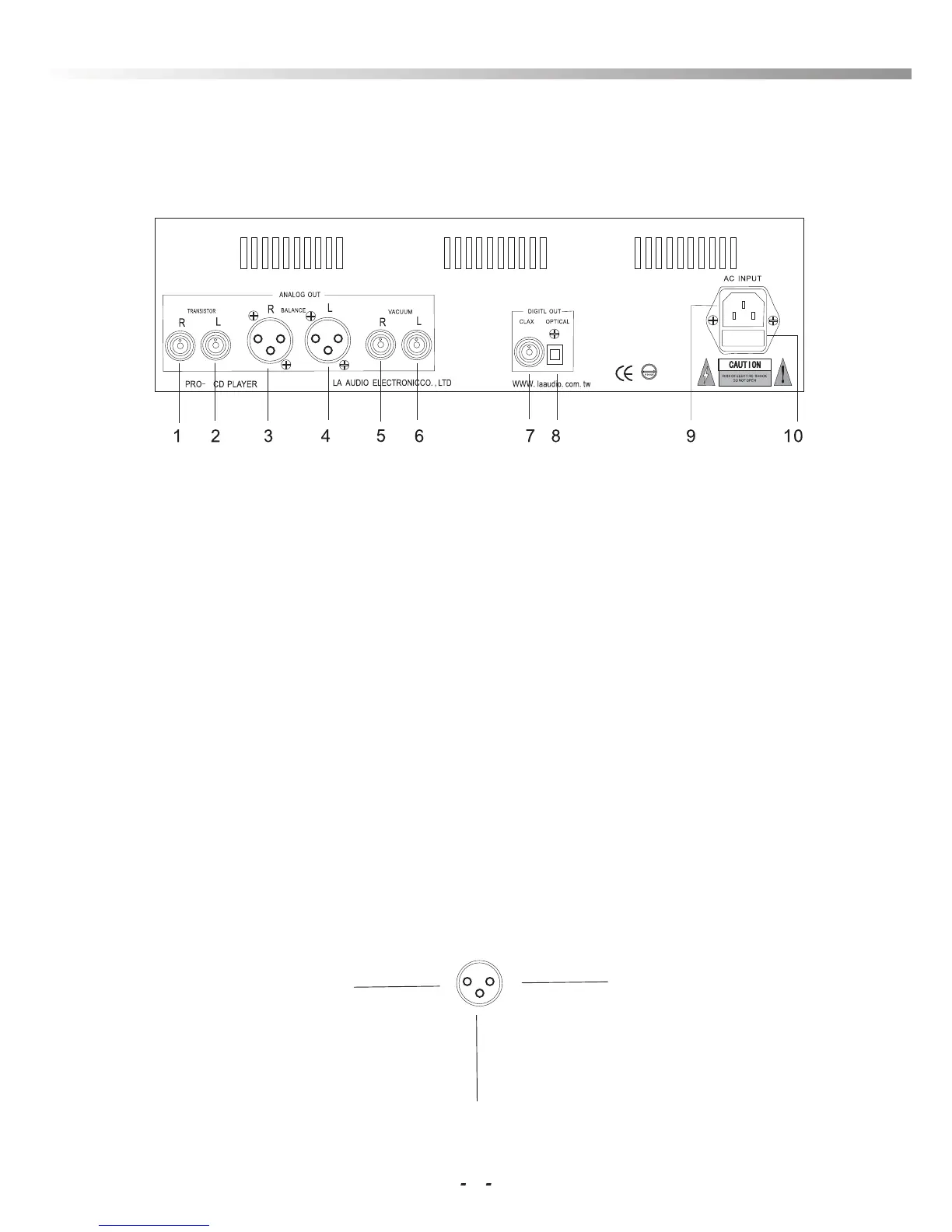

6.Rear panel function schematic
1. left sound track output terminal jack
2. right sound track output terminal jack
3.XLR the balance -like right sound track output plug
4.XLR balance -like left sound track output plug
5. vacuum tubes enlarge the right sound track output terminal jack
6. vacuum tubes to enlarge the left sound track output terminal jack
7. replacement coaxial output terminal jack
8. replacement light output terminal jack
9. alternating current input end plug
10. fuse sockets (time replacement toward the outside extracts)
5
L A
Audio
Balance the foot place that style
The negative pole
The positive pole
The ground pole
L A
Audio
CD PLAYER
