3.2.1. Rear Mounting
Two rear support brackets along with associated mounting hardware are included with the PLM+, as shown in
Figure 3.1; it is recommended that these are used wherever possible. Fit the brackets to the vertical rails at the rear
of the rack. Figure 3.2 and Figure 3.3 show the tting options for xed and removable installation.
The support brackets are reversible and may be tted to point either to the front or rear of the rack; the orientation
used depends on the rack depth and position of the rear rack rails.
Two mounting methods are possible; note that the method shown in Figure 3.2 additionally provides extra security
against unauthorized removal. For situations where rapid removal and replacement is required, the method shown
in Figure 3.3 should be used.

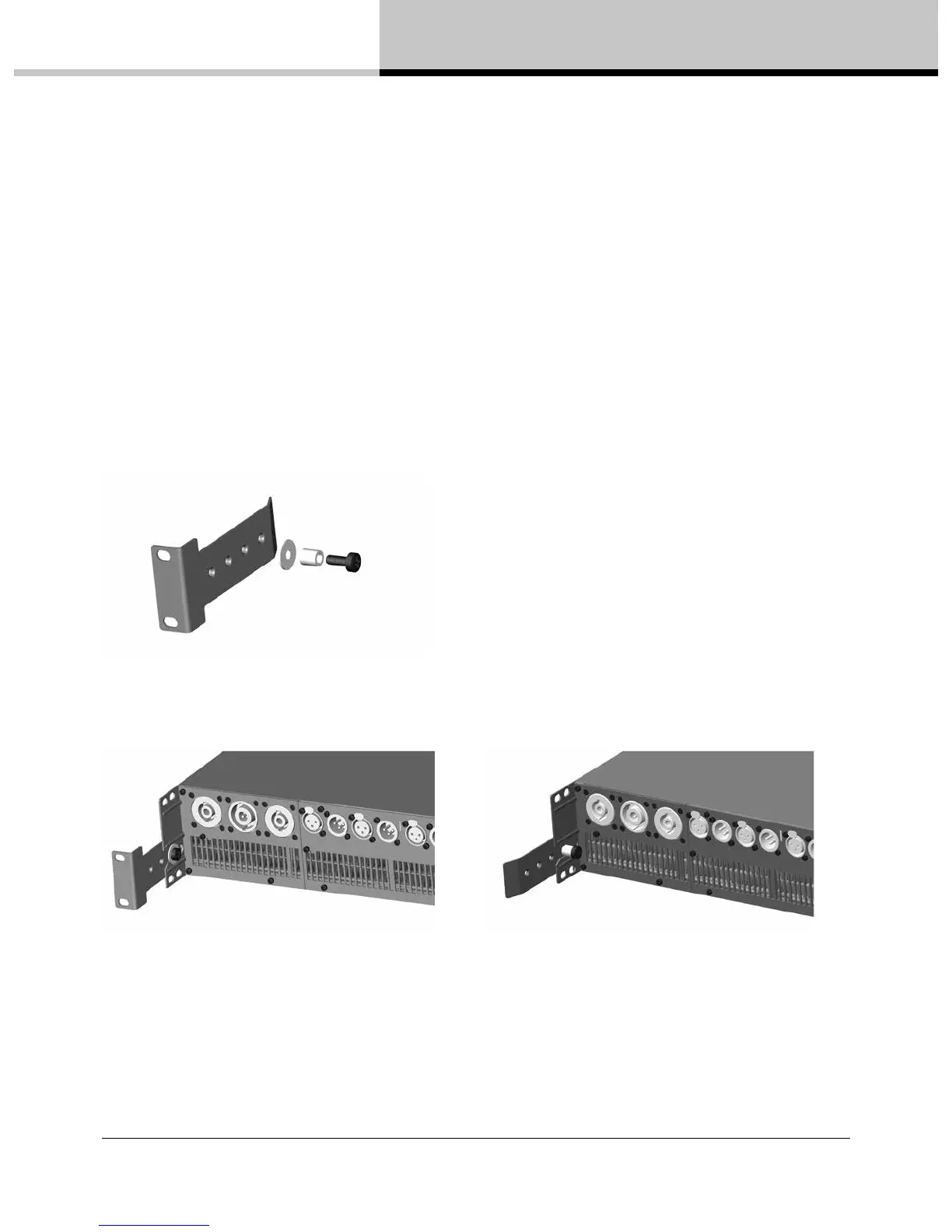

Fig 3.1: Rear support bracket with mounting hardware
Fig 3.2: Rear support bracket mounted for Fig 3.3: Rear support bracket mounted for
xed installation and bracket pointing forward removable installation and bracket pointing back
