Chapter 6: Maintaining Your Filtered Enclosure
4. Remove four screws in the motor bracket that hold motor
bracket to the supports with the vibration isolation mounts.
Remove the motor and bracket.
WARNING: High-speed blower. Never operate
impeller with housing off.
5. Replace the capacitor with a new one of equal voltage and
capacity.
6. Reassemble the new motorized impeller by reversing the
assembly steps.

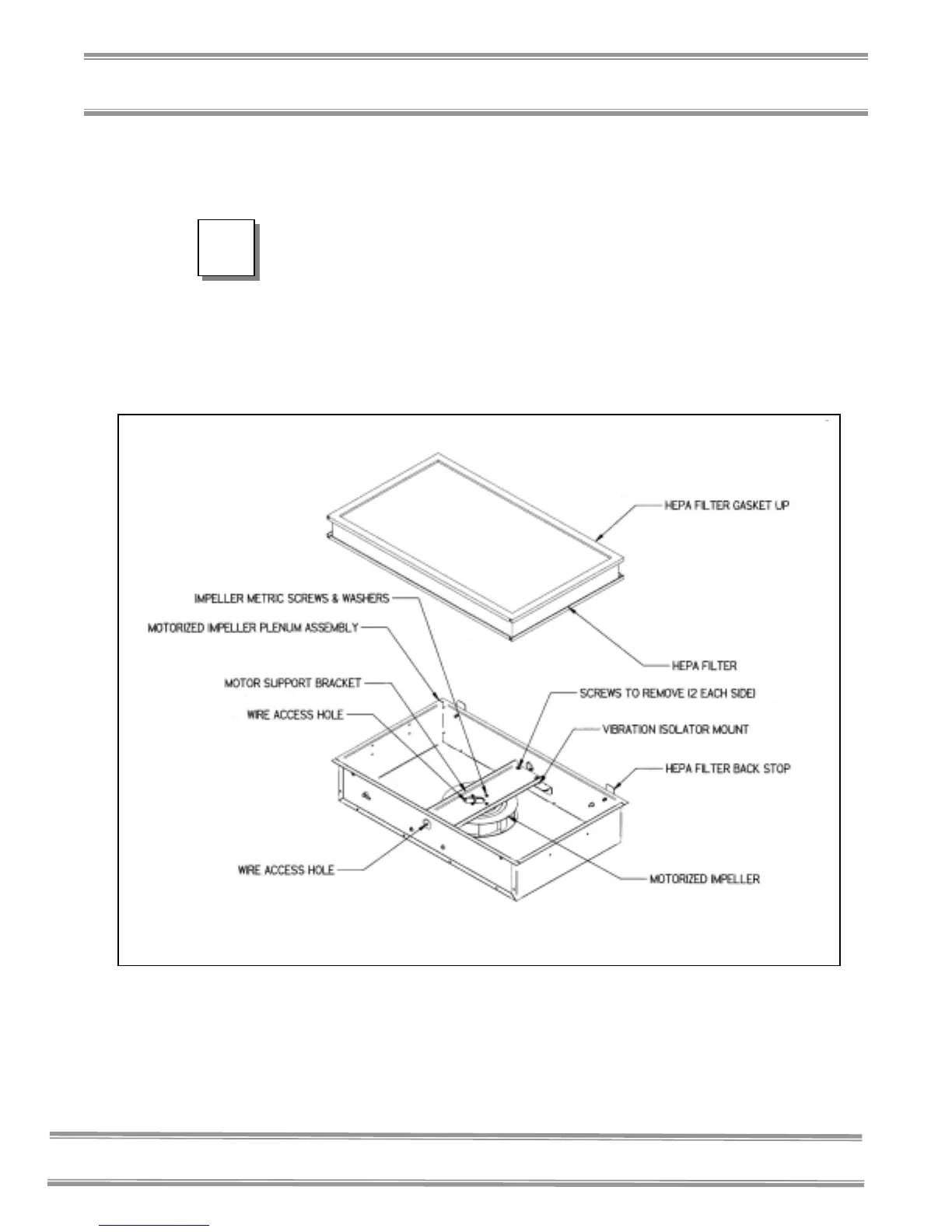

Figure 6-3
Motorized Impeller Replacement
!
