Chapter 3: Getting Started
Product Service 1-800-522-7658
16

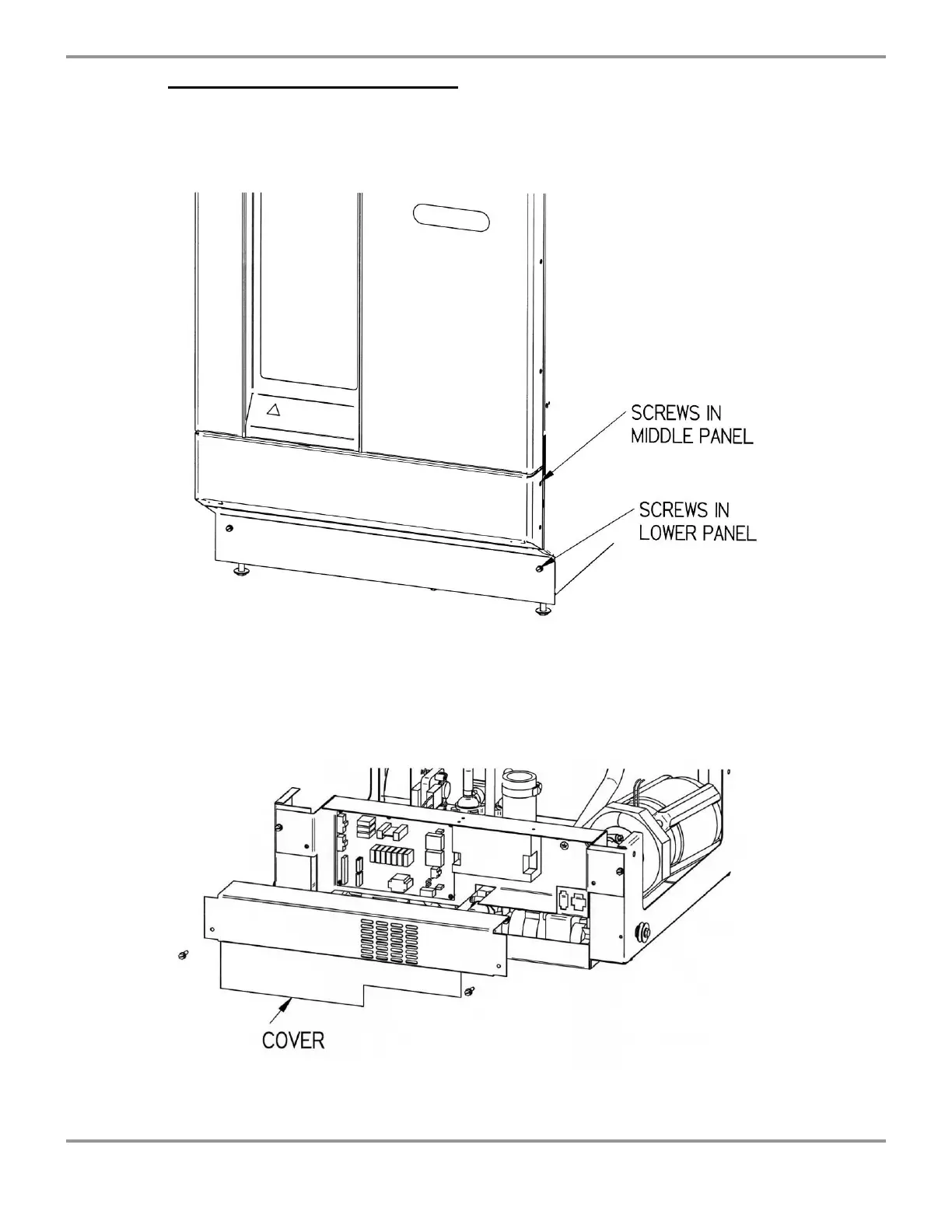

To connect the electrical supply:
1. Remove the lower panel on the washer front by removing the two screws
located at the bottom of the panel.
2. Remove 2 screws on each side of the middle panel.
3. Pull the middle panel forward and remove it.
4. Remove the cover over the electrical junction box by removing the two
screws.
