Chapter 6: Modifying Your Washer
Product Service 1-800-522-7658
42

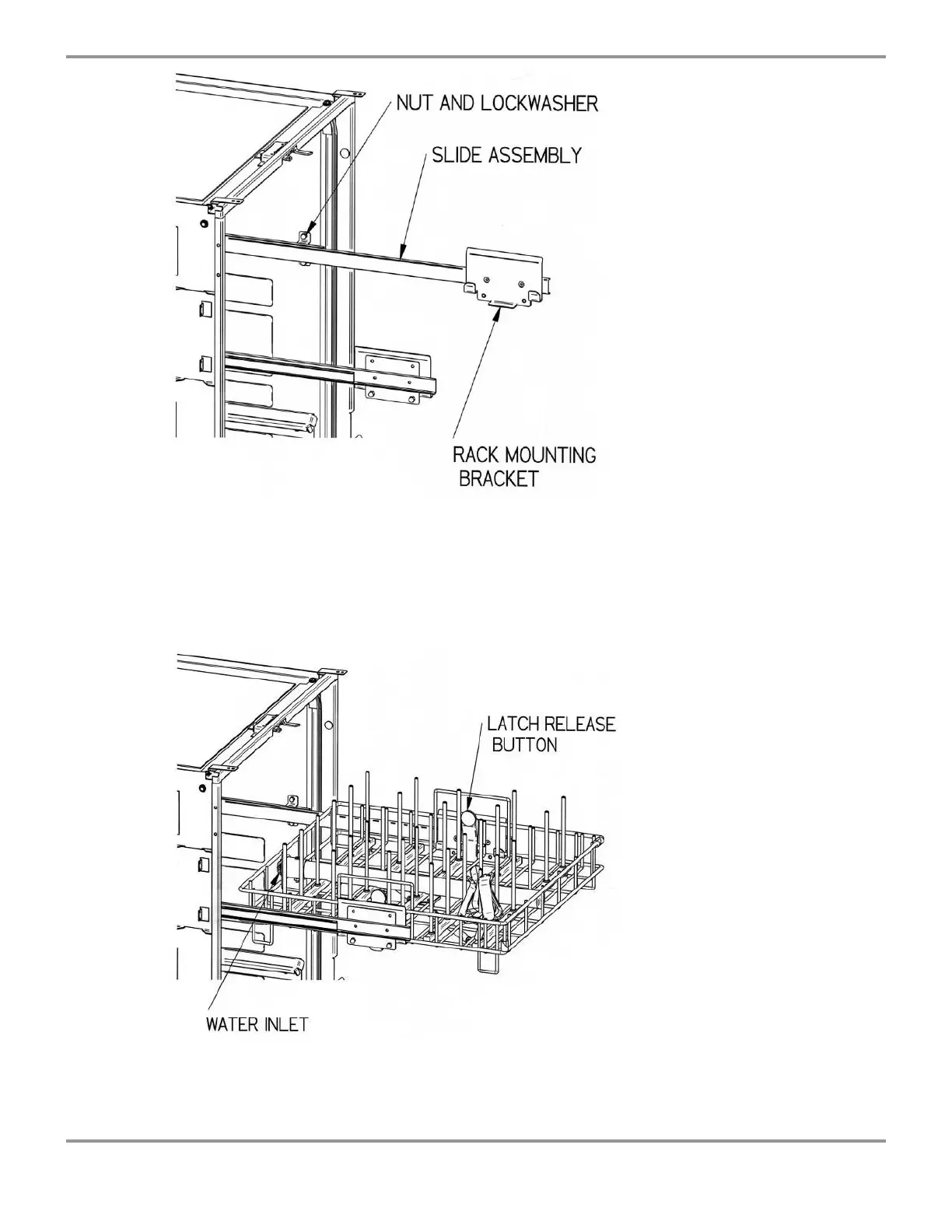

2. Position brackets on slides over the studs on the sides. The position of the
rack mounting plates must be fully extended as shown. Secure the slide
assemblies using lockwashers and acorn nuts removed in Step 1. It may be
necessary to synchronize the travel of the two slides. Pull each slide out
firmly to their maximum travel.
3. Install the Upper Spindle Rack by lowering the rack onto the rack mounting
plates. The water inlet must have its inlet toward the rear. Make sure the
latch on each side secures the rack to the rack mounting plate.
